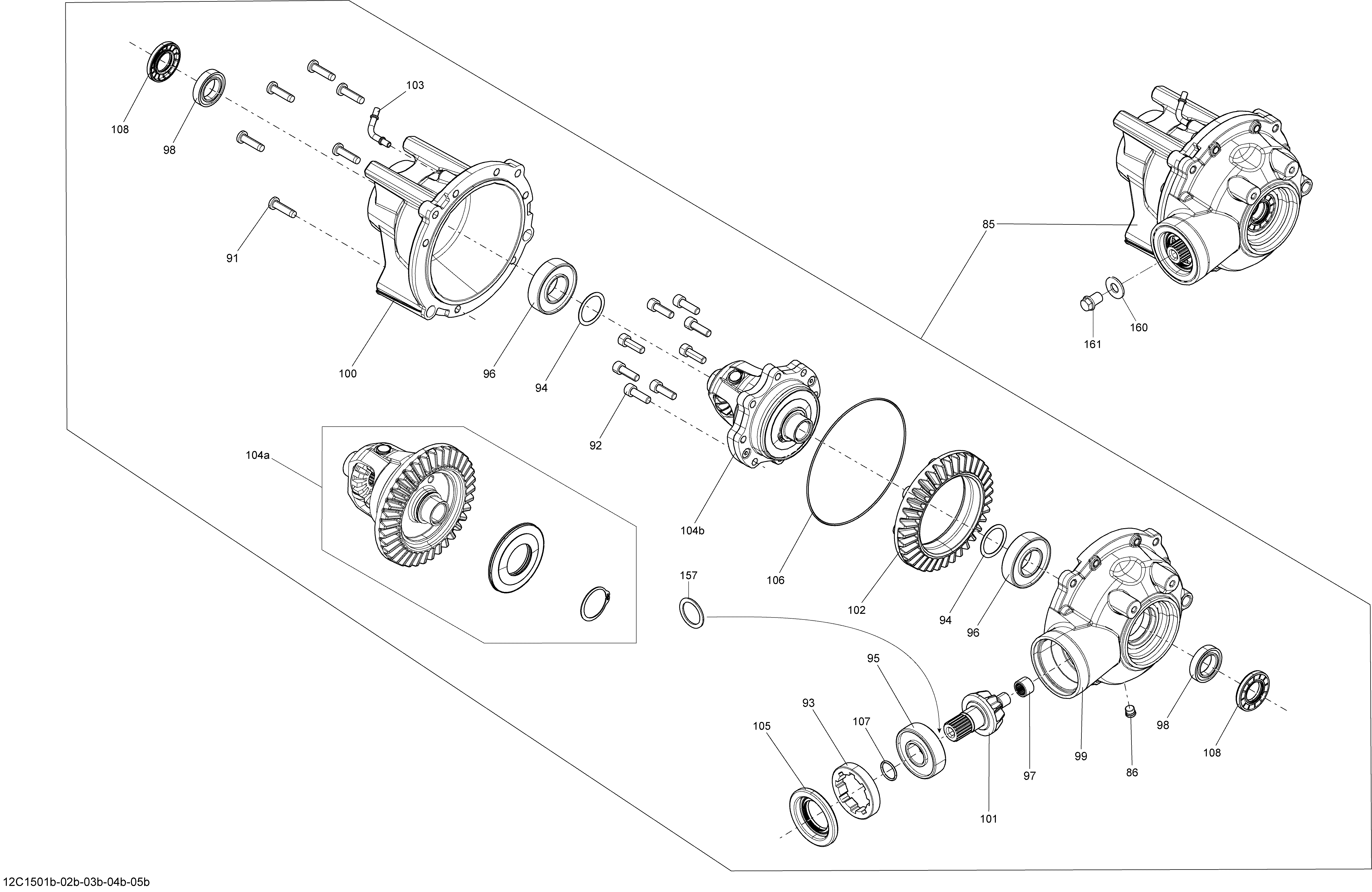

07- Drive System, Front _Differential_12C1504b для BRP Commander MAX 1000_DPS_XT - 2015
-
№АртикулНазвание
-
85705401488 Front Differential Ass'y. Package-DPS, XT. May 29, 2014 And BeforeFront Differential Ass'y. Package-DPS, XT. May 29, 2014 And Before
-
85705401511 Front Differential Ass'y. Package-DPS, XT. May 30, 2014 And AfterFront Differential Ass'y. Package-DPS, XT. May 30, 2014 And After
-
86705500894 Drain Plug. May 29, 2014 And BeforeDrain Plug. May 29, 2014 And Before
-
86705501885 Drain Plug. May 30, 2014 And AfterDrain Plug. May 30, 2014 And After
-
91705500892 Screw. May 29, 2014 And BeforeScrew. May 29, 2014 And Before
-
91705401601 Screw. May 30, 2014 And AfterScrew. May 30, 2014 And After
-
92705401602 Screw. May 30, 2014 And AfterScrew. May 30, 2014 And After
-
93705400661 Nut. May 29, 2014 And BeforeNut. May 29, 2014 And Before
-
93705401603 Nut. May 30, 2014 And AfterNut. May 30, 2014 And After
-
94703500288 Differential Shim Spool Kit. May 29, 2014 And BeforeDifferential Shim Spool Kit. May 29, 2014 And Before
-
94703500050 Differential Shim Spool Kit. May 29, 2014 And BeforeDifferential Shim Spool Kit. May 29, 2014 And Before
-
94705401604 Shim. May 30, 2014 And AfterShim. May 30, 2014 And After
-
95705500260 Ball Bearing. May 29, 2014 And BeforeBall Bearing. May 29, 2014 And Before
-
95705401605 Ball Bearing. May 30, 2014 And AfterBall Bearing. May 30, 2014 And After
-
96705500259 Ball Bearing. May 29, 2014 And BeforeBall Bearing. May 29, 2014 And Before
-
96705401606 Ball Bearing. May 30, 2014 And AfterBall Bearing. May 30, 2014 And After
-
97705500261 Needle Bearing. May 29, 2014 And BeforeNeedle Bearing. May 29, 2014 And Before
-
97705401607 Needle Bearing. May 30, 2014 And AfterNeedle Bearing. May 30, 2014 And After
-
98293350044 Ball Bearing. May 29, 2014 And BeforeBall Bearing. May 29, 2014 And Before
-
98705401608 Ball Bearing. May 30, 2014 And AfterBall Bearing. May 30, 2014 And After
-
99705401136 Front Cover. May 29, 2014 And BeforeFront Cover. May 29, 2014 And Before
-
99705401609 Front Cover. May 30, 2014 And AfterFront Cover. May 30, 2014 And After
-
100705400762 Front Cover. May 29, 2014 And BeforeFront Cover. May 29, 2014 And Before
-
100705401610 Front Cover. May 30, 2014 And AfterFront Cover. May 30, 2014 And After
-
101705501588 10 Teeth Pinion. May 29, 2014 And Before10 Teeth Pinion. May 29, 2014 And Before
-
101705401611 Pinion 10 Teeth. May 30, 2014 And AfterPinion 10 Teeth. May 30, 2014 And After
-
102705401612 Gear 36 Teeth. May 30, 2014 And AfterGear 36 Teeth. May 30, 2014 And After
-
103705500893 Vent Valve. May 29, 2014 And BeforeVent Valve. May 29, 2014 And Before
-
103705401613 Vent Valve. May 30, 2014 And AfterVent Valve. May 30, 2014 And After
-
104a705400822 Differential. Package-DPS, XT. May 29, 2014 And BeforeDifferential. Package-DPS, XT. May 29, 2014 And Before
-
104b705401506 Differential. Package-DPS, XT. May 30, 2014 And AfterDifferential. Package-DPS, XT. May 30, 2014 And After
-
105705401481 Oil Seal. May 29, 2014 And BeforeOil Seal. May 29, 2014 And Before
-
105705401615 Oil Seal. May 30, 2014 And AfterOil Seal. May 30, 2014 And After
-
106705500265 Seal. May 29, 2014 And BeforeSeal. May 29, 2014 And Before
-
106705401616 Seal. May 30, 2014 And AfterSeal. May 30, 2014 And After
-
107705500267 O-Ring. May 29, 2014 And BeforeO-Ring. May 29, 2014 And Before
-
107705401617 O'Ring. May 30, 2014 And AfterO'Ring. May 30, 2014 And After
-
108705401486 Oil Seal. May 29, 2014 And BeforeOil Seal. May 29, 2014 And Before
-
108705401618 Gasket. May 30, 2014 And AfterGasket. May 30, 2014 And After
-
157703500049 Pinion Shim Kit. May 29, 2014 And BeforePinion Shim Kit. May 29, 2014 And Before
-
157705501162 Pinion Gear Shim. May 29, 2014 And BeforePinion Gear Shim. May 29, 2014 And Before
-
160250200102 Flat Washer M12. May 29, 2014 And BeforeFlat Washer M12. May 29, 2014 And Before
-
160250200014 Flat Washer M10. May 30, 2014 And AfterFlat Washer M10. May 30, 2014 And After
-
161250000378 Hex Flanged Screw M12 X 16, Scotch Grip. May 29, 2014 And BeforeHex Flanged Screw M12 X 16, Scotch Grip. May 29, 2014 And Before
-
161250000615 Hex Flanged Screwv M10 X 16. May 30, 2014 And AfterHex Flanged Screwv M10 X 16. May 30, 2014 And After
