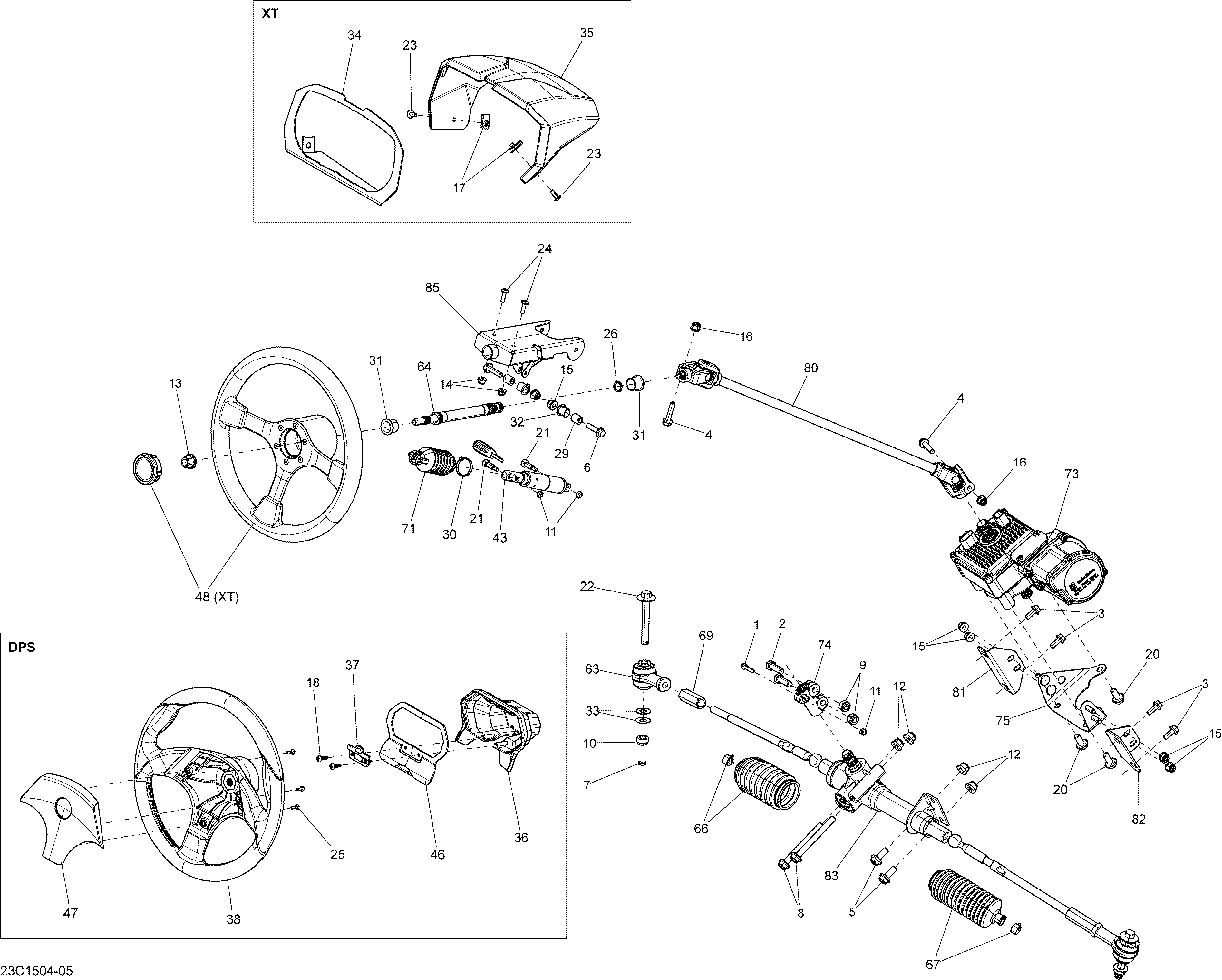

07- Steering _23C1504 для BRP Commander MAX 1000_DPS_XT - 2015

  • №
    Артикул
    Название
  • 1
    207063044 Hex. Screw M6 X 30
    Hex. Screw M6 X 30
  • 2
    207103586 Hex. Screw M10 X 35
    Hex. Screw M10 X 35
  • 3
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 4
    207583586 Hex. Flanged Screw M8 X 35, Scotch Grip
    Hex. Flanged Screw M8 X 35, Scotch Grip
  • 5
    207602546 Hex. Flanged Screw M10 X 25
    Hex. Flanged Screw M10 X 25
  • 6
    207683044 Hex. Flanged Screw M8 X 30
    Hex. Flanged Screw M8 X 30
  • 7
    211400017 Cotter Pin
    Cotter Pin
  • 8
    230500046 Hex. Screw M10 X 100, Scotch Grip
    Hex. Screw M10 X 100, Scotch Grip
  • 9
    232500416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 10
    232521416 Elastic Flanged Stop Nut M12
    Elastic Flanged Stop Nut M12
  • 11
    232561434 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 11
    232561434 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 12
    233201436 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 13
    233221414 Hex. Flanged Elastic Nut M12
    Hex. Flanged Elastic Nut M12
  • 14
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 15
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 15
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 16
    233281416 Hex. Elastic Flanged Nut M8
    Hex. Elastic Flanged Nut M8
  • 17
    250000048 Panel Nut M6 X 1.0. Package-XT
    Panel Nut M6 X 1.0. Package-XT
  • 18
    250000297 Truss Head Torx Screw K50 X 20. Package-DPS
    Truss Head Torx Screw K50 X 20. Package-DPS
  • 20
    250000601 Hex. Flanged Screw M10 X 20, Scotch Grip
    Hex. Flanged Screw M10 X 20, Scotch Grip
  • 21
    250000669 Socket Head Screw M8 X 16
    Socket Head Screw M8 X 16
  • 22
    250000657 Hexagonal Screw M12 X 88
    Hexagonal Screw M12 X 88
  • 23
    250000721 Torx Screw. Package-XT
    Torx Screw. Package-XT
  • 24
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 25
    250000723 Phillips Screw K40 X 16. Package-DPS
    Phillips Screw K40 X 16. Package-DPS
  • 26
    293300144 O-Ring
    O-Ring
  • 29
    293900106 Bushing
    Bushing
  • 30
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 31
    415108000 Cushion
    Cushion
  • 32
    705600799 Bushing
    Bushing
  • 33
    250200086 Flat Washer
    Flat Washer
  • 34
    707900013 Cluster Support. Package-XT
    Cluster Support. Package-XT
  • 35
    707900124 Upper Cluster Cover. Package-XT
    Upper Cluster Cover. Package-XT
  • 36
    709400514 Speedometer Cover. Package-DPS
    Speedometer Cover. Package-DPS
  • 37
    709400573 Latch Indicator Cover. Package-DPS
    Latch Indicator Cover. Package-DPS
  • 38
    709400650 Steering Wheel. Package-DPS
    Steering Wheel. Package-DPS
  • 43
    709400656 Adjustment Cylinder
    Adjustment Cylinder
  • 46
    709400760 Cluster Support. Package-DPS
    Cluster Support. Package-DPS
  • 47
    709400780 Steering Center. Package-DPS
    Steering Center. Package-DPS
  • 48
    715001134 Steering Wheel Kit. Package-XT
    Steering Wheel Kit. Package-XT
  • 63
    709401134 Ball Joint
    Ball Joint
  • 64
    709401167 Steering Shaft
    Steering Shaft
  • 66
    715900235 Boot Kit, Pinion Side. Package-XT
    Boot Kit, Pinion Side. Package-XT
  • 67
    715900236 Boot Kit, Tube Side. Package-XT
    Boot Kit, Tube Side. Package-XT
  • 69
    715900237 Nut Tie Rod End. Package-XT
    Nut Tie Rod End. Package-XT
  • 71
    709401232 Boot Kit, Tube Side
    Boot Kit, Tube Side
  • 73
    709401406 Power Steering
    Power Steering
  • 74
    709401294 Coupling
    Coupling
  • 75
    709401296 Support
    Support
  • 80
    709401326 Steering Column
    Steering Column
  • 81
    709401336 LH DPS Support
    LH DPS Support
  • 82
    709401337 RH DPS Support
    RH DPS Support
  • 83
    709401390 Rack And Pinion Steering. Package-XT
    Rack And Pinion Steering. Package-XT
  • 85
    709401391 Painted Steering Wheel Support
    Painted Steering Wheel Support
