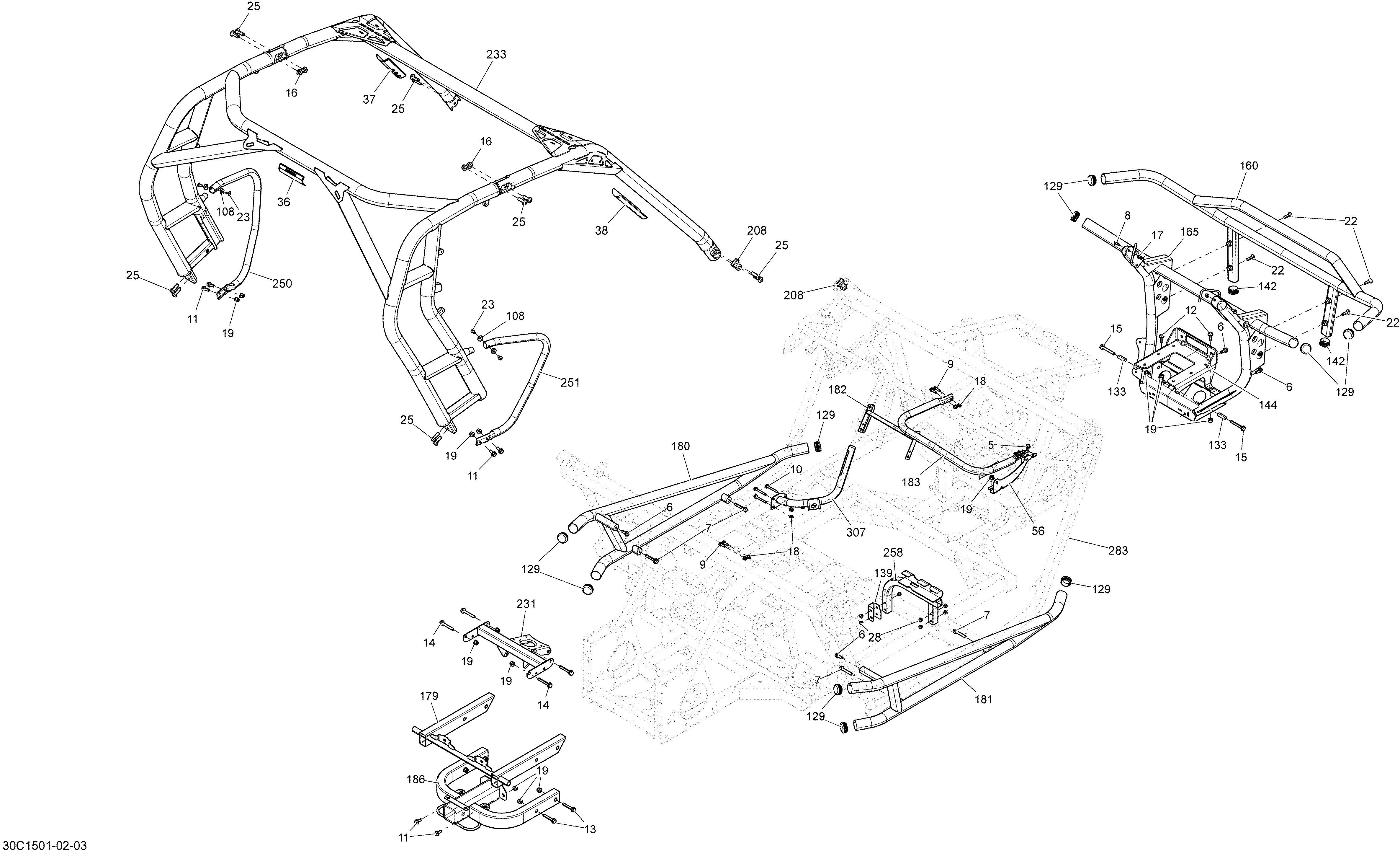

09- Frame _30C1501 для BRP Commander 800_STD_DPS_XT - 2015
-
№АртикулНазвание
-
5207581644 Hex. Flanged Screw M8 X 16, Scotch GripHex. Flanged Screw M8 X 16, Scotch Grip
-
6207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
8207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
9207662046 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
11207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
12207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
13207685044 Hex. Flanged Screw M8 X 50Hex. Flanged Screw M8 X 50
-
14207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
15207686044 Hex. Flanged Screw M8 x 60. Package-XTHex. Flanged Screw M8 x 60. Package-XT
-
16233101464 Hex. Elastic Flange Nut , M10 X 1.5Hex. Elastic Flange Nut , M10 X 1.5
-
17233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
18233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
19233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
22250000197 Torx Truss Screw M8 X 30. Package-XTTorx Truss Screw M8 X 30. Package-XT
-
23250000439 Torx Truss Screw M6 X 14Torx Truss Screw M6 X 14
-
25250000624 Screw Torx M10 X 30Screw Torx M10 X 30
-
28293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
36704903492 Warning LabelWarning Label
-
37704903679 Warning LabelWarning Label
-
38704903680 Warning LabelWarning Label
-
56705201721 Front Differential SupportFront Differential Support
-
108705202223 Offset WasherOffset Washer
-
129705202455 CapCap
-
133705202499 Bushing. Package-XTBushing. Package-XT
-
139705202602 Seat SupportSeat Support
-
144715000704 Winch Plate. Package-XTWinch Plate. Package-XT
-
160715000958 Black Front Bumper. Package-XTBlack Front Bumper. Package-XT
-
165705202995 Black Front BumperBlack Front Bumper
-
179705203325 Box HolderBox Holder
-
182705203330 Reinforcement PanelReinforcement Panel
-
183705203332 Black HandleBlack Handle
-
186715001251 Trailer Hitch Ass'yTrailer Hitch Ass'y
-
208705203415 Binding BlockBinding Block
-
231705203538 Differential HolderDifferential Holder
-
233705203579 Cage Kit, Front And Rear SectionCage Kit, Front And Rear Section
-
250705203637 Black LH Side Protector TubeBlack LH Side Protector Tube
-
251705203640 Black RH Side Protector TubeBlack RH Side Protector Tube
-
283715002495 Black Frame Ass'yBlack Frame Ass'y
-
307705204399 Black Console HandleBlack Console Handle
