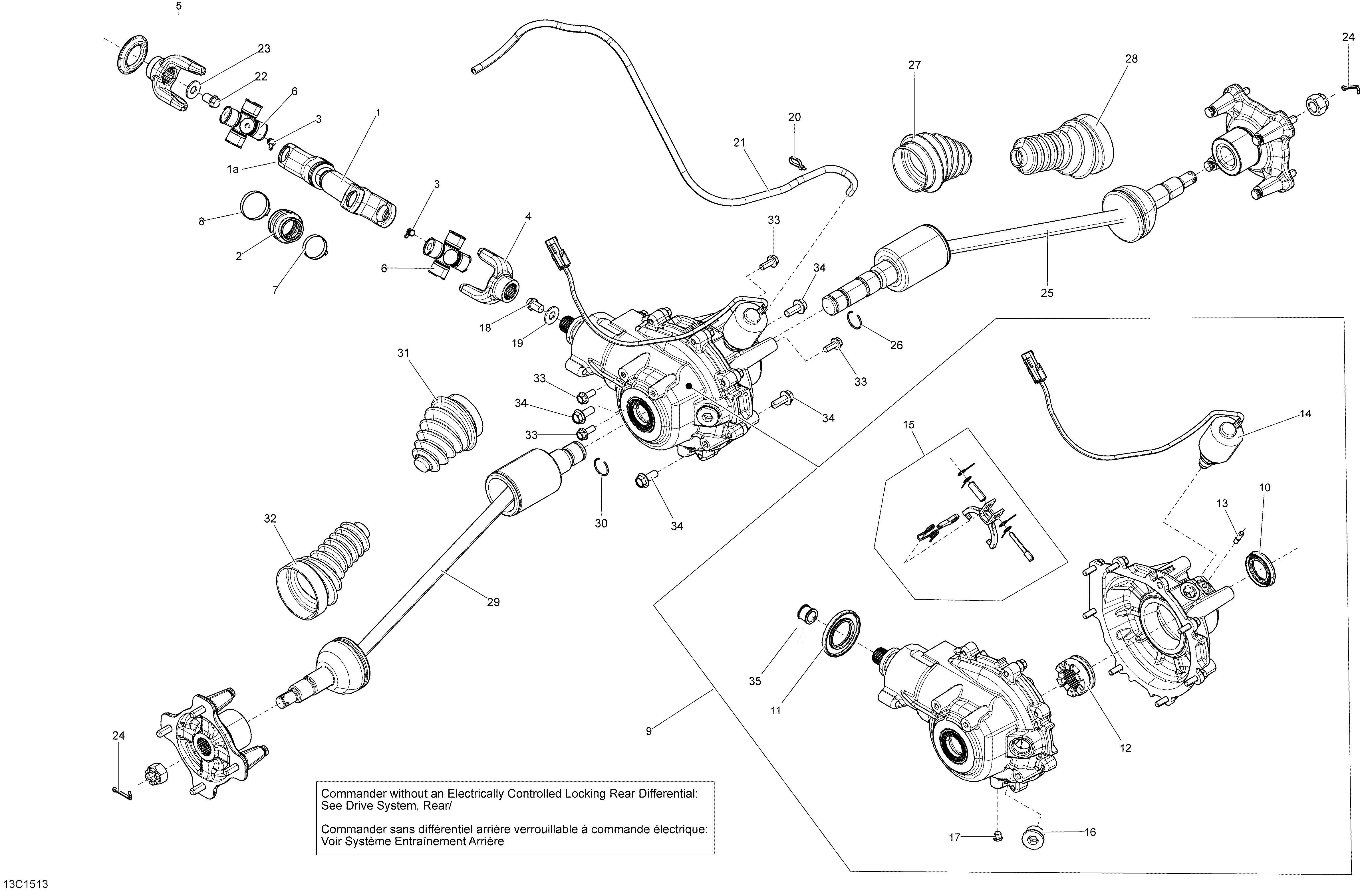

08- Drive System, Rear - With Locking Rear Differential_13C1513a для BRP Commander 800_STD_DPS_XT - 2015
‹-+›
-
№АртикулНазвание
-
1705502149 Drive Axle Ass'y. Includes 1 to 8Drive Axle Ass'y. Includes 1 to 8
-
1a715900106 Spline YokeSpline Yoke
-
2715900118 Rubber BootRubber Boot
-
3715900295 Grease FittingGrease Fitting
-
4715900296 Fixe YokeFixe Yoke
-
5715900272 Fixed JointFixed Joint
-
6703500846 Universal Joint Ass'yUniversal Joint Ass'y
-
7509000045 Oetiker Gear ClampOetiker Gear Clamp
-
8293650138 Oetiker Gear ClampOetiker Gear Clamp
-
9705501942 Rear Differential Ass'y. Includes 9 to 17Rear Differential Ass'y. Includes 9 to 17
-
10705501824 SealSeal
-
11705501975 SealSeal
-
12705501825 GearGear
-
13705501826 Vent ValveVent Valve
-
14710003430 SolenoidSolenoid
-
15705501829 Shift Yoke KitShift Yoke Kit
-
16705501828 Fill PlugFill Plug
-
17705501827 Drain PlugDrain Plug
-
18250000378 Hex Flanged Screw M12 X 16, Scotch GripHex Flanged Screw M12 X 16, Scotch Grip
-
19250200102 Flat Washer M12Flat Washer M12
-
20293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
21415080200 Hose, PolyurethaneHose, Polyurethane
-
22250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
23250200102 Flat Washer M12Flat Washer M12
-
24250400036 Cotter PinCotter Pin
-
25705501967 RH Half Shaft. Includes 25 to 28RH Half Shaft. Includes 25 to 28
-
26705501832 CirclipCirclip
-
27705501830 Boot Differential KitBoot Differential Kit
-
28705501831 Boot Wheel KitBoot Wheel Kit
-
29705501968 LH Half Shaft. Includes 29 to 32LH Half Shaft. Includes 29 to 32
-
30705501832 CirclipCirclip
-
31705501830 Boot Differential KitBoot Differential Kit
-
32705501831 Boot Wheel KitBoot Wheel Kit
-
33207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
34207502546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
35705502247 SleeveSleeve
