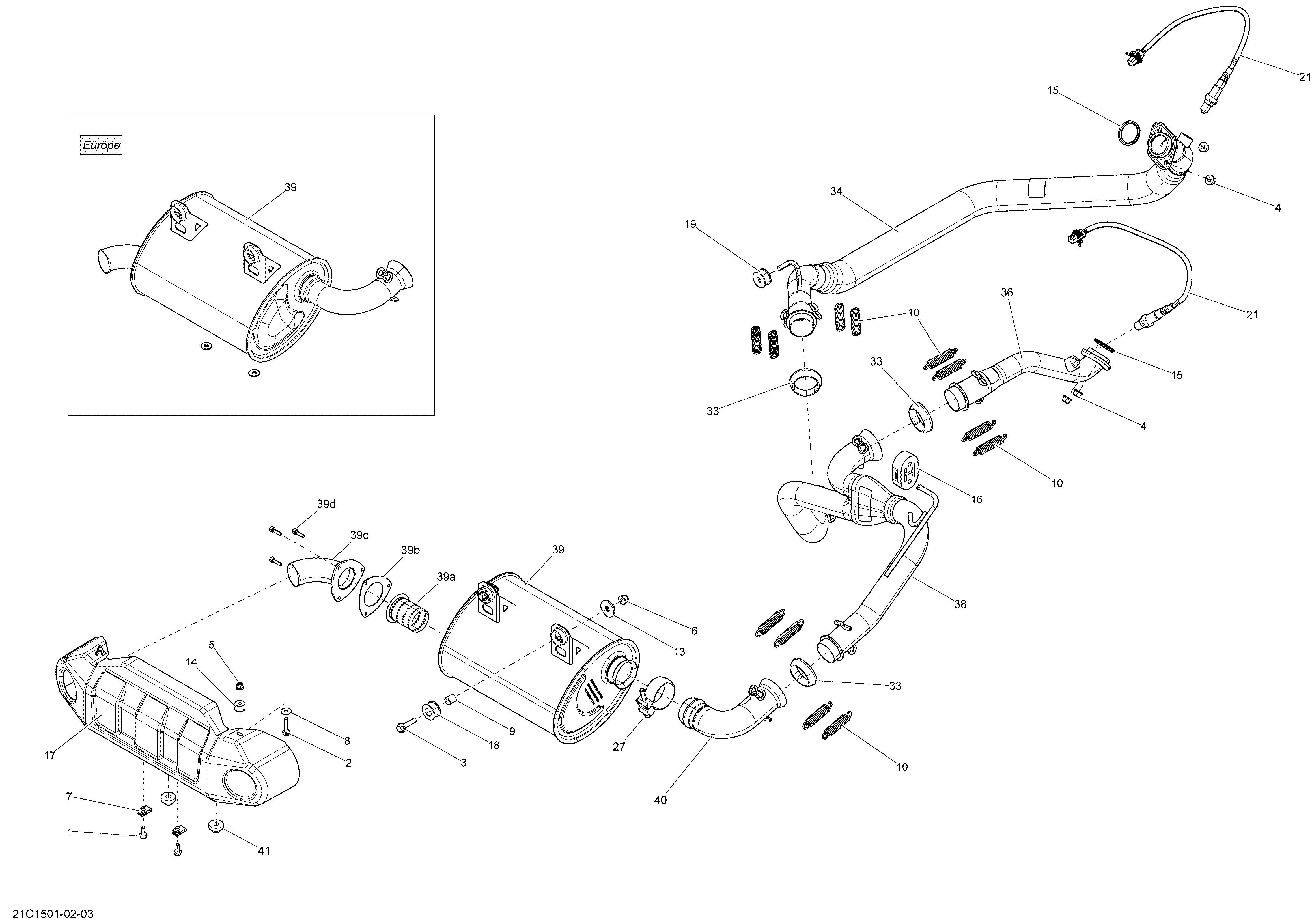

01- Exhaust System _21C1501 для BRP Commander 800_STD_DPS_XT - 2015
-
№АртикулНазвание
-
1207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
2207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
3207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
4233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
8250200082 Flat WasherFlat Washer
-
9293900106 BushingBushing
-
10415107100 Spring. Model- EuropeSpring. Model- Europe
-
10415107100 Spring. Except Model- EuropeSpring. Except Model- Europe
-
13503032900 WasherWasher
-
14707000882 BushingBushing
-
15707600317 GasketGasket
-
16707600638 Rubber BumperRubber Bumper
-
17707600675 DeflectorDeflector
-
18707600701 Anti-Vibration RubberAnti-Vibration Rubber
-
19707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
21707600872 Oxygen SensorOxygen Sensor
-
27707600980 Exhaust ClampExhaust Clamp
-
33707601033 Exhaust GasketExhaust Gasket
-
34707601015 Front Head Pipe. Model- EuropeFront Head Pipe. Model- Europe
-
34707601203 Front Head Pipe. Except Model- EuropeFront Head Pipe. Except Model- Europe
-
36707601018 Rear Head Pipe. Model- EuropeRear Head Pipe. Model- Europe
-
36707601205 Rear Head Pipe. Except Model- EuropeRear Head Pipe. Except Model- Europe
-
38707601020 Link Head Pipe. Model- EuropeLink Head Pipe. Model- Europe
-
38707601207 Link Head Pipe. Except Model- EuropeLink Head Pipe. Except Model- Europe
-
39707601492 Muffler Ass'yMuffler Ass'y
-
39707600753 Muffler Ass'y. Model- EuropeMuffler Ass'y. Model- Europe
-
39a715900089 Spark ArrestorSpark Arrestor
-
39b715900090 GasketGasket
-
39c715900091 Muffler Outlet End PieceMuffler Outlet End Piece
-
39D205062060 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
40707601327 Link Head PipeLink Head Pipe
-
41709200285 GrommetGrommet
