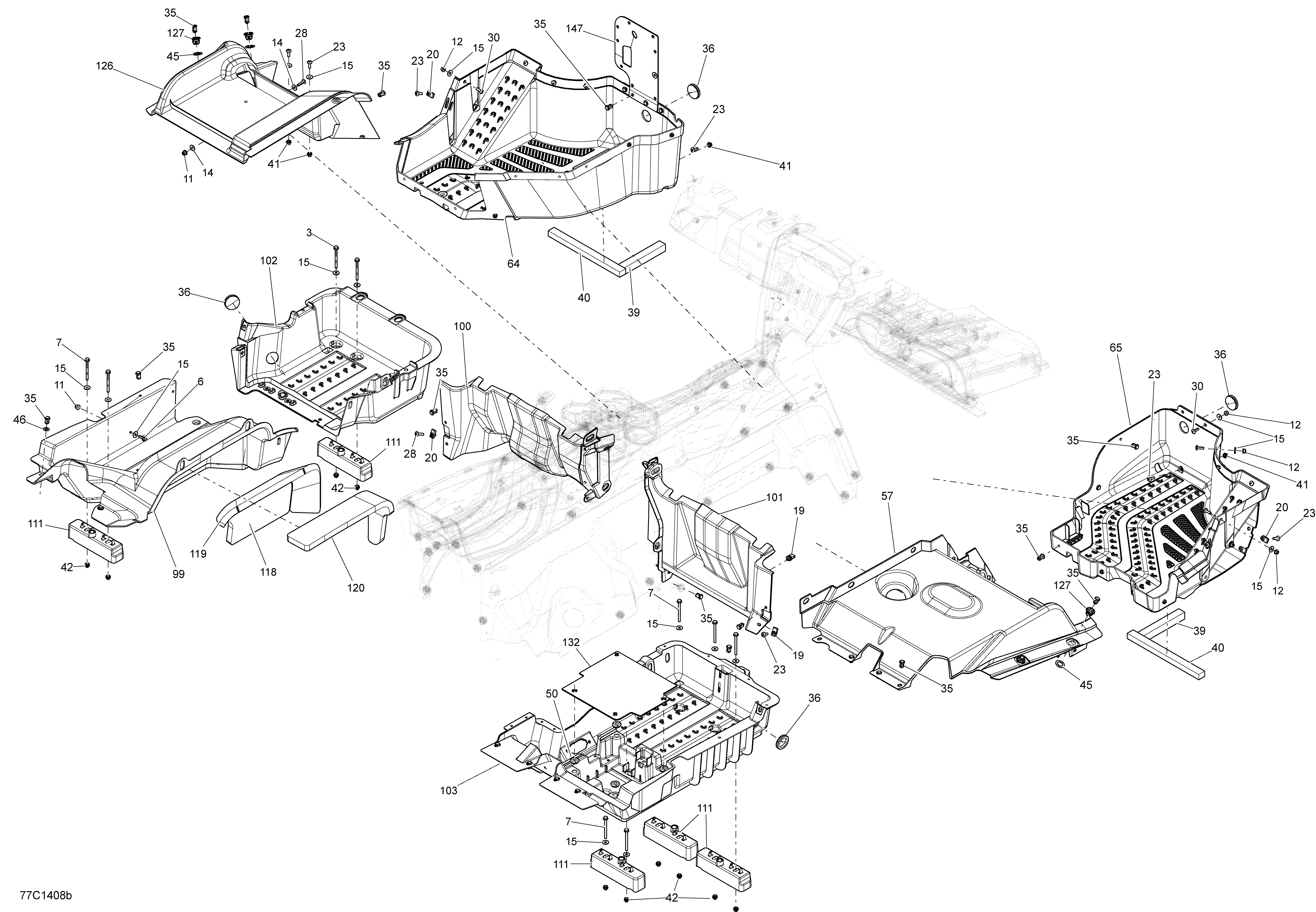

09- Cab Interior Bottom Pan для BRP Maverick MAX 1000, STD, XRS, XRS-DPS - 2014
-
№АртикулНазвание
-
3207567044 Hex. Flanged Screw M6x70, Scotch GripHex. Flanged Screw M6x70, Scotch Grip
-
6207662084 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
7207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
11233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
12233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
14234062410 Flat Washer 6 mmFlat Washer 6 mm
-
15234062670 Flat WasherFlat Washer
-
19250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
20250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
23250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
28250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
30250000335 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
35293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
36293250242 Rubber CoverRubber Cover
-
39293250318 Seal TraySeal Tray
-
40293250319 Seal TraySeal Tray
-
41293450274 InsertInsert
-
45503189273 WasherWasher
-
45503189273 WasherWasher
-
46506151252 WasherWasher
-
50705003264 GrommetGrommet
-
57707900006 RH Under Cover Ass'yRH Under Cover Ass'y
-
64707900022 LH Lower FloorLH Lower Floor
-
65707900023 RH Lower FloorRH Lower Floor
-
99707900081 LH Rear Bottom PanLH Rear Bottom Pan
-
100707900082 LH Rear Upper Floor CoverLH Rear Upper Floor Cover
-
101707900083 Seat CoverSeat Cover
-
102707900084 LH Mid FloorLH Mid Floor
-
103707900085 FloorFloor
-
111707900099 Support PlateSupport Plate
-
118707900116 Acoustic FoamAcoustic Foam
-
119707900117 Acoustic FoamAcoustic Foam
-
120707900118 Acoustic FoamAcoustic Foam
-
126707900130 Under Seat CoverUnder Seat Cover
-
127707900133 InsertInsert
-
132707900163 Battery CoverBattery Cover
-
147707900204 DeflectorDeflector
