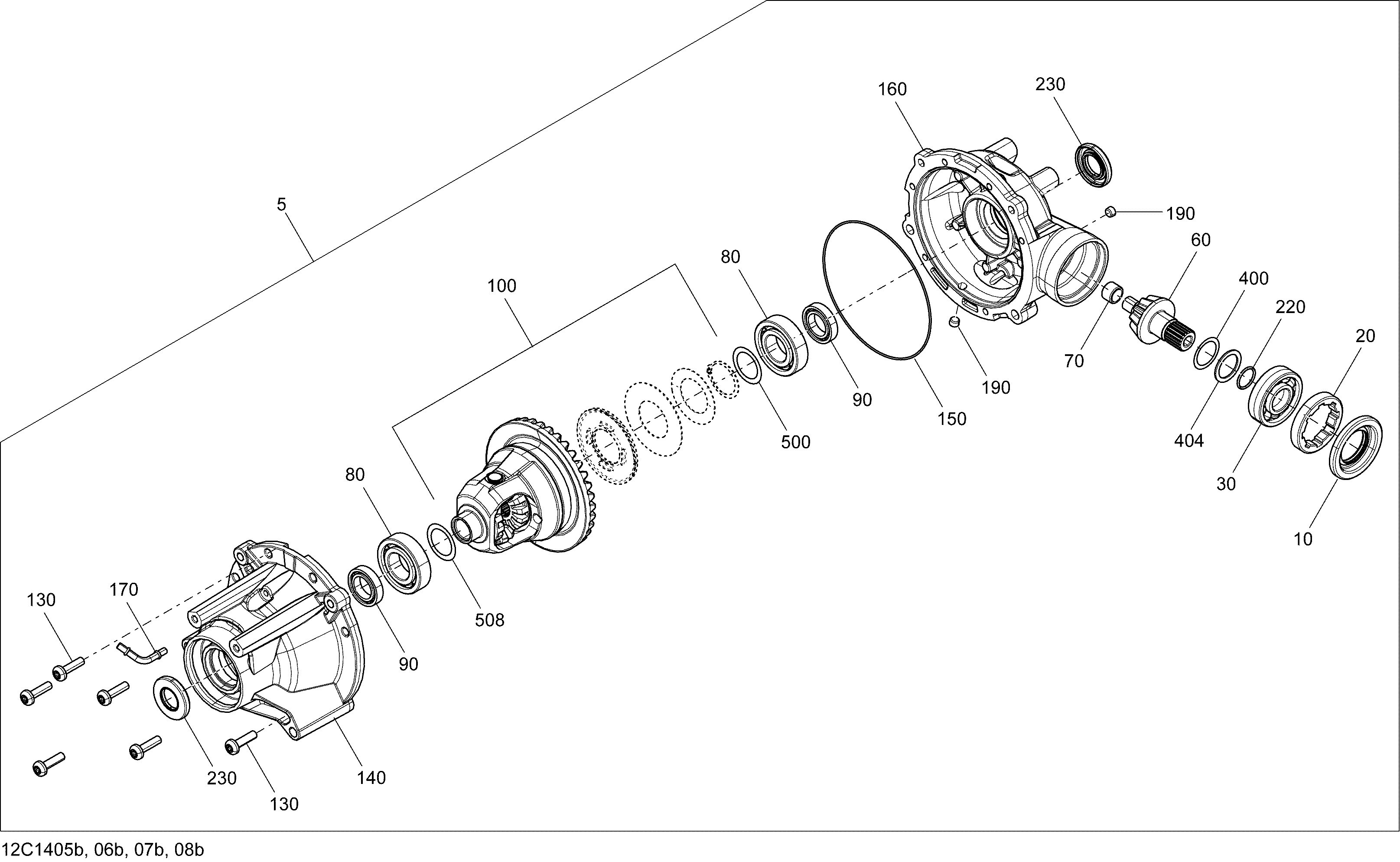

07- Drive System, Front (Differential) для BRP Maverick MAX 1000, STD, XRS, XRS-DPS - 2014
-
№АртикулНазвание
-
5705401487 Front Differential Ass'y. STDFront Differential Ass'y. STD
-
5705401488 Front Differential Ass'y. XRS-DPSFront Differential Ass'y. XRS-DPS
-
10705401481 Oil SealOil Seal
-
20705400661 NutNut
-
30705500260 Ball BearingBall Bearing
-
60705501588 10 Teeth Pinion10 Teeth Pinion
-
70705500261 Needle BearingNeedle Bearing
-
80705500259 Ball BearingBall Bearing
-
90293350044 Ball BearingBall Bearing
-
100705400645 Differential. STDDifferential. STD
-
100705400822 Differential. XRS-DPSDifferential. XRS-DPS
-
130705500892 ScrewScrew
-
140705400762 Front CoverFront Cover
-
150705500265 SealSeal
-
160705401136 Front CoverFront Cover
-
170705500893 Vent ValveVent Valve
-
190705500894 Drain PlugDrain Plug
-
220705500267 O-RingO-Ring
-
230705401486 Oil SealOil Seal
-
400703500049 Pinion Shim KitPinion Shim Kit
-
404705501162 Pinion Gear ShimPinion Gear Shim
-
500703500288 Differential Shim Spool KitDifferential Shim Spool Kit
-
508703500050 Differential Shim Spool KitDifferential Shim Spool Kit
