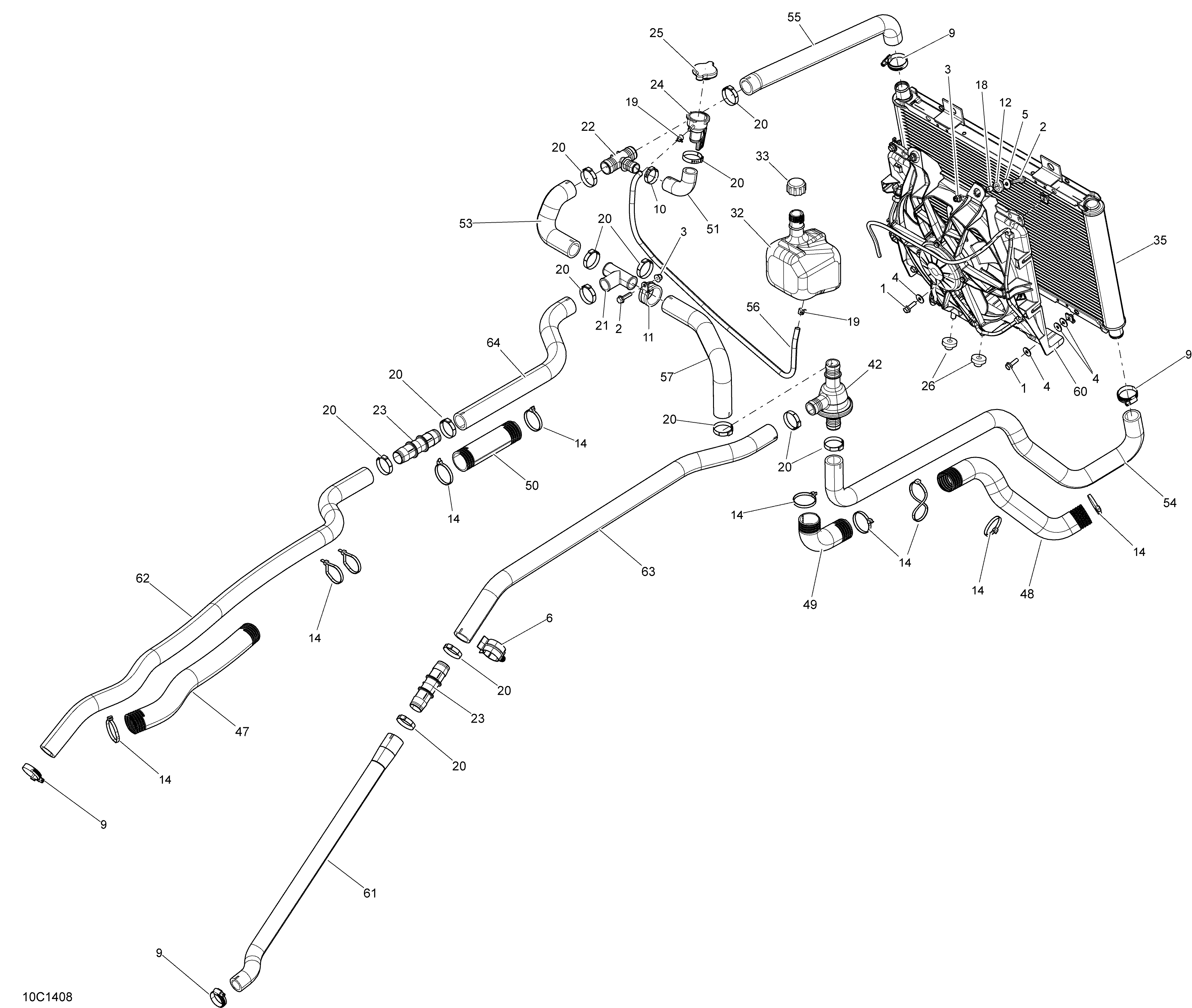

01- Cooling System для BRP Maverick MAX 1000, STD, XRS, XRS-DPS - 2014
-
№АртикулНазвание
-
1207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
2207662534 Hex. Flanged ScrewHex. Flanged Screw
-
3233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
4234062410 Flat Washer 6 mmFlat Washer 6 mm
-
5250200082 Flat WasherFlat Washer
-
6275500590 RetainerRetainer
-
9293650098 Norma Gear ClampNorma Gear Clamp
-
10293650099 Oetiker Gear ClampOetiker Gear Clamp
-
11293650218 Hose RetainerHose Retainer
-
12293720053 GrommetGrommet
-
14293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
18293900105 BushingBushing
-
19414554800 Spring ClampSpring Clamp
-
20509000162 Gear ClampGear Clamp
-
21509000219 T-FittingT-Fitting
-
22509000372 T-FittingT-Fitting
-
23509000914 FittingFitting
-
24709200179 Filler NeckFiller Neck
-
25709200207 Pressure CapPressure Cap
-
26709200285 GrommetGrommet
-
32709200504 Coolant TankCoolant Tank
-
33709200328 Tank CapTank Cap
-
35709200395 RadiatorRadiator
-
42709200406 ThermostatThermostat
-
47515176260 Tubing 35mmTubing 35mm
-
48515176260 Tubing 35mmTubing 35mm
-
49515176260 Tubing 35mmTubing 35mm
-
50515176260 Tubing 35mmTubing 35mm
-
51709200439 Filler Neck HoseFiller Neck Hose
-
53709200443 HoseHose
-
54709200444 Radiator Inlet HoseRadiator Inlet Hose
-
55709200445 Outlet HoseOutlet Hose
-
56415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
57709200447 HoseHose
-
60709200462 Fan Ass'yFan Ass'y
-
61709200496 Pump HosePump Hose
-
62709200497 HoseHose
-
63709200519 Pump HosePump Hose
-
64709200520 Intermediate HoseIntermediate Hose
