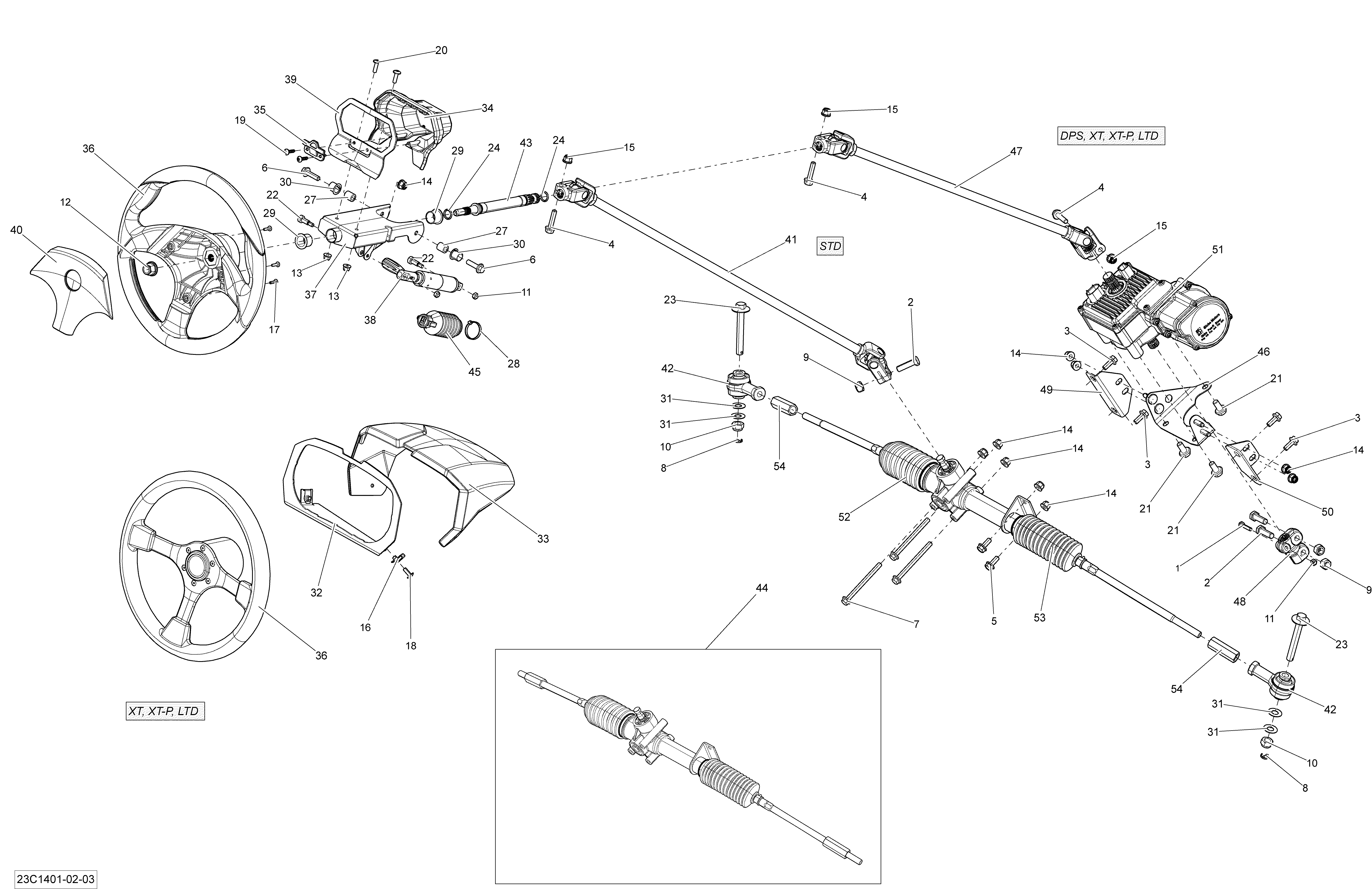

07- Steering для BRP Commander 800 STD, DPS, XT - 2014
-
№АртикулНазвание
-
1207063044 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
2207103586 Hex. Screw M10 X 35Hex. Screw M10 X 35
-
3207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
4207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
5207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
6207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
7207689534 Hex. Flanged Scew M8 X 95Hex. Flanged Scew M8 X 95
-
8211400017 Cotter PinCotter Pin
-
9232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
10232521416 Elastic Flanged Stop Nut M12Elastic Flanged Stop Nut M12
-
11232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
12233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
13233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
14233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
15233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
16250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
17250000084 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
18250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
19250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
20250000350 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
21250000601 Hex. Flanged Screw M10 X 20, Scotch GripHex. Flanged Screw M10 X 20, Scotch Grip
-
22250000649 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
23250000657 Hexagonal Screw M12 X 88Hexagonal Screw M12 X 88
-
24293300144 O-RingO-Ring
-
27293900106 BushingBushing
-
28414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
29415108000 CushionCushion
-
30705600799 BushingBushing
-
31250200086 Flat WasherFlat Washer
-
32707900013 Cluster SupportCluster Support
-
33707900124 Upper Cluster CoverUpper Cluster Cover
-
34709400514 Speedometer CoverSpeedometer Cover
-
35709400573 Latch Indicator CoverLatch Indicator Cover
-
36709400650 Steering Wheel. STD, DPSSteering Wheel. STD, DPS
-
36715001134 Steering Wheel Kit. XT, XTP, LTDSteering Wheel Kit. XT, XTP, LTD
-
37709400655 Steering SupportSteering Support
-
38709400656 Adjustment CylinderAdjustment Cylinder
-
39709400760 Cluster SupportCluster Support
-
40709400780 Steering CenterSteering Center
-
41709401389 Steering ColumnSteering Column
-
42709401134 Ball JointBall Joint
-
43709401167 Steering ShaftSteering Shaft
-
44709401185 Steering Ass'ySteering Ass'y
-
45709401232 Boot Kit, Tube SideBoot Kit, Tube Side
-
46709401296 SupportSupport
-
47709401326 Steering ColumnSteering Column
-
48709401328 CouplingCoupling
-
49709401336 LH DPS SupportLH DPS Support
-
50709401337 RH DPS SupportRH DPS Support
-
51709401406 Power Steering Ass'yPower Steering Ass'y
-
52715900235 Boot Kit, Pinion SideBoot Kit, Pinion Side
-
53715900236 Boot Kit, Tube SideBoot Kit, Tube Side
-
54715900237 Nut Tie Rod EndNut Tie Rod End
