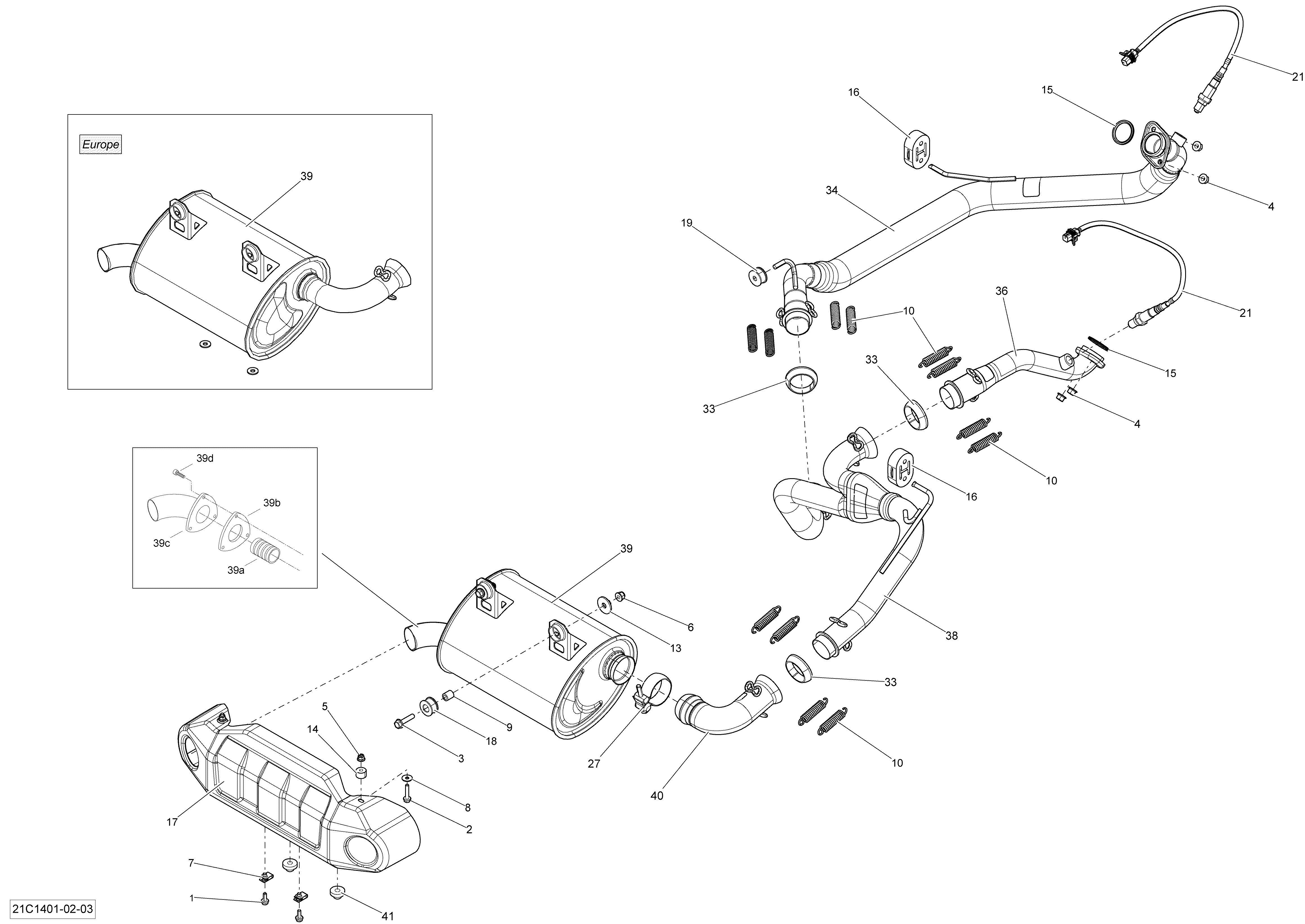

01- Exhaust System для BRP Commander 800 STD, DPS, XT - 2014

  • №
    Артикул
    Название
  • 1
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 2
    207663034 Hex. Flanged Screw M6 X 30
    Hex. Flanged Screw M6 X 30
  • 3
    207683544 Hex. Flanged Screw M8 X 35
    Hex. Flanged Screw M8 X 35
  • 4
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 5
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 6
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 7
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 8
    250200082 Flat Washer
    Flat Washer
  • 9
    293900106 Bushing
    Bushing
  • 10
    415107100 Spring. Model- Europe
    Spring. Model- Europe
  • 10
    415107100 Spring. Except Model- Europe
    Spring. Except Model- Europe
  • 13
    503032900 Washer
    Washer
  • 14
    707000882 Bushing
    Bushing
  • 15
    707600317 Gasket
    Gasket
  • 16
    707600638 Rubber Bumper
    Rubber Bumper
  • 17
    707600675 Deflector
    Deflector
  • 18
    707600701 Anti-Vibration Rubber
    Anti-Vibration Rubber
  • 19
    707600702 Anti-Vibration Rubber
    Anti-Vibration Rubber
  • 21
    707600872 Oxygen Sensor
    Oxygen Sensor
  • 27
    707600980 Exhaust Clamp
    Exhaust Clamp
  • 33
    707601033 Exhaust Gasket
    Exhaust Gasket
  • 34
    707601015 Front Head Pipe. Model- Europe
    Front Head Pipe. Model- Europe
  • 34
    707601203 Front Head Pipe. Except Model- Europe
    Front Head Pipe. Except Model- Europe
  • 36
    707601018 Rear Head Pipe. Model- Europe
    Rear Head Pipe. Model- Europe
  • 36
    707601205 Rear Head Pipe. Except Model- Europe
    Rear Head Pipe. Except Model- Europe
  • 38
    707601020 Link Head Pipe. Model- Europe
    Link Head Pipe. Model- Europe
  • 38
    707601207 Link Head Pipe. Except Model- Europe
    Link Head Pipe. Except Model- Europe
  • 39
    707601245 Muffler Ass'y. (January 2014 and Before) Except Model- Europe, Includes 39a To 39d
    Muffler Ass'y. (January 2014 and Before) Except Model- Europe, Includes 39a To 39d
  • 39
    707601442 Muffler Ass'y. (February 2014 and After) Except Model- Europe, Includes 39a To 39d
    Muffler Ass'y. (February 2014 and After) Except Model- Europe, Includes 39a To 39d
  • 39
    707600753 Muffler Ass'y. Model- Europe, Includes 39a To 39d
    Muffler Ass'y. Model- Europe, Includes 39a To 39d
  • 39a
    715900089 Spark Arrestor
    Spark Arrestor
  • 39b
    715900090 Gasket
    Gasket
  • 39c
    715900091 Muffler Outlet End Piece
    Muffler Outlet End Piece
  • 39D
    205062060 Socket Head Screw M6 X 20
    Socket Head Screw M6 X 20
  • 40
    707601327 Link Head Pipe
    Link Head Pipe
  • 41
    709200285 Grommet
    Grommet
