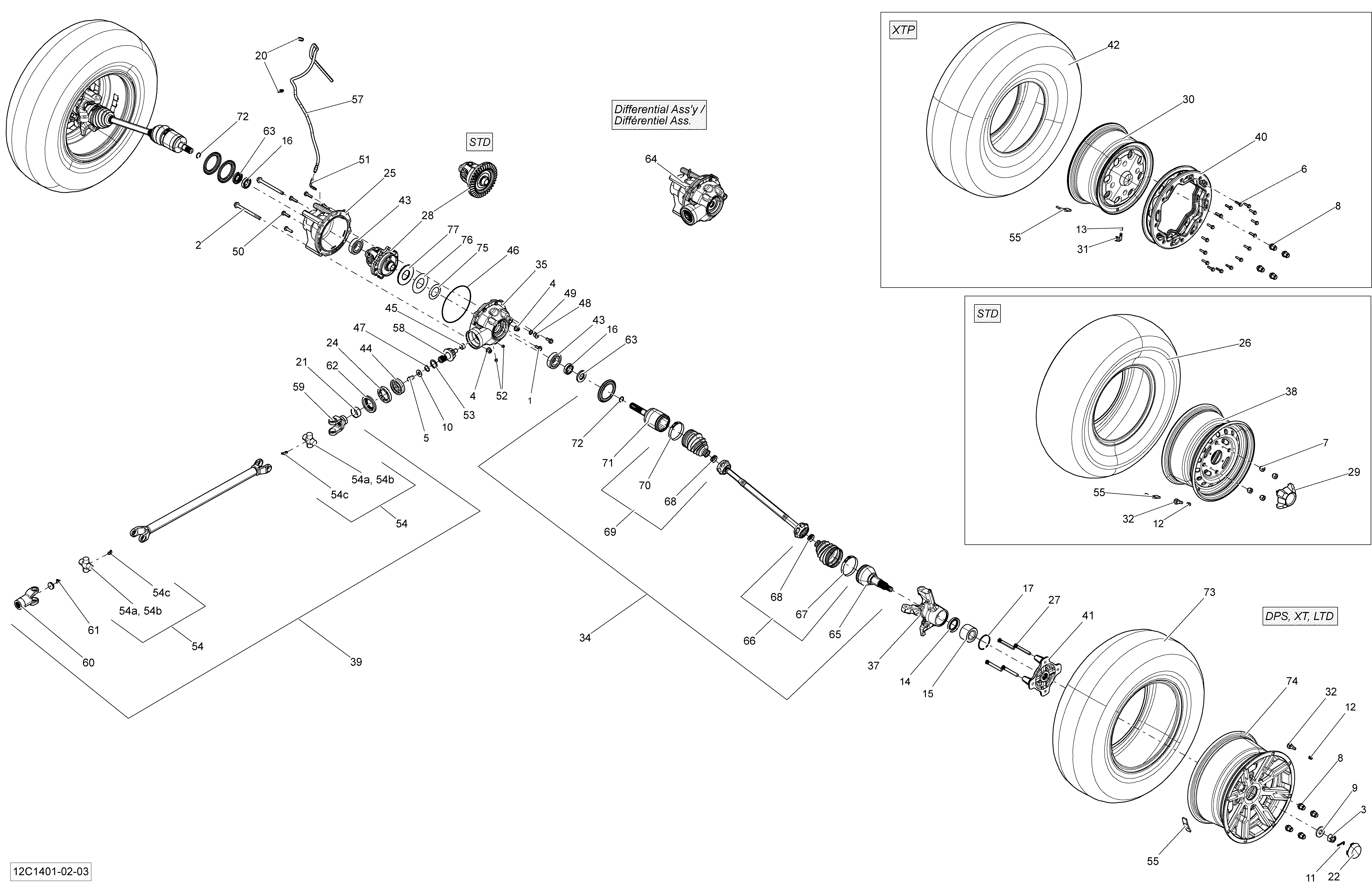

07- Drive System, Front для BRP Commander 800 STD, DPS, XT - 2014

  • №
    Артикул
    Название
  • 1
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 2
    230602546 Hex. Flanged Screw M10 X 125
    Hex. Flanged Screw M10 X 125
  • 3
    250100047 Hex. Castellated Nut M18
    Hex. Castellated Nut M18
  • 4
    233201436 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 5
    250000378 Hex Flanged Screw M12 X 16, Scotch Grip
    Hex Flanged Screw M12 X 16, Scotch Grip
  • 7
    250100042 Wheel Nut
    Wheel Nut
  • 8
    250100082 Chrome Wheel Nut M10 X 1.25. Model- XT Except Camo
    Chrome Wheel Nut M10 X 1.25. Model- XT Except Camo
  • 8
    250100082 Chrome Wheel Nut M10 X 1.25. Model- DPS
    Chrome Wheel Nut M10 X 1.25. Model- DPS
  • 8
    250100100 Black Wheel Nut M10 X 1.25. Model- XT Camo
    Black Wheel Nut M10 X 1.25. Model- XT Camo
  • 9
    250200049 Spring Washer
    Spring Washer
  • 10
    250200102 Flat Washer M12
    Flat Washer M12
  • 11
    250400036 Cotter Pin
    Cotter Pin
  • 12
    293000110 Valve Cap
    Valve Cap
  • 14
    293250246 O-Ring
    O-Ring
  • 15
    293350040 Cone Bearing
    Cone Bearing
  • 16
    293350044 Ball Bearing
    Ball Bearing
  • 17
    293370019 Circlip
    Circlip
  • 20
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 21
    705400036 Wear Ring
    Wear Ring
  • 22
    705400504 Wheel Cap. Model- XT Camo
    Wheel Cap. Model- XT Camo
  • 22
    705400520 Wheel Cap. Model- XT Except Camo
    Wheel Cap. Model- XT Except Camo
  • 22
    705400520 Wheel Cap. Model- DPS
    Wheel Cap. Model- DPS
  • 24
    705400661 Nut
    Nut
  • 25
    705400762 Front Cover
    Front Cover
  • 26
    705400781 Front Tire. Model- STD Except Europe
    Front Tire. Model- STD Except Europe
  • 26
    705401046 Front Tire. Model- STD Europe
    Front Tire. Model- STD Europe
  • 27
    705400791 Wheel Stud
    Wheel Stud
  • 28
    705400645 Differential. Model- STD
    Differential. Model- STD
  • 28
    705400822 Differential. Except Model- STD
    Differential. Except Model- STD
  • 29
    705400921 Wheel Cap
    Wheel Cap
  • 32
    705400193 Rim Valve With Cap
    Rim Valve With Cap
  • 34
    705401105 LH Half Shaft
    LH Half Shaft
  • 34
    705401106 RH Half Shaft
    RH Half Shaft
  • 35
    705401136 Front Gear Cover
    Front Gear Cover
  • 37
    705401548 LH Front Knuckle
    LH Front Knuckle
  • 37
    705401549 RH Front Knuckle
    RH Front Knuckle
  • 38
    705401217 Black Front Rim
    Black Front Rim
  • 39
    705401239 Axle Drive Ass'y
    Axle Drive Ass'y
  • 41
    705401314 Wheel Hub
    Wheel Hub
  • 43
    705500259 Ball Bearing
    Ball Bearing
  • 44
    705500260 Ball Bearing
    Ball Bearing
  • 45
    705500261 Needle Bearing
    Needle Bearing
  • 46
    705500265 Seal
    Seal
  • 47
    705500267 O-Ring
    O-Ring
  • 48
    705500504 Fill Level Plug
    Fill Level Plug
  • 49
    705500506 Copper Washer
    Copper Washer
  • 50
    705500892 Screw
    Screw
  • 51
    705500893 Vent Valve
    Vent Valve
  • 52
    705500894 Drain Plug
    Drain Plug
  • 53
    705501162 Pinion Gear Shim
    Pinion Gear Shim
  • 54
    703500814 Unit Pack Kit
    Unit Pack Kit
  • 54a
    715900183 U-Joint
    U-Joint
  • 54b
    715900117 Snap Ring
    Snap Ring
  • 54c
    703500813 Grease Fitting
    Grease Fitting
  • 55
    705501385 1/2 OZ Weight
    1/2 OZ Weight
  • 57
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 58
    705501588 10 Teeth Pinion
    10 Teeth Pinion
  • 60
    715900231 Yoke Joint. Cover 715900483
    Yoke Joint. Cover 715900483
  • 59
    715900232 Yoke Joint
    Yoke Joint
  • 61
    703500815 Grease Fitting
    Grease Fitting
  • 62
    705401481 Oil Seal
    Oil Seal
  • 63
    705401486 Oil Seal
    Oil Seal
  • 64
    705401487 Front Differential Ass'y. Model- STD
    Front Differential Ass'y. Model- STD
  • 64
    705401488 Front Differential Ass'y. Except Model- STD
    Front Differential Ass'y. Except Model- STD
  • 65
    705401353 CV Joint
    CV Joint
  • 66
    705401354 Boot Kit, Wheel Side
    Boot Kit, Wheel Side
  • 67
    715900260 Oetiker Clamp, Large
    Oetiker Clamp, Large
  • 68
    715900261 Oetiker Clamp, Small
    Oetiker Clamp, Small
  • 69
    705401355 Boot Kit, Differential Side
    Boot Kit, Differential Side
  • 70
    715900262 Oetiker Clamp, Large
    Oetiker Clamp, Large
  • 71
    705401357 RH Plunging Joint
    RH Plunging Joint
  • 71
    705401359 LH Plunging Joint
    LH Plunging Joint
  • 72
    705401349 Circlip Joint
    Circlip Joint
  • 73
    705400961 Front Tire. Model- XT Europe
    Front Tire. Model- XT Europe
  • 73
    705401377 Front Tire. Except Model- XT Europe
    Front Tire. Except Model- XT Europe
  • 74
    705401378 Front Rim. Except Model- XT Camo
    Front Rim. Except Model- XT Camo
  • 74
    705401379 Front Rim. Model- XT Camo
    Front Rim. Model- XT Camo
  • 75
    703500049 Pinion Shim Kit
    Pinion Shim Kit
  • 76
    703500288 Differential Shim Spool Kit
    Differential Shim Spool Kit
  • 77
    703500050 Differential Shim Spool Kit
    Differential Shim Spool Kit
