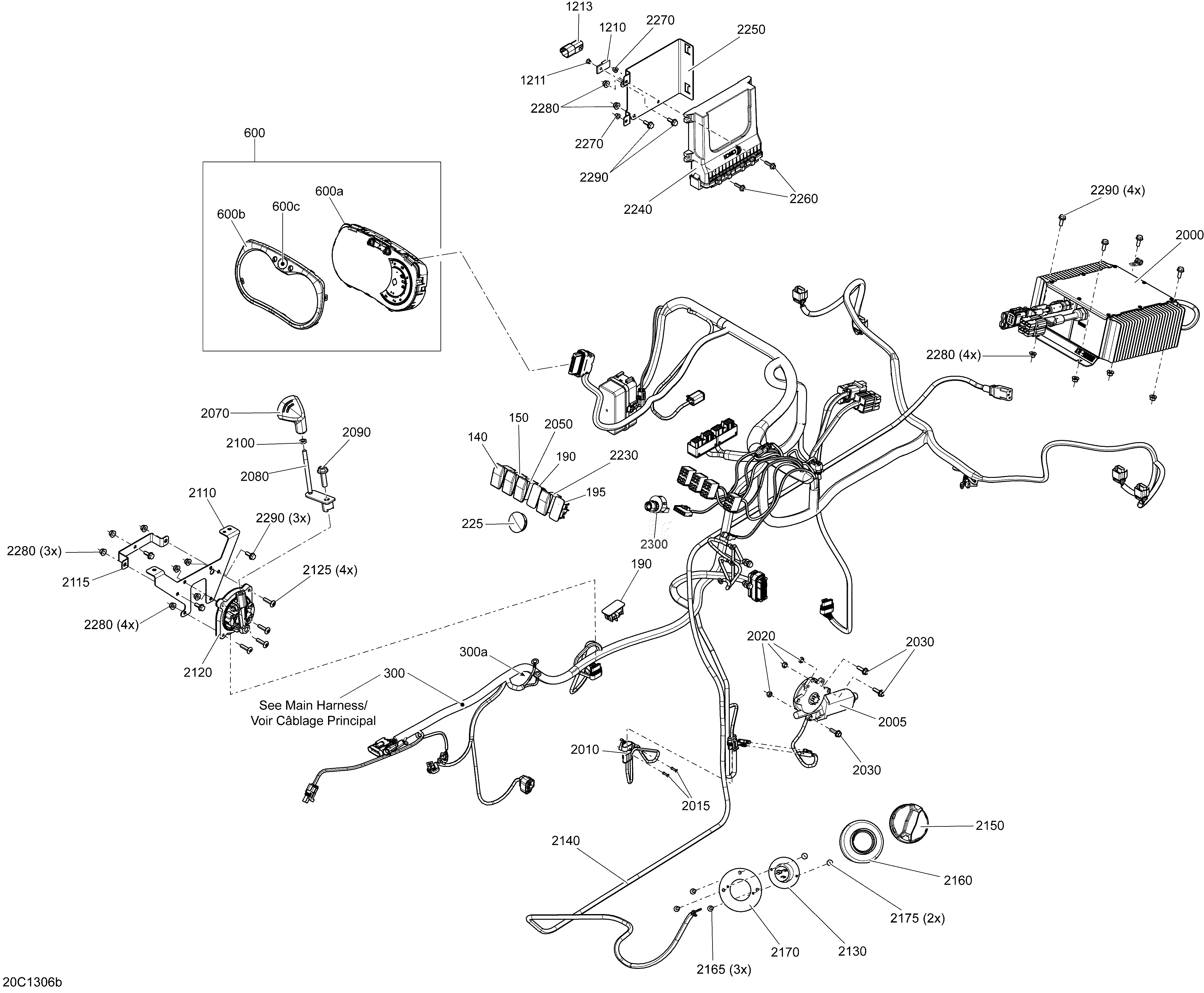

10- Electrical System 2 для BRP Commander (Electric 9Kw) STD, XT, LSV - 2013

  • №
    Артикул
    Название
  • 140
    710001725 Hi/Low Switch
    Hi/Low Switch
  • 150
    710001737 Switch
    Switch
  • 190
    710001999 Plug Carling
    Plug Carling
  • 195
    710001999 Plug Carling. STD, XT, LSV
    Plug Carling. STD, XT, LSV
  • 225
    710003284 Plug
    Plug
  • 300
    710002763 Harness Ass'y
    Harness Ass'y
  • 300a
    710003429 Capacitor Cable
    Capacitor Cable
  • 600
    710002864 Speedometer Ass'y. Includes 600 to 600c
    Speedometer Ass'y. Includes 600 to 600c
  • 600a
    710002984 Speedometer
    Speedometer
  • 600b
    710001183 Trim Ring Ass'y. Includes 600b to 600c
    Trim Ring Ass'y. Includes 600b to 600c
  • 600c
    704901270 BRP Logo, 13 mm
    BRP Logo, 13 mm
  • 1210
    270000141 Clip
    Clip
  • 1211
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 1213
    278002148 Diagnostic Connector Cap
    Diagnostic Connector Cap
  • 2000
    710002805 Charger, 48 Volts
    Charger, 48 Volts
  • 2005
    278002579 Parking Barke/Windshield Motor
    Parking Barke/Windshield Motor
  • 2010
    710001379 Brake Pressure Switch Ass'y
    Brake Pressure Switch Ass'y
  • 2015
    293150150 Pop Rivet
    Pop Rivet
  • 2020
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 2030
    207562034 Hex. Flanged Screw M6 X 20, Scotch Grip
    Hex. Flanged Screw M6 X 20, Scotch Grip
  • 2050
    710002879 Switch
    Switch
  • 2070
    707000284 Lever Handle
    Lever Handle
  • 2080
    710002929 Upper Shifter Arm
    Upper Shifter Arm
  • 2090
    207503544 Hex. Flanged Screw M10 X 35
    Hex. Flanged Screw M10 X 35
  • 2100
    232180491 Hex. Jam Nut M8
    Hex. Jam Nut M8
  • 2110
    710002932 Potentiometer Support
    Potentiometer Support
  • 2115
    710003451 Potentiomete Stifner
    Potentiomete Stifner
  • 2120
    710002933 Shifter Potentiometer
    Shifter Potentiometer
  • 2125
    207663044 Hex. Flanged Screw M6 X 30
    Hex. Flanged Screw M6 X 30
  • 2130
    710002934 Inlet, 15A 125V
    Inlet, 15A 125V
  • 2140
    710002935 Charging Cable
    Charging Cable
  • 2150
    709000268 Cap
    Cap
  • 2160
    710002936 Upper Inlet Support
    Upper Inlet Support
  • 2165
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 2170
    710003246 Lower Inlet Support
    Lower Inlet Support
  • 2175
    293150170 Pop Rivet 5/32''
    Pop Rivet 5/32''
  • 2230
    710002958 Differential Switch
    Differential Switch
  • 2240
    710002878 VCM Module
    VCM Module
  • 2250
    710003323 Support
    Support
  • 2260
    207652044 Flanged Hex. Screw M5 X 20
    Flanged Hex. Screw M5 X 20
  • 2270
    233251414 Hex. Flanged Elastic Nut M5
    Hex. Flanged Elastic Nut M5
  • 2280
    233061414 Hex. Flanged Nut M6
    Hex. Flanged Nut M6
  • 2290
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 2300
    710002327 Ignition Switch
    Ignition Switch
