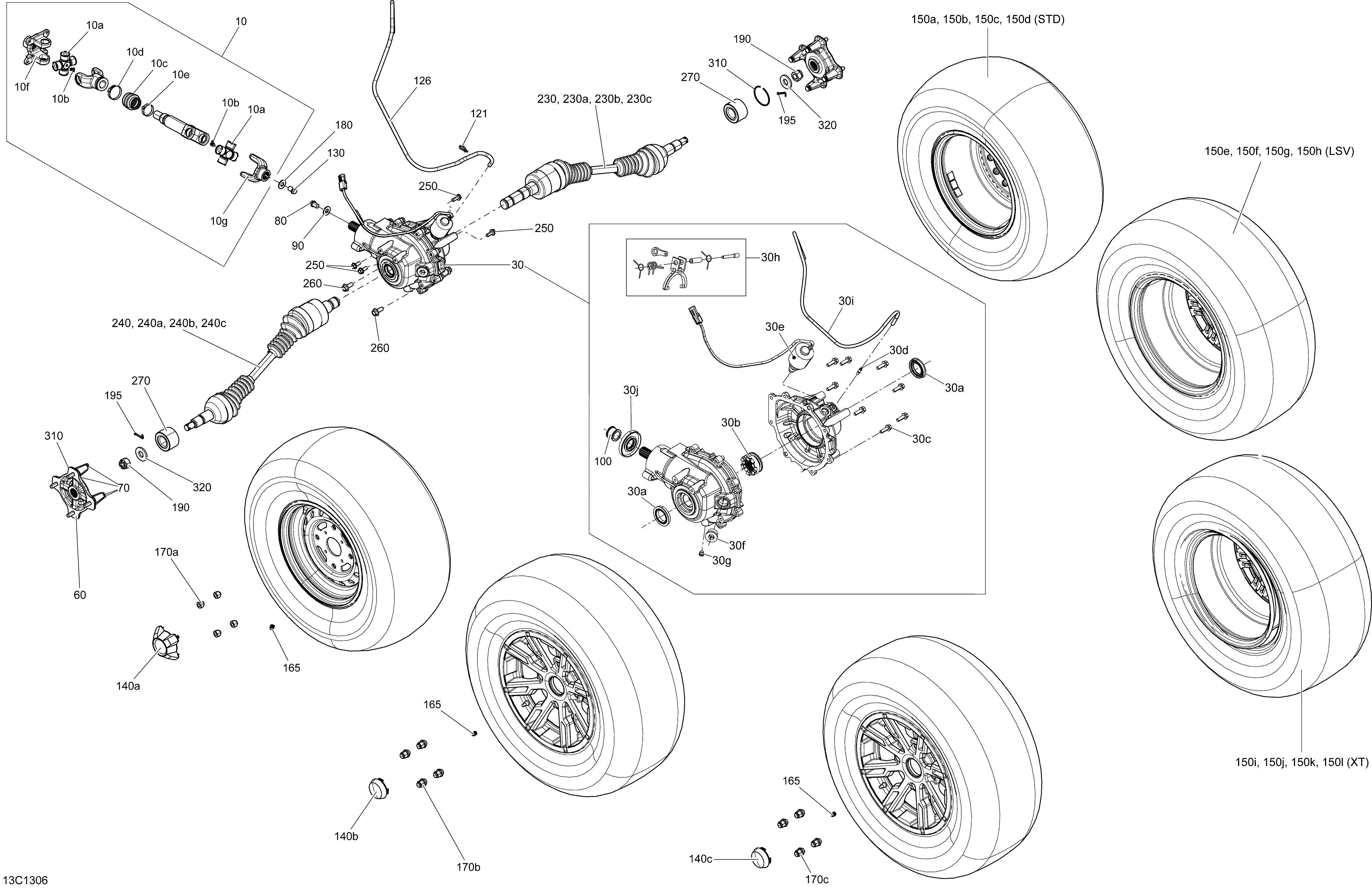

08- Drive System, Rear для BRP Commander (Electric 9Kw) STD, XT, LSV - 2013
-
№АртикулНазвание
-
10703500769 Rear Propeller Shaft Kit. Includes 10 to 10gRear Propeller Shaft Kit. Includes 10 to 10g
-
10a703000022 Unit Pack Kit. Includes 10a to 10bUnit Pack Kit. Includes 10a to 10b
-
10b705500841 Grease FittingGrease Fitting
-
10c703500255 Rubber Boot Kit. Includes 10c to 10eRubber Boot Kit. Includes 10c to 10e
-
10d293650138 Oetiker Gear ClampOetiker Gear Clamp
-
10e509000529 Oetiker Gear ClampOetiker Gear Clamp
-
10f705500526 Disc JointDisc Joint
-
10g705501372 Differential Fixed JointDifferential Fixed Joint
-
30705501579 Differential. Includes 30 to 30jDifferential. Includes 30 to 30j
-
30a705501824 SealSeal
-
30b705501825 GearGear
-
30c250000041 Socket Screw 5/16''-18 X 1''Socket Screw 5/16''-18 X 1''
-
30d705501826 Vent ValveVent Valve
-
30e710003430 SolenoidSolenoid
-
30f705501827 Drain PlugDrain Plug
-
30g705501828 Fill PlugFill Plug
-
30h705501829 Shift Yoke KitShift Yoke Kit
-
30i415080200 Hose, PolyurethaneHose, Polyurethane
-
30j705501975 SealSeal
-
60705401314 Wheel HubWheel Hub
-
70705400791 Wheel StudWheel Stud
-
80250000378 Hex Flanged Screw M12 X 16, Scotch GripHex Flanged Screw M12 X 16, Scotch Grip
-
90250200102 Flat Washer M12Flat Washer M12
-
100705502247 SleeveSleeve
-
121293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
126415080200 Hose, PolyurethaneHose, Polyurethane
-
130250000359 Hex Flanged Screw M12 x 16Hex Flanged Screw M12 x 16
-
140a705400921 Wheel Cap. STDWheel Cap. STD
-
140b705400520 Wheel Cap. LSVWheel Cap. LSV
-
140c705400520 Wheel Cap. XTWheel Cap. XT
-
150a705501539 Rear Tire. STDRear Tire. STD
-
150b705501249 Rear Rim. STDRear Rim. STD
-
150c705400193 Rim Valve With Cap. STDRim Valve With Cap. STD
-
150d705501385 1/2 OZ Weight. STD1/2 OZ Weight. STD
-
150e705501775 Rear Tire. LSVRear Tire. LSV
-
150f705501471 Rear Rim. LSVRear Rim. LSV
-
150g705400193 Rim Valve With Cap. LSVRim Valve With Cap. LSV
-
150h705501385 1/2 OZ Weight. LSV1/2 OZ Weight. LSV
-
150i705500964 Rear Tire. XTRear Tire. XT
-
150j705500965 Silver Rear Rim. XTSilver Rear Rim. XT
-
150k705400193 Rim Valve With Cap. XTRim Valve With Cap. XT
-
150l705501385 1/2 OZ Weight. XT1/2 OZ Weight. XT
-
165293000110 Valve CapValve Cap
-
170a250100042 Wheel Nut. STDWheel Nut. STD
-
170b250100082 Chrome Wheel Nut M10 X 1.25. LSVChrome Wheel Nut M10 X 1.25. LSV
-
170c250100082 Chrome Wheel Nut M10 X 1.25. XTChrome Wheel Nut M10 X 1.25. XT
-
180250200102 Flat Washer M12Flat Washer M12
-
190250100047 Hex. Castellated Nut M18Hex. Castellated Nut M18
-
195250400036 Cotter PinCotter Pin
-
230705501630 RH Half Shaft. Includes 230 to 230cRH Half Shaft. Includes 230 to 230c
-
230a705501832 CirclipCirclip
-
230b705501830 Boot Differential KitBoot Differential Kit
-
230c705501831 Boot Wheel KitBoot Wheel Kit
-
240705501631 LH Half Shaft. Includes 240 to 240cLH Half Shaft. Includes 240 to 240c
-
240a705501832 CirclipCirclip
-
240b705501830 Boot Differential KitBoot Differential Kit
-
240c705501831 Boot Wheel KitBoot Wheel Kit
-
250207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
260207502587 Hex. Flanged Screw M10 X 25, Scotch GripHex. Flanged Screw M10 X 25, Scotch Grip
-
270293350040 Cone BearingCone Bearing
-
310293370019 CirclipCirclip
-
320250200049 Spring WasherSpring Washer
