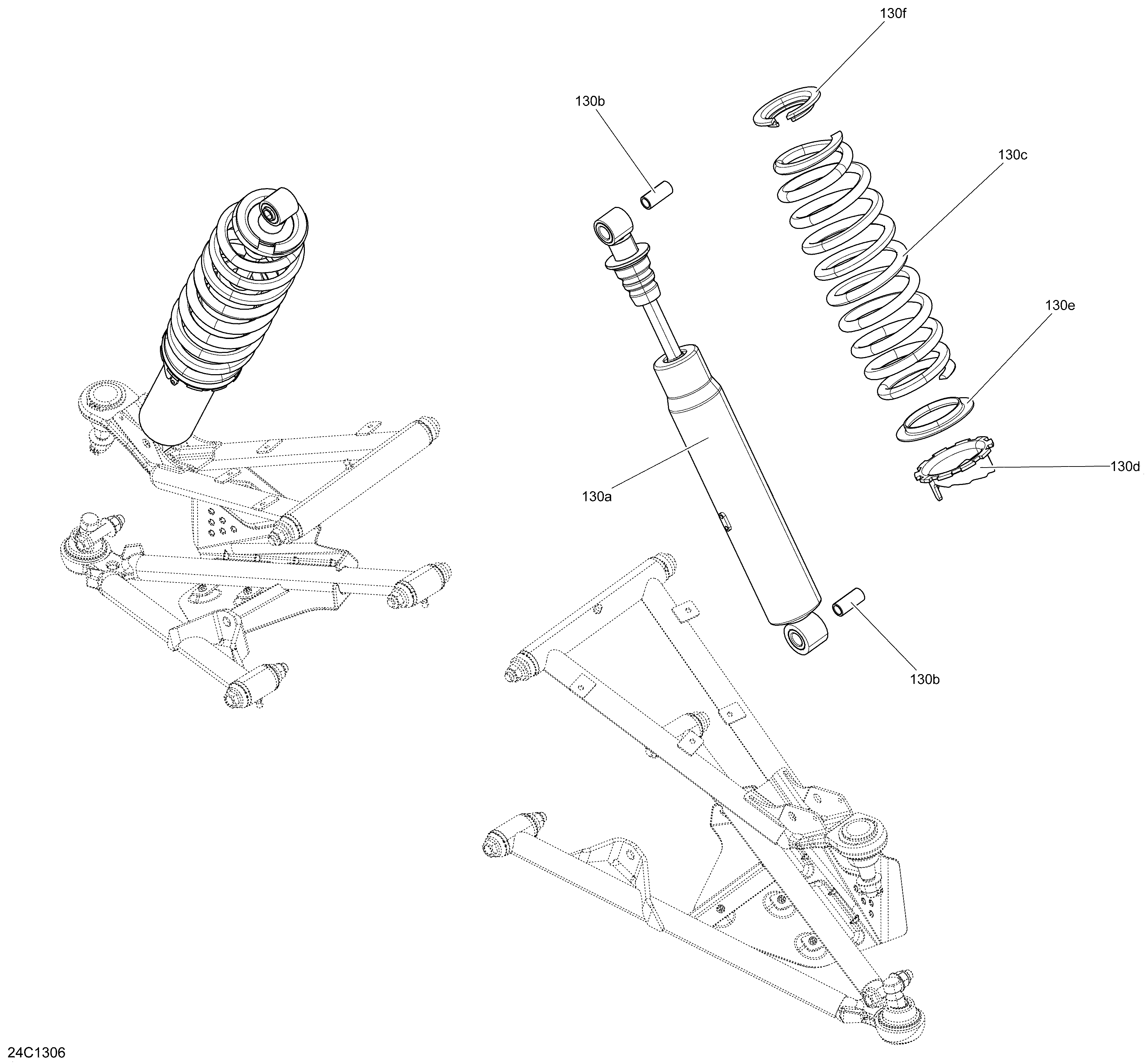

07- Front Suspension для BRP Commander (Electric 9Kw) STD, XT, LSV - 2013
-
№АртикулНазвание
-
130a706200780 Front Shock. Includes 130a to 130bFront Shock. Includes 130a to 130b
-
130b715900122 BushingBushing
-
130c706201506 SpringSpring
-
130d706000910 Adjustable RingAdjustable Ring
-
130e706000911 Protector RingProtector Ring
-
130f706000567 Spring StopperSpring Stopper
