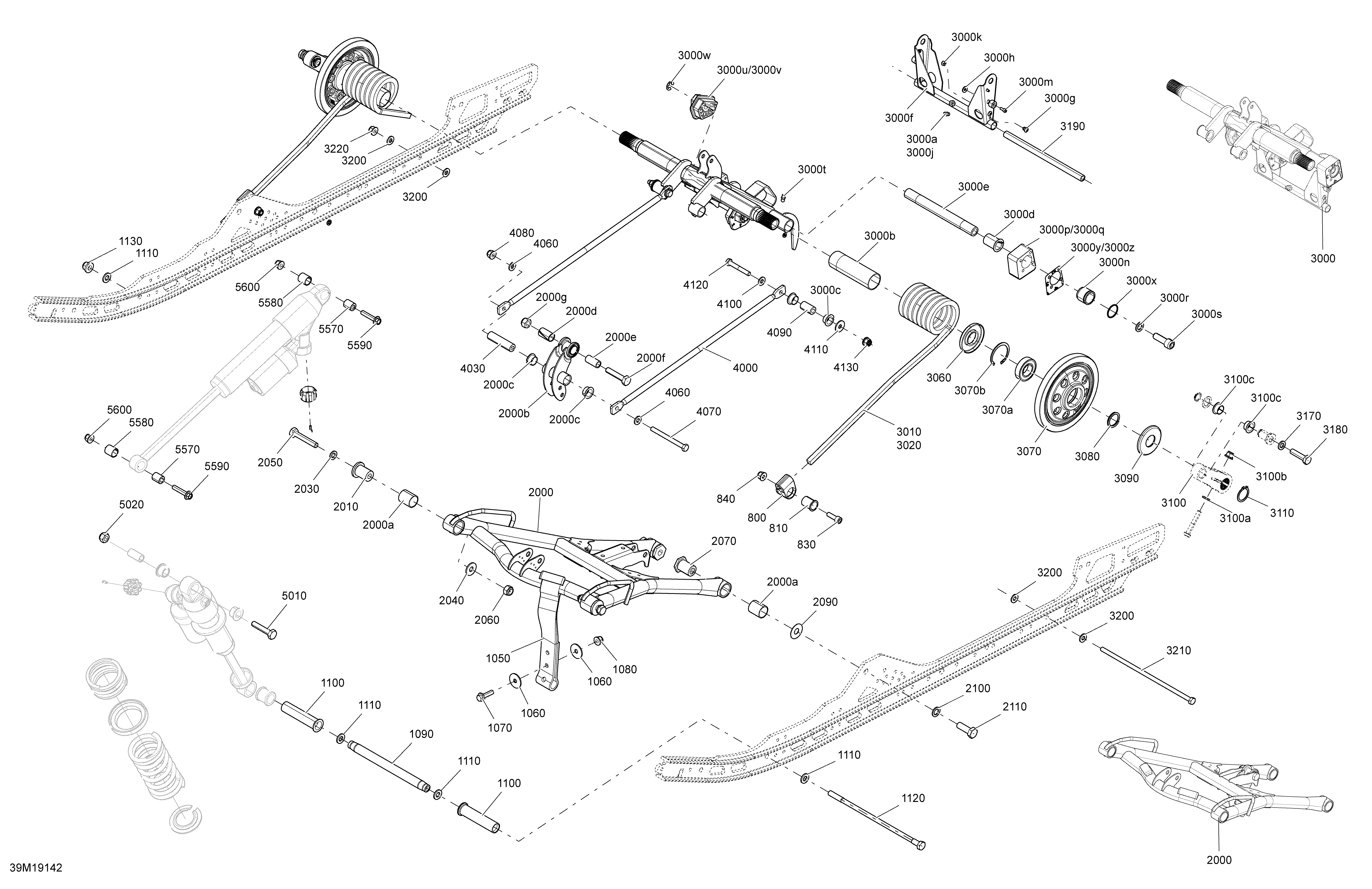

08- Rear Suspension - Upper Section для BRP Ski-Doo 005 - RENEGADE 850 E-TEC - Adrenaline_X_XRS - 2019

  • №
    Артикул
    Название
  • 800
    503191183 Spring Support
    Spring Support
  • 810
    503190754 Retainer Cushion
    Retainer Cushion
  • 830
    205082554 Socket Screw M8 X 25
    Socket Screw M8 X 25
  • 840
    233281466 Elastic Flang Nut M8
    Elastic Flang Nut M8
  • 1050
    503192759 Stopper Strap. Ensemble XRS Iron Dog
    Stopper Strap. Ensemble XRS Iron Dog
  • 1050
    503192759 Stopper Strap. Excepte Ensemble XRS Iron Dog
    Stopper Strap. Excepte Ensemble XRS Iron Dog
  • 1060
    250200128 Flat Washer 8 mm. Ensemble XRS Iron Dog
    Flat Washer 8 mm. Ensemble XRS Iron Dog
  • 1060
    250200128 Flat Washer 8 mm. Excepte Ensemble XRS Iron Dog
    Flat Washer 8 mm. Excepte Ensemble XRS Iron Dog
  • 1070
    207683044 Hex. Flanged Screw M8 X 30. Ensemble XRS Iron Dog
    Hex. Flanged Screw M8 X 30. Ensemble XRS Iron Dog
  • 1070
    207683044 Hex. Flanged Screw M8 X 30. Excepte Ensemble XRS Iron Dog
    Hex. Flanged Screw M8 X 30. Excepte Ensemble XRS Iron Dog
  • 1080
    233281466 Elastic Flang Nut M8. Excepte Ensemble XRS Iron Dog
    Elastic Flang Nut M8. Excepte Ensemble XRS Iron Dog
  • 1080
    233281466 Elastic Flang Nut M8. Ensemble XRS Iron Dog
    Elastic Flang Nut M8. Ensemble XRS Iron Dog
  • 1090
    503193435 Pivot Axle
    Pivot Axle
  • 1100
    503191259 Center Bushing
    Center Bushing
  • 1110
    250200143 Flat Washer
    Flat Washer
  • 1120
    503193227 Bolt M10 X 251MM
    Bolt M10 X 251MM
  • 1130
    233201466 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 2000
    503194078 Front Arm. Ensemble XRS Iron Dog. Inclut 2000 a 2000g
    Front Arm. Ensemble XRS Iron Dog. Inclut 2000 a 2000g
  • 2000
    503194529 Front Arm Ass'y. Excepte Ensemble XRS Iron Dog
    Front Arm Ass'y. Excepte Ensemble XRS Iron Dog
  • 2000a
    503191554 Bushing. Ensemble XRS Iron Dog
    Bushing. Ensemble XRS Iron Dog
  • 2000b
    503194079 Rocker. Ensemble XRS Iron Dog
    Rocker. Ensemble XRS Iron Dog
  • 2000c
    503191555 Swivel Bushing. Ensemble XRS Iron Dog
    Swivel Bushing. Ensemble XRS Iron Dog
  • 2000d
    503193037 Bushing. Ensemble XRS Iron Dog
    Bushing. Ensemble XRS Iron Dog
  • 2000e
    503189282 Bushing. Ensemble XRS Iron Dog
    Bushing. Ensemble XRS Iron Dog
  • 2000f
    207005044 Hex. Screw M10 X 1.5 X 50. Ensemble XRS Iron Dog
    Hex. Screw M10 X 1.5 X 50. Ensemble XRS Iron Dog
  • 2000g
    233601416 Elastic Locking Nut M10 X 1.5. Ensemble XRS Iron Dog
    Elastic Locking Nut M10 X 1.5. Ensemble XRS Iron Dog
  • 2010
    503190698 Axle
    Axle
  • 2030
    503192496 Washer
    Washer
  • 2040
    503191926 Washer
    Washer
  • 2050
    207006056 Hex. Cap Screw M10 X 60
    Hex. Cap Screw M10 X 60
  • 2060
    233601466 Elastic Locking Nut M10
    Elastic Locking Nut M10
  • 2070
    503191966 Lower Axle
    Lower Axle
  • 2090
    503190656 Washer
    Washer
  • 2100
    503192491 Washer
    Washer
  • 2110
    250000537 Hex. Cap Screw M12 X 35
    Hex. Cap Screw M12 X 35
  • 3000
    503193617 Rear Arm Ass'y. Sans systeme d’ajustement rapide. Inclut 3000 a 3000z
    Rear Arm Ass'y. Sans systeme d’ajustement rapide. Inclut 3000 a 3000z
  • 3000
    503193618 Rear Arm Ass'y. Avec systeme d’ajustement rapide. Inclut 3000 a 3000w
    Rear Arm Ass'y. Avec systeme d’ajustement rapide. Inclut 3000 a 3000w
  • 3000
    503193862 Rear Arm Ass?y. Ensemble XRS Iron Dog. Inclut 3000 a 3000z
    Rear Arm Ass?y. Ensemble XRS Iron Dog. Inclut 3000 a 3000z
  • 3000a
    232061404 Hexagonal Nut M6
    Hexagonal Nut M6
  • 3000b
    503192767 Bushing
    Bushing
  • 3000c
    503191555 Swivel Bushing
    Swivel Bushing
  • 3000d
    503191640 Cushion
    Cushion
  • 3000e
    503192981 Lower Shaft. Excepte Ensemble XRS Iron Dog
    Lower Shaft. Excepte Ensemble XRS Iron Dog
  • 3000e
    503193867 Lower Shaft. Ensemble XRS Iron Dog
    Lower Shaft. Ensemble XRS Iron Dog
  • 3000f
    503192823 Pivot Arm Ass'y. Inclut 3000f a 3000m
    Pivot Arm Ass'y. Inclut 3000f a 3000m
  • 3000g
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 3000h
    517225900 Flat Washer
    Flat Washer
  • 3000j
    408200700 Grease Fitting
    Grease Fitting
  • 3000k
    232551414 Elastic Stop Nut M5
    Elastic Stop Nut M5
  • 3000m
    205041060 Socket Head Screw M4X 10
    Socket Head Screw M4X 10
  • 3000n
    503192749 Guide Block
    Guide Block
  • 3000p
    503192918 LH Cam Block
    LH Cam Block
  • 3000q
    503192919 RH Cam Block
    RH Cam Block
  • 3000r
    503192491 Washer
    Washer
  • 3000s
    205523554 Socket Head Screw M12 X 35
    Socket Head Screw M12 X 35
  • 3000t
    408200700 Grease Fitting
    Grease Fitting
  • 3000u
    503191565 LH Cam Adjuster
    LH Cam Adjuster
  • 3000v
    503191566 RH Cam Adjuster
    RH Cam Adjuster
  • 3000w
    293370013 E-Circlip
    E-Circlip
  • 3000x
    503192921 O-Ring. Excepte QAS
    O-Ring. Excepte QAS
  • 3000y
    516004900 LH Block Sticker Decal. Excepte QAS
    LH Block Sticker Decal. Excepte QAS
  • 3000z
    516004901 RH Block Sticker Decal. Excepte QAS
    RH Block Sticker Decal. Excepte QAS
  • 3010
    503192105 Black, LH Spring Square. SKU - MZKN - MYKA - MYKB
    Black, LH Spring Square. SKU - MZKN - MYKA - MYKB
  • 3010
    503193158 Black, LH Spring Square. Excepte SKU - MZKN - MYKA - MYKB
    Black, LH Spring Square. Excepte SKU - MZKN - MYKA - MYKB
  • 3020
    503192104 Black, RH Spring Square. SKU - MZKN - MYKA - MYKB
    Black, RH Spring Square. SKU - MZKN - MYKA - MYKB
  • 3020
    503193159 Black, RH Spring Square. Excepte SKU - MZKN - MYKA - MYKB
    Black, RH Spring Square. Excepte SKU - MZKN - MYKA - MYKB
  • 3060
    503190434 Labyrinth Seal
    Labyrinth Seal
  • 3070
    503192808 Black Wheel Ass'y 155 mm. Inclut 3070 a 3070b
    Black Wheel Ass'y 155 mm. Inclut 3070 a 3070b
  • 3070a
    503193548 Ball Bearing
    Ball Bearing
  • 3070b
    415129780 Retaining Ring
    Retaining Ring
  • 3080
    503189146 Axle Spring
    Axle Spring
  • 3090
    503192592 Labyrinth Ring
    Labyrinth Ring
  • 3100
    503193069 Link Ass'y. Excepte Ensemble XRS Iron Dog. Inclut 3100 a 3100c
    Link Ass'y. Excepte Ensemble XRS Iron Dog. Inclut 3100 a 3100c
  • 3100
    503194496 Link Ass'y. Ensemble XRS Iron Dog. Inclut 3100 a 3100c
    Link Ass'y. Ensemble XRS Iron Dog. Inclut 3100 a 3100c
  • 3100a
    503192494 Washer
    Washer
  • 3100b
    233281466 Elastic Flang Nut M8
    Elastic Flang Nut M8
  • 3100c
    503191555 Swivel Bushing
    Swivel Bushing
  • 3110
    293370080 Retaining Ring
    Retaining Ring
  • 3170
    503192496 Washer
    Washer
  • 3180
    207204056 Cap Screw Hex. M10 X 40
    Cap Screw Hex. M10 X 40
  • 3190
    503189156 Pivot Arm Axle
    Pivot Arm Axle
  • 3200
    503192494 Washer
    Washer
  • 3210
    503192440 Bolt M8 X 248mm
    Bolt M8 X 248mm
  • 3220
    233281466 Elastic Flang Nut M8
    Elastic Flang Nut M8
  • 4000
    503193005 Rod Link
    Rod Link
  • 4030
    503190643 Axle Bar (Long)
    Axle Bar (Long)
  • 4060
    503192494 Washer
    Washer
  • 4070
    503193372 Screw M8 X 90
    Screw M8 X 90
  • 4080
    233281466 Elastic Flang Nut M8
    Elastic Flang Nut M8
  • 4090
    503192555 Axle Bar
    Axle Bar
  • 4100
    503192494 Washer
    Washer
  • 4110
    234082410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 4120
    207085556 Hex. Screw M8 X 55
    Hex. Screw M8 X 55
  • 4130
    233281466 Elastic Flang Nut M8
    Elastic Flang Nut M8
  • 5010
    207005044 Hex. Screw M10 X 1.5 X 50. Ensemble XRS Iron Dog
    Hex. Screw M10 X 1.5 X 50. Ensemble XRS Iron Dog
  • 5020
    233601416 Elastic Locking Nut M10 X 1.5. Ensemble XRS Iron Dog
    Elastic Locking Nut M10 X 1.5. Ensemble XRS Iron Dog
  • 5570
    503192606 Rear Shock Axle
    Rear Shock Axle
  • 5580
    505072663 Leg Cushion
    Leg Cushion
  • 5590
    207684044 Hex. Flanged Screw M8 X 40
    Hex. Flanged Screw M8 X 40
  • 5600
    233281466 Elastic Flang Nut M8
    Elastic Flang Nut M8
