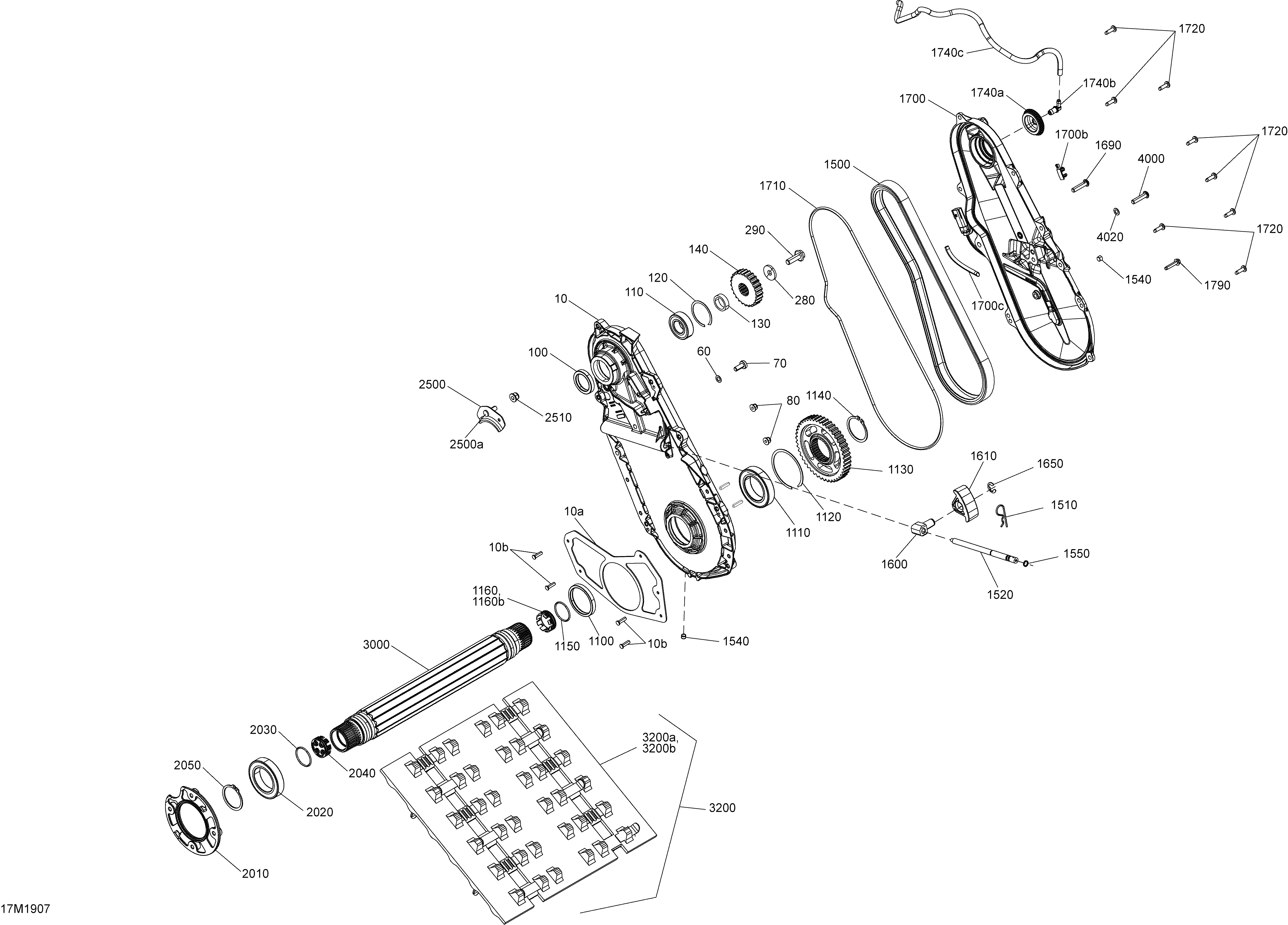

05- Drive - 850R - E-TEC для BRP Ski-Doo 005 - RENEGADE 850 E-TEC - Adrenaline_X_XRS - 2019

№

Артикул

Название
10

504153718 Chaincase Ass'y. Includes 10 to 10b

Chaincase Ass'y. Includes 10 to 10b

27 490 ₽
10a

861805514 Kit Plate Ass'y

Kit Plate Ass'y

11 320 ₽
10b

233261434 Flanged Elastic Nut M6

Flanged Elastic Nut M6

2 310 ₽
60

504082900 Washer

Washer

700 ₽
70

250000740 Torx Screw M8 X 20, Scotch Grip

Torx Screw M8 X 20, Scotch Grip

240 ₽
80

233261434 Flanged Elastic Nut M6

Flanged Elastic Nut M6

2 310 ₽
100

293200168 Oil Seal

Oil Seal

3 360 ₽
110

293350115 Ball Bearing

Ball Bearing

3 850 ₽
120

504152576 Circlip

Circlip

3 090 ₽
130

504152628 Shim

Shim

2 780 ₽
140

504084300 Sprocket 25 Teeth (Large)

Sprocket 25 Teeth (Large)

8 110 ₽
280

504152784 Spring Washer M10

Spring Washer M10

590 ₽
290

207503046 Hex. Flanged Screw M10 X 30, Scotch Grip

Hex. Flanged Screw M10 X 30, Scotch Grip

1 050 ₽
1100

293200159 Oil Seal

Oil Seal

3 330 ₽
1110

293350059 Ball Bearing

Ball Bearing

21 110 ₽
1120

504152582 Circlip

Circlip

3 090 ₽
1130

504152593 Sprocket, 45 Teeth

Sprocket, 45 Teeth

50 720 ₽
1140

504152572 Circlip

Circlip

3 130 ₽
1150

293300201 O-Ring

O-Ring

330 ₽
1160

504153696 Magnetic Cap Ass'y. Includes 1160 to 1160a

Magnetic Cap Ass'y. Includes 1160 to 1160a

2 260 ₽
1160a

504153697 Magnetic Cap

Magnetic Cap

520 ₽
1500

504152631 Drive Chain, 108 Links

Drive Chain, 108 Links

48 480 ₽
1510

414575600 Hair Pin

Hair Pin

720 ₽
1520

504153760 Adjustment Screw

Adjustment Screw

7 740 ₽
1540

250500012 Allen Drive Plug 1/8-27 PTF

Allen Drive Plug 1/8-27 PTF

1 860 ₽
1545

504153704 Magnetic Plug

Magnetic Plug

2 830 ₽
1550

293300202 O-Ring

O-Ring

360 ₽
1600

504153559 Tensioner

Tensioner

4 350 ₽
1610

504153312 Slider Chain

Slider Chain

11 040 ₽
1650

293370105 Circlip

Circlip

550 ₽
1690

250000764 Hex. Button Head Screw M8 X 1.25 X 35

Hex. Button Head Screw M8 X 1.25 X 35

740 ₽
1700

504153891 Chain Case Cover Ass'y. Includes 1700 to 1700c

Chain Case Cover Ass'y. Includes 1700 to 1700c

15 290 ₽
1700b

515178223 Clip

Clip

740 ₽
1700c

415130141 Sleeve

Sleeve

21 810 ₽
1710

293300199 O-Ring

O-Ring

960 ₽
1720

250001012 Torx T-30 Pan HD Taptite M6X20

Torx T-30 Pan HD Taptite M6X20

190 ₽
1740

504153535 Cap Ass'y. Includes 1740 to 1740c

Cap Ass'y. Includes 1740 to 1740c

17 960 ₽
1740a

504152860 Cap

Cap

6 480 ₽
1740b

414580700 Male Connector

Male Connector

1 450 ₽
1740c

415080200 Hose, Polyurethane, iD 5.7mm (10M Roll)

Hose, Polyurethane, iD 5.7mm (10M Roll)

1 980 ₽
2030

293300201 O-Ring

O-Ring

330 ₽
2040

504153697 Magnetic Cap

Magnetic Cap

520 ₽
2050

504152572 Circlip

Circlip

3 130 ₽
2500

504153695 Bearing Housing Ass'y. Includes 2500 to 2500a

Bearing Housing Ass'y. Includes 2500 to 2500a

6 200 ₽
2500a

250300028 Clinch Stud, M8 X 25

Clinch Stud, M8 X 25

410 ₽
2510

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8

490 ₽
3000

504153830 Axle Drive Ass'y. Includes 3000 to 3000b

Axle Drive Ass'y. Includes 3000 to 3000b

34 390 ₽
3000a

504153426 Retaining Ring

Retaining Ring

1 600 ₽
3000b

293350059 Ball Bearing

Ball Bearing

21 110 ₽
3200

504153101 Track Ass'y 15'' X 137'' X 1.25''. Ice Ripper XT. Includes 3200 to 3200b

Track Ass'y 15'' X 137'' X 1.25''. Ice Ripper XT. Includes 3200 to 3200b

101 780 ₽
3200

504152905 Track Ass'y 15'' X 137'' X 1.2''. Rip Saw. Includes 3200 to 3200b

Track Ass'y 15'' X 137'' X 1.2''. Rip Saw. Includes 3200 to 3200b

82 340 ₽
3200a

415129528 Track Guide

Track Guide

1 040 ₽
3200b

504152651 Cleat

Cleat

2 770 ₽
4000

250000764 Hex. Button Head Screw M8 X 1.25 X 35

Hex. Button Head Screw M8 X 1.25 X 35

740 ₽
4020

504082900 Washer

Washer

700 ₽
