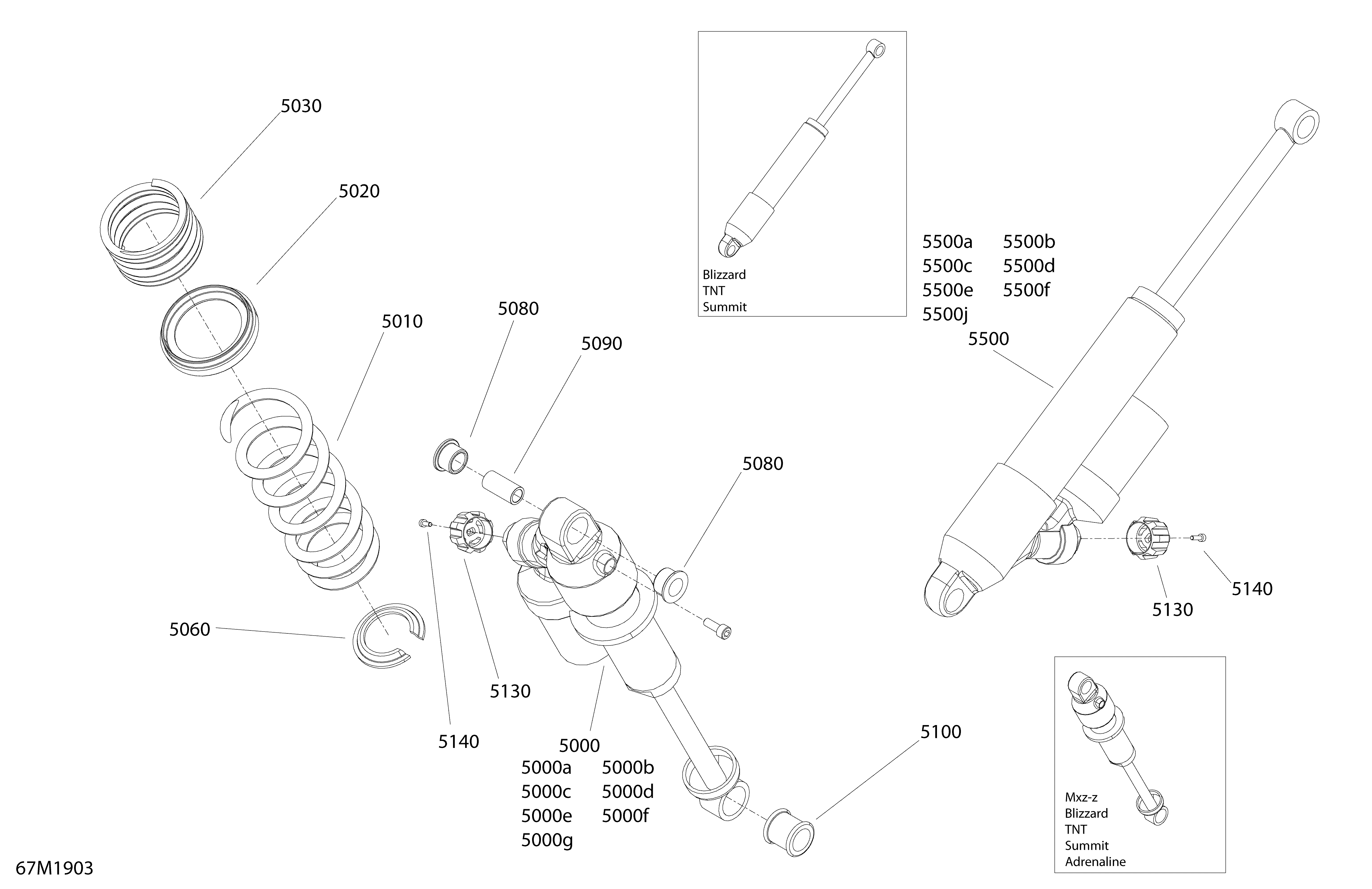

08- Rear Shocks - X для BRP Ski-Doo 005 - RENEGADE 850 E-TEC - Adrenaline_X_XRS - 2019

  • №
    Артикул
    Название
  • 5000
    503193536 Central Shock
    Central Shock
  • 5010
    503193837 Black, Spring (Short)
    Black, Spring (Short)
  • 5020
    503191281 Spring Spacer
    Spring Spacer
  • 5030
    503193067 Black, Spring (Short)
    Black, Spring (Short)
  • 5060
    503194270 Spring Stopper
    Spring Stopper
  • 5080
    503189117 Bushing Urethane
    Bushing Urethane
  • 5090
    503189282 Bushing
    Bushing
  • 5100
    503189271 Bushing
    Bushing
  • 5150
    207005044 Hex. Screw M10 X 1.5 X 50. not shown
    Hex. Screw M10 X 1.5 X 50. not shown
  • 5160
    233601466 Elastic Locking Nut M10. not shown
    Elastic Locking Nut M10. not shown
  • 5500
    503194669 Rear Shock. Package X without Rear shock adjuster knob. Includes 5500 to 5500j
    Rear Shock. Package X without Rear shock adjuster knob. Includes 5500 to 5500j
  • 5500
    503194670 Rear Shock. Package X With Rear shock adjuster knob. Includes 5500 to 5500j
    Rear Shock. Package X With Rear shock adjuster knob. Includes 5500 to 5500j
  • 5500a
    415093807 O-Ring. not shown
    O-Ring. not shown
  • 5500b
    415093806 Piston Ring. not shown
    Piston Ring. not shown
  • 5500c
    505070398 Air Valve. not shown
    Air Valve. not shown
  • 5500d
    505070399 Screw. not shown
    Screw. not shown
  • 5500e
    505070400 O-Ring. not shown
    O-Ring. not shown
  • 5500f
    415093804 O-Ring. not shown
    O-Ring. not shown
  • 5500g
    415093810 Bolt. Without Rear shock adjuster knob. not shown
    Bolt. Without Rear shock adjuster knob. not shown
  • 5500h
    415038700 O-Ring. Without Rear shock adjuster knob. not shown
    O-Ring. Without Rear shock adjuster knob. not shown
  • 5500j
    415130165 Base Valve. not shown
    Base Valve. not shown
  • 5130
    503193033 Shock Adjuster Knob. Rear shock adjuster knob
    Shock Adjuster Knob. Rear shock adjuster knob
  • 5140
    250000644 Allen Screw M3 X 0.5 X 10. Rear shock adjuster knob
    Allen Screw M3 X 0.5 X 10. Rear shock adjuster knob
