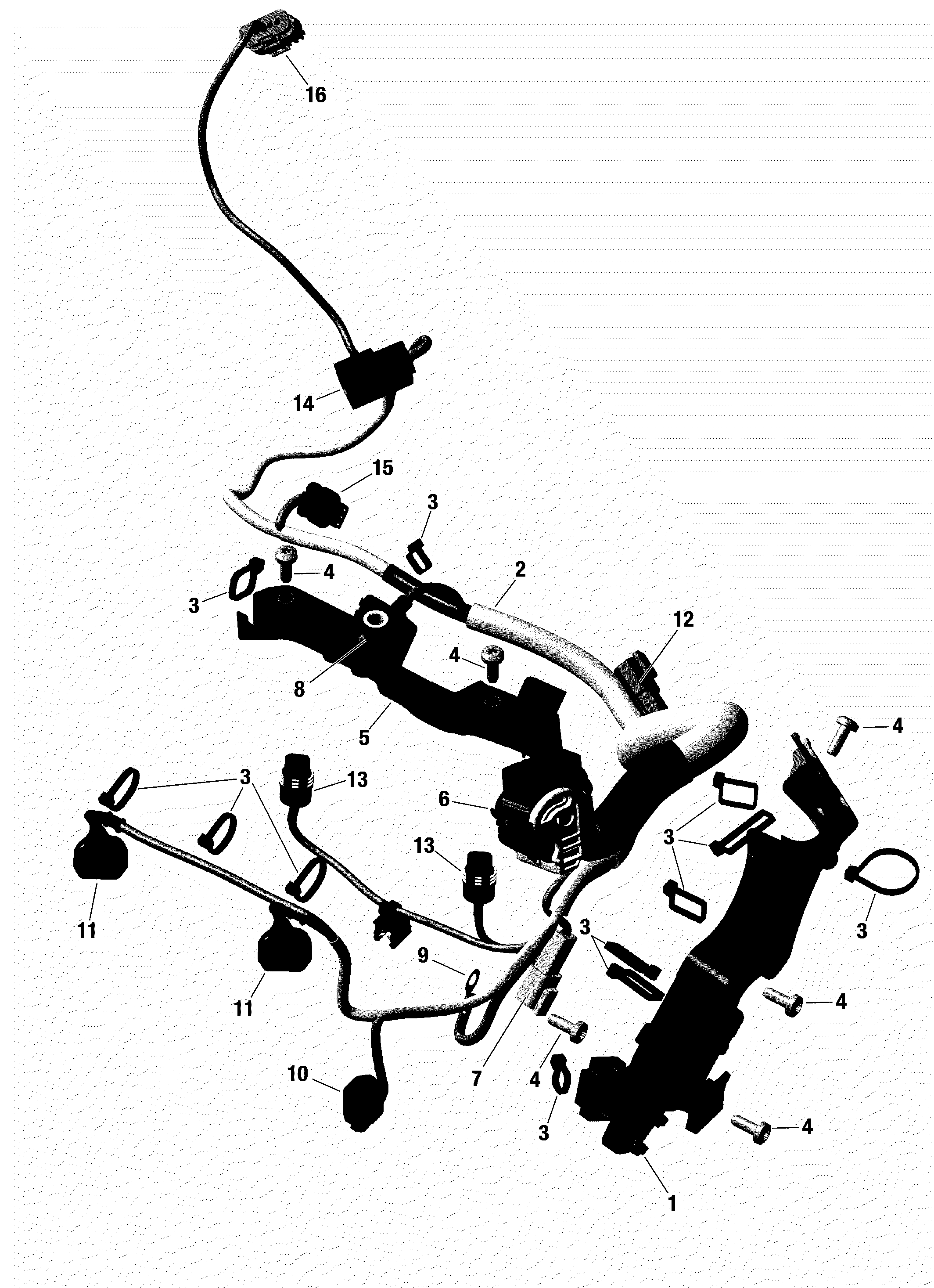

10- Engine Harness - 598 RS для BRP Ski-Doo 004 - MXZ 600 RACING - 2019
-
№АртикулНазвание
-
1420260161 Harness SupportHarness Support
-
2420864451 Wiring HarnessWiring Harness
-
3293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
4420640324 Torx Screw M6 X 16Torx Screw M6 X 16
-
5420260166 Harness SupportHarness Support
-
7409206900 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
8278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
10415130195 ConnectorConnector
-
11515176129 Female HousingFemale Housing
-
12409206900 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
13409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
14515178202 Connector CoilConnector Coil
