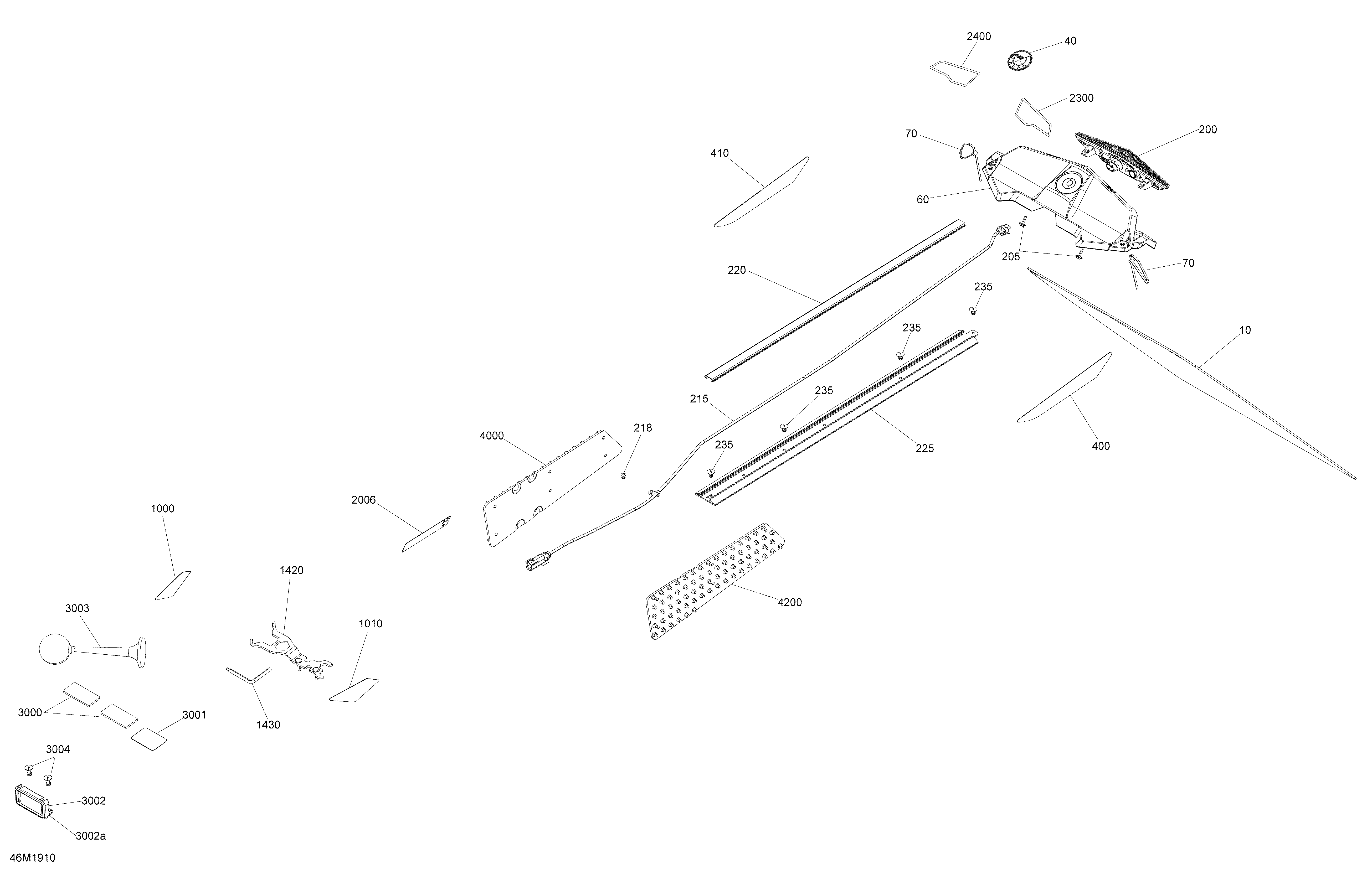

09- Utilities - 600 Racing - Europe для BRP Ski-Doo 004 - MXZ 600 RACING - 2019
-
№АртикулНазвание
-
10520001667 Snow FlapSnow Flap
-
40516008738 BRP Logo, 48mmBRP Logo, 48mm
-
60520001487 Light FairingLight Fairing
-
70293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
200520001143 Rear LightRear Light
-
205250000725 Screw M4 X 16Screw M4 X 16
-
215515178265 Rear Light HarnessRear Light Harness
-
218390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
220520001719 Radiator TrimRadiator Trim
-
225520001703 Wire ProtectorWire Protector
-
235293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
400861805523 LH Rear ReflectorLH Rear Reflector
-
410861805523 LH Rear ReflectorLH Rear Reflector
-
1000520001493 RH Front ReflectorRH Front Reflector
-
1010520001494 LH Front ReflectorLH Front Reflector
-
1420520001499 WrenchWrench
-
1430417127579 Belt Installation ToolBelt Installation Tool
-
2006516008823 Europe DecalEurope Decal
-
2300516008594 Safety LabelSafety Label
-
2400516006892 RH English Warning DecalRH English Warning Decal
-
3000520000271 Amber, ReflectorAmber, Reflector
-
3001415037900 White, ReflectorWhite, Reflector
-
3002520001787 Reflector Support. Includes 3002 to 3002aReflector Support. Includes 3002 to 3002a
-
3002a520000871 Deep Black, Reflector SupportDeep Black, Reflector Support
-
3003549011291 HornHorn
-
3004293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
3400520001898 Operator Guide EnglishOperator Guide English
-
4000860200164 Grip Plate KitGrip Plate Kit
-
4200860200164 Grip Plate KitGrip Plate Kit
-
6000293150108 Pop Rivet 3/16”. Not ShownPop Rivet 3/16”. Not Shown
-
6010517124300 Washer. Not ShownWasher. Not Shown
-
6020293150100 Pop Rivet 3/16''. Not ShownPop Rivet 3/16''. Not Shown
-
6030293150103 Pop Rivet 3/16''. Not ShownPop Rivet 3/16''. Not Shown
