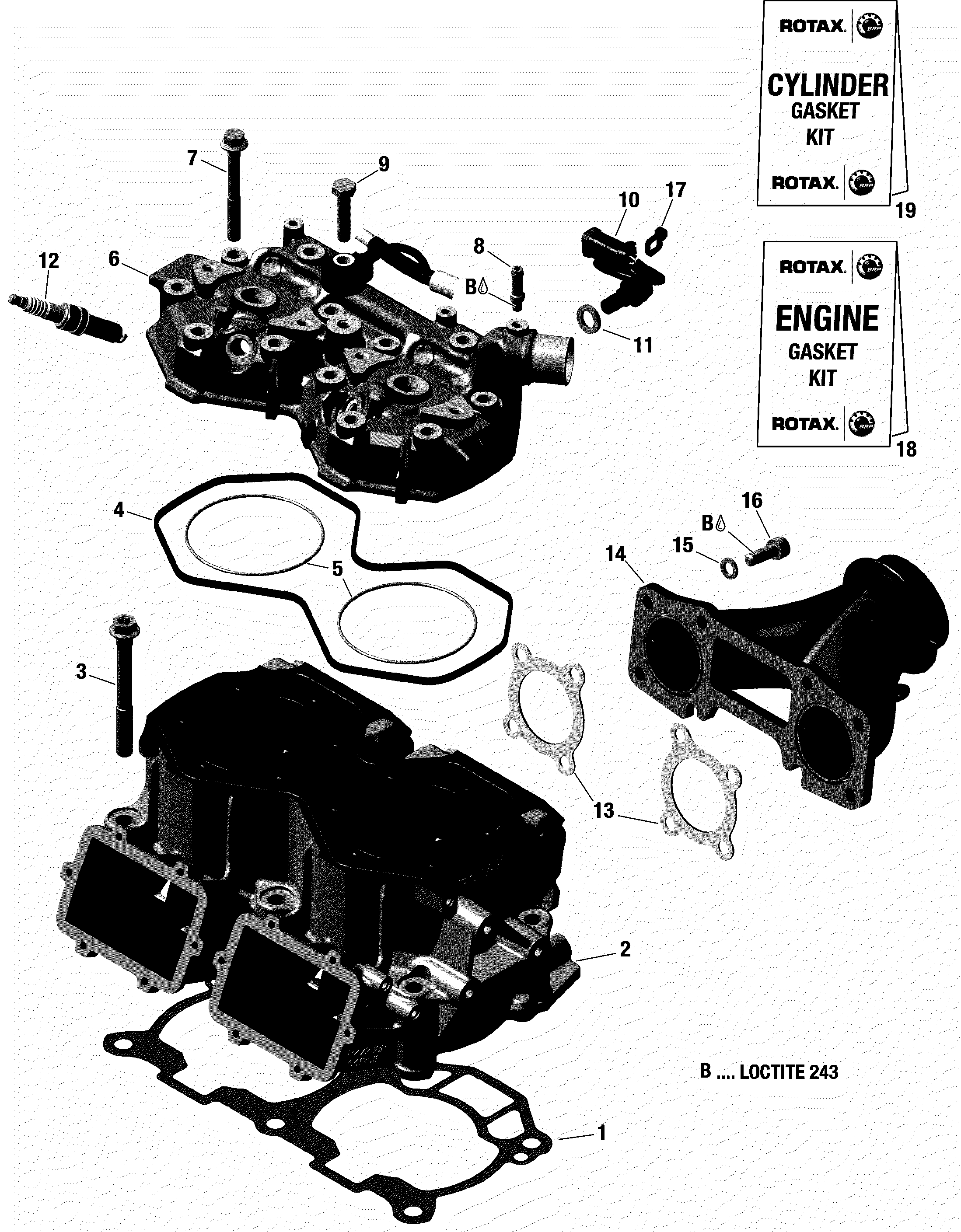

01- Cylinder And Cylinder Head - 598 RS для BRP Ski-Doo 004 - MXZ 600 RACING - 2019
-
№АртикулНазвание
-
1420831070 Gasket 0.5Gasket 0.5
-
1420831071 Gasket 0.6Gasket 0.6
-
1420831072 Gasket 0.7Gasket 0.7
-
1420831073 Gasket 0.8Gasket 0.8
-
2420413514 CylinderCylinder
-
3420441187 Flanged Torx Screw M10 X 90 -SW 13/T50Flanged Torx Screw M10 X 90 -SW 13/T50
-
4420430044 Square RingSquare Ring
-
5420831825 O-Ring CylinderO-Ring Cylinder
-
6420413427 Cylinder Head. Except EuropeCylinder Head. Except Europe
-
6420413428 Cylinder Head. EuropeCylinder Head. Europe
-
7420640954 Hex. Collar Screw M8 X 68.5Hex. Collar Screw M8 X 68.5
-
8420924724 Hose NippleHose Nipple
-
9207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
10420664508 Temperature SensorTemperature Sensor
-
11420250015 Washer, CopperWasher, Copper
-
12415130211 Spark PlugSpark Plug
-
13420430487 GasketGasket
-
14420873040 Exhaust ManifoldExhaust Manifold
-
15420427290 WasherWasher
-
16420841051 Allen Screw M8 X 22Allen Screw M8 X 22
-
17293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
18420894266 Gasket Set EngineGasket Set Engine
-
19420894261 Gasket Set CylinderGasket Set Cylinder
