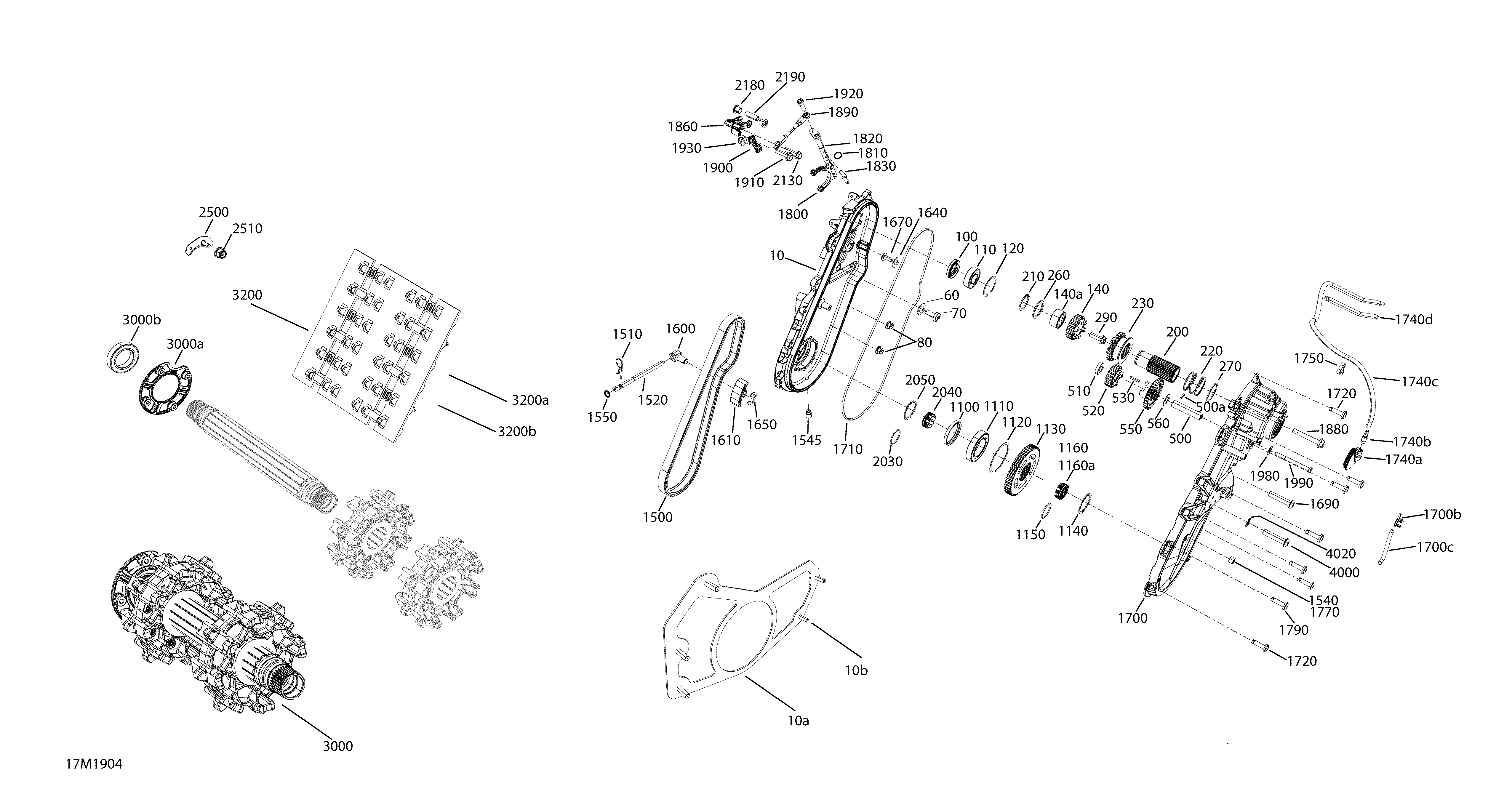

05- Drive для BRP Ski-Doo 004 - GRAND TOURING 900 ACE Turbo - 2019
-
№АртикулНазвание
-
10504153498 Chaincase Ass'y. Includes 10 to 10bChaincase Ass'y. Includes 10 to 10b
-
10a861805514 Kit Plate Ass'yKit Plate Ass'y
-
10b233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
60504082900 WasherWasher
-
70250000740 Torx Screw M8 X 20, Scotch GripTorx Screw M8 X 20, Scotch Grip
-
80233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
100293200168 Oil SealOil Seal
-
110293350115 Ball BearingBall Bearing
-
120504152576 CirclipCirclip
-
140504153888 Sprocket 25 Teeth Ass'y. Includes 140 to 140aSprocket 25 Teeth Ass'y. Includes 140 to 140a
-
140a293350123 Bearing NeedleBearing Needle
-
200504153500 Connecting Shaft Ass'yConnecting Shaft Ass'y
-
210293370129 CirclipCirclip
-
220504153179 Spring ReleaseSpring Release
-
230504153502 Sliding Gear 27 Teeth MachinedSliding Gear 27 Teeth Machined
-
260504152689 WasherWasher
-
270293370055 CirclipCirclip
-
290207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
500504153519 Axle Reverse Ass'y. Includes 500 to 500aAxle Reverse Ass'y. Includes 500 to 500a
-
500a250400010 Rolled Pin M3 X 10Rolled Pin M3 X 10
-
510504078700 RingRing
-
520504153736 Sprocket 19 Teeth Ass'ySprocket 19 Teeth Ass'y
-
530570048600 Alignement RodAlignement Rod
-
550504153738 Gear Straight 29 Teeth Ass'yGear Straight 29 Teeth Ass'y
-
560504077300 SpacerSpacer
-
1100293200159 Oil SealOil Seal
-
1110293350059 Ball BearingBall Bearing
-
1120504152582 CirclipCirclip
-
1130504152593 Sprocket, 45 TeethSprocket, 45 Teeth
-
1140504152572 CirclipCirclip
-
1150293300201 O-RingO-Ring
-
1160504153696 Magnetic Cap Ass'y. Includes 1160 to 1160aMagnetic Cap Ass'y. Includes 1160 to 1160a
-
1160a504153697 Magnetic CapMagnetic Cap
-
1500504152631 Drive Chain, 108 LinksDrive Chain, 108 Links
-
1510414575600 Hair PinHair Pin
-
1520504153760 Adjustment ScrewAdjustment Screw
-
1540250500012 Allen Drive Plug 1/8-27 PTFAllen Drive Plug 1/8-27 PTF
-
1545504153704 Magnetic PlugMagnetic Plug
-
1550293300202 O-RingO-Ring
-
1600504153559 TensionerTensioner
-
1610504153312 Slider ChainSlider Chain
-
1640250200185 Copper WasherCopper Washer
-
1650293370105 CirclipCirclip
-
1670250000717 Torx Head Screw M6 X 1.0 X 16Torx Head Screw M6 X 1.0 X 16
-
1690250000764 Hex. Button Head Screw M8 X 1.25 X 35Hex. Button Head Screw M8 X 1.25 X 35
-
1700504153503 Chaincase Cover Ass'y. Includes 1700 to 1700cChaincase Cover Ass'y. Includes 1700 to 1700c
-
1700b515178223 ClipClip
-
1700c415130141 SleeveSleeve
-
1710293300199 O-RingO-Ring
-
1720250001012 Torx T-30 Pan HD Taptite M6X20Torx T-30 Pan HD Taptite M6X20
-
1740a504152930 CapCap
-
1740b293710035 Straight FittingStraight Fitting
-
1740c415080200 Hose, Polyurethane, iD 5.7mm (10M Roll)Hose, Polyurethane, iD 5.7mm (10M Roll)
-
1740d504152900 Protector TubeProtector Tube
-
1750293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
1770250500012 Allen Drive Plug 1/8-27 PTFAllen Drive Plug 1/8-27 PTF
-
1800504153590 Fork Ass'yFork Ass'y
-
1810293300202 O-RingO-Ring
-
1820504153508 Axle ReverseAxle Reverse
-
1830250400045 Spring Pin M5 X 16Spring Pin M5 X 16
-
1860504153532 Machined LeverMachined Lever
-
1880207564044 Hex. Flanged Screw M6 X 40, Scotch GripHex. Flanged Screw M6 X 40, Scotch Grip
-
1890504153657 Rod Actuating Adjustable Ass'yRod Actuating Adjustable Ass'y
-
1900504153707 Rod Actuating Ass'yRod Actuating Ass'y
-
1910207562544 Hex. Flanged Screw M6X1.0X25Hex. Flanged Screw M6X1.0X25
-
1920205562044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
1930233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1980504082900 WasherWasher
-
1990207089044 Hex. Screw M8 X 90Hex. Screw M8 X 90
-
2030293300201 O-RingO-Ring
-
2040504153697 Magnetic CapMagnetic Cap
-
2050504152572 CirclipCirclip
-
2130207562544 Hex. Flanged Screw M6X1.0X25Hex. Flanged Screw M6X1.0X25
-
2180504153735 BushingBushing
-
2190504153648 SpacerSpacer
-
2500504153695 Bearing Housing Ass'yBearing Housing Ass'y
-
2510233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
3000504153838 Axle Drive Ass'y. Includes 3000 to 3000bAxle Drive Ass'y. Includes 3000 to 3000b
-
3000a504153426 Retaining RingRetaining Ring
-
3000b293350059 Ball BearingBall Bearing
-
3200504153789 Track 15 X 137 X 1,25. Includes 3200 to 3200bTrack 15 X 137 X 1,25. Includes 3200 to 3200b
-
3200a415129528 Track GuideTrack Guide
-
3200b415129529 CleatCleat
-
4000250000764 Hex. Button Head Screw M8 X 1.25 X 35Hex. Button Head Screw M8 X 1.25 X 35
-
4020504082900 WasherWasher
