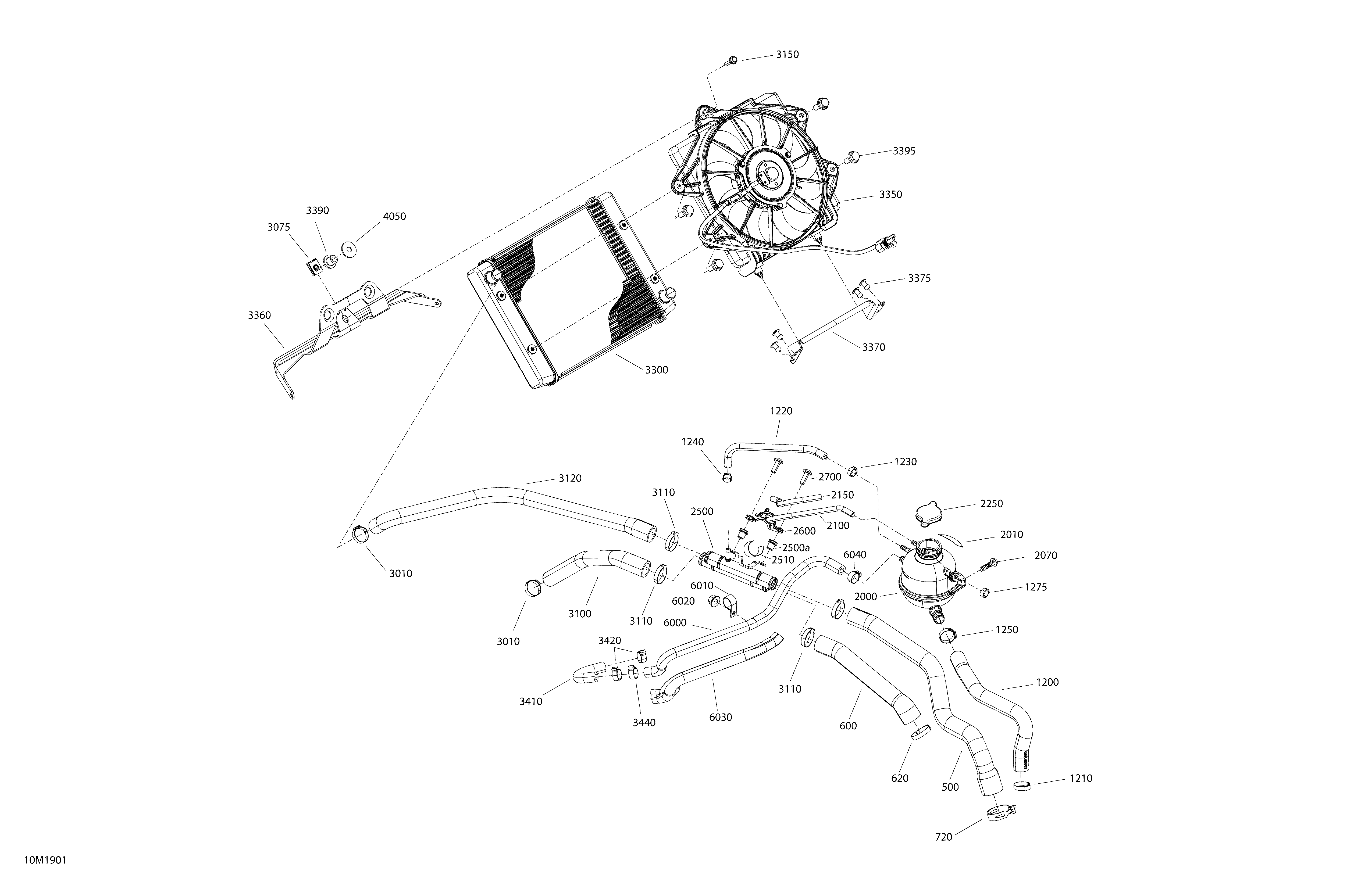

01- Cooling - 900 ACE Turbo - With Air Radiator Kit для BRP Ski-Doo 004 - GRAND TOURING 900 ACE Turbo - 2019
-
№АртикулНазвание
-
500509001080 Hose Radiator InHose Radiator In
-
600509001013 Engine Outlet HoseEngine Outlet Hose
-
620509000045 Oetiker Gear ClampOetiker Gear Clamp
-
720293650264 Norma Spring ClampNorma Spring Clamp
-
1200509001083 Hose Coolant TankHose Coolant Tank
-
1210293650099 Crimp ClampCrimp Clamp
-
1220509001035 HoseHose
-
1230293650046 Oetiker ClampOetiker Clamp
-
1240293650046 Oetiker ClampOetiker Clamp
-
1250509001041 Oetiker ClampOetiker Clamp
-
1275293650046 Oetiker ClampOetiker Clamp
-
2000509001034 Cooling TankCooling Tank
-
2010516005904 Warning DecalWarning Decal
-
2070241152060 Hex. Flanged Screw K50 X 20Hex. Flanged Screw K50 X 20
-
2100415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
2150504152900 Protector TubeProtector Tube
-
2250509000180 Pressure CapPressure Cap
-
2500509001030 Pipe Coolant. Includes 2500 to 2500aPipe Coolant. Includes 2500 to 2500a
-
2500a293450268 Insert M5 X 0.8Insert M5 X 0.8
-
2510512061214 ProtectorProtector
-
2600509001049 ClampClamp
-
2700250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
3010293650099 Crimp ClampCrimp Clamp
-
3075250100208 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
3100509001085 Hose Radiator InterieurHose Radiator Interieur
-
3110293650141 Oetiker Gear ClampOetiker Gear Clamp
-
3120509001084 Hose Radiator OutHose Radiator Out
-
3150207562544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
3300509001057 Radiator FrontRadiator Front
-
3350509001114 FanFan
-
3360509001023 Support Radiator CentralSupport Radiator Central
-
3370509001024 Support Radiator LowerSupport Radiator Lower
-
3375390909100 Avex RivetAvex Rivet
-
3390293900100 BushingBushing
-
3395207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
3410509001090 HoseHose
-
3420293650011 Oetiker ClampOetiker Clamp
-
3440293650011 Oetiker ClampOetiker Clamp
-
4050250200082 Flat WasherFlat Washer
-
6000509001092 HoseHose
-
6010512061265 ClampClamp
-
6020233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
6030219702535 Tube 25.4MMTube 25.4MM
-
6040293650011 Oetiker ClampOetiker Clamp
