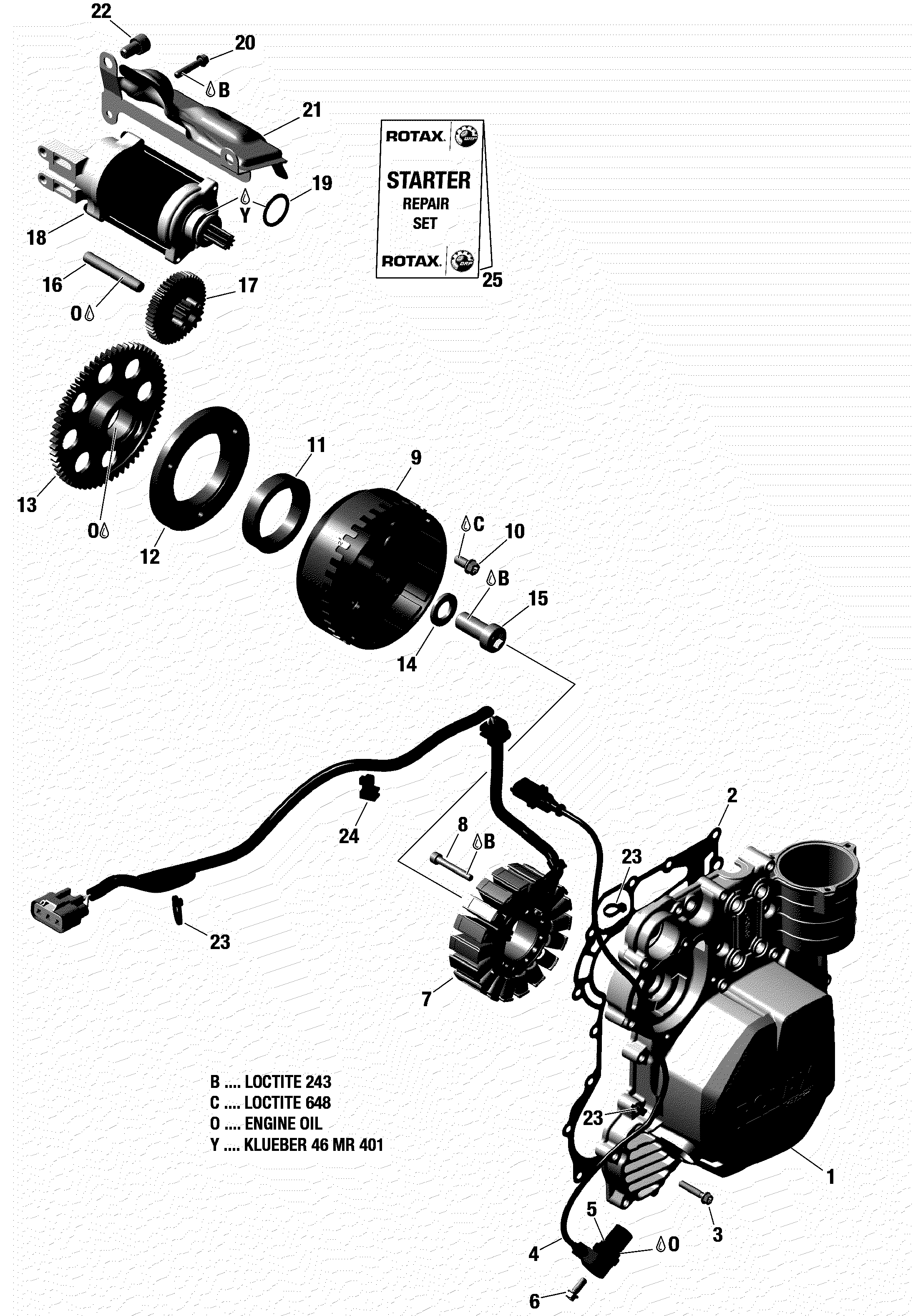

03- Magneto And Electric Starter 650W для BRP Ski-Doo 004 - GRAND TOURING 900 ACE Turbo - 2019
-
№АртикулНазвание
-
1420911055 Ignition CoverIgnition Cover
-
2420431640 GasketGasket
-
3420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
4>5420966570 Crankshaft Position Sensor Ass'yCrankshaft Position Sensor Ass'y
-
5420431580 O-RingO-Ring
-
6420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
7420685635 Stator Plate 650WStator Plate 650W
-
8420241956 Allen Screw M6 X 40Allen Screw M6 X 40
-
9420686192 Flywheel Ass'yFlywheel Ass'y
-
10420440854 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
11420659111 Sprag ClutchSprag Clutch
-
12420659263 Sparg Clutch HousingSparg Clutch Housing
-
13420434238 Free Wheel Gear, 64 TeethFree Wheel Gear, 64 Teeth
-
14420627270 ShimShim
-
15420241549 Socket Head Screw M16 X 35Socket Head Screw M16 X 35
-
16420229475 Needle PinNeedle Pin
-
17420634741 Double GearDouble Gear
-
18>19420892435 Electric Starter Ass'yElectric Starter Ass'y
-
19420250145 O-RingO-Ring
-
20420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
21420975136 Heat ShieldHeat Shield
-
22420841663 Allen Screw M10 X 16Allen Screw M10 X 16
-
23420866714 Tie RapTie Rap
-
24420881149 Starter Repair KitStarter Repair Kit
