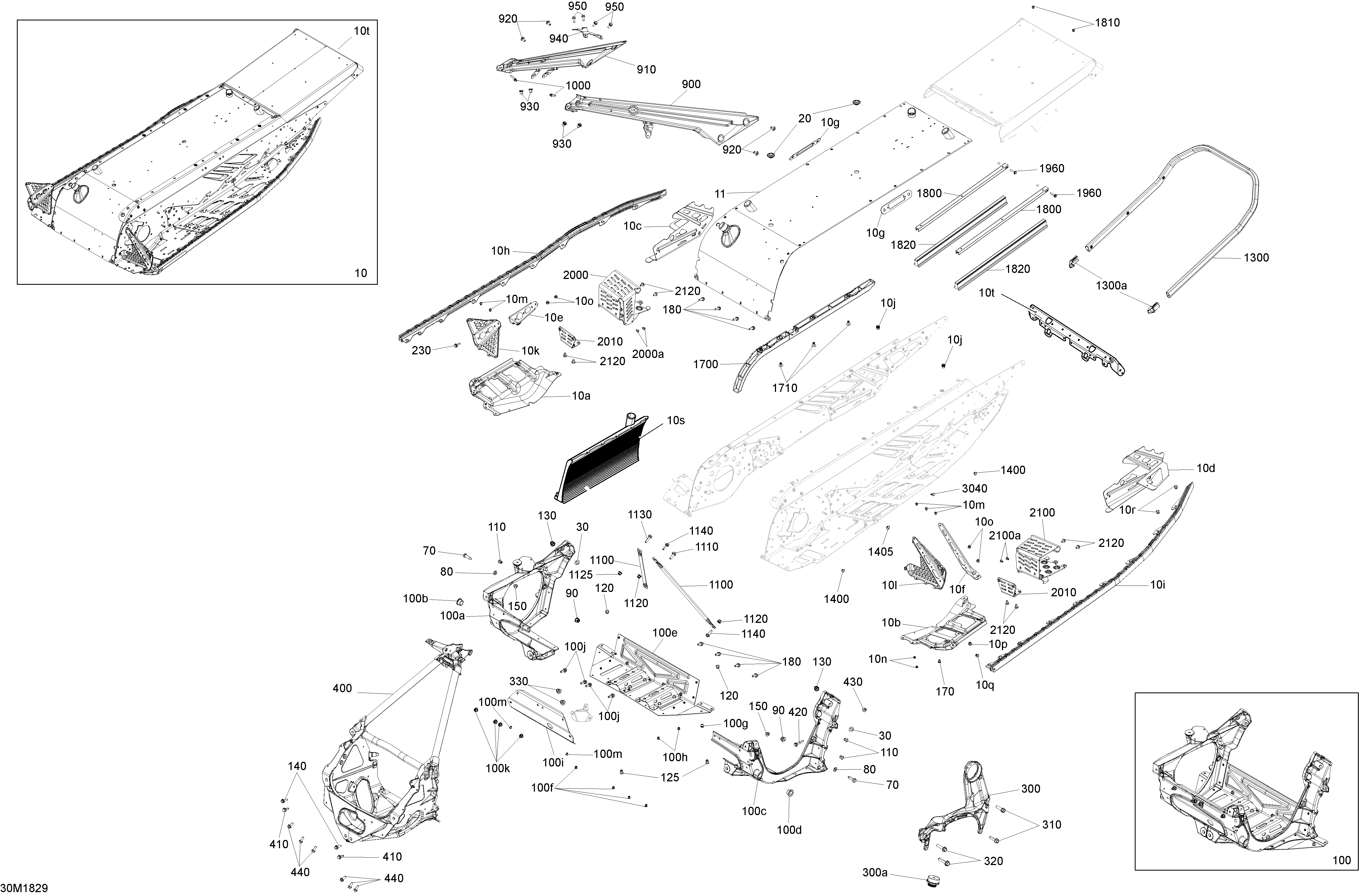

09- Frame MXZ - 600 RS для BRP Ski-Doo 1- MXZ 600RS - Racing - 2018

  • №
    Артикул
    Название
  • 10>10t
    415130210 T Module 129 Rs Gray. Includes 10 to 10t
    T Module 129 Rs Gray. Includes 10 to 10t
  • 10a
    518328456 LH Footrest Reinforcement
    LH Footrest Reinforcement
  • 10b
    518328455 RH Footrest Reinforcement
    RH Footrest Reinforcement
  • 10c
    518329021 RH Suspension Bracket
    RH Suspension Bracket
  • 10d
    518329022 LH Suspension Bracket
    LH Suspension Bracket
  • 10e
    518329048 RH Reinforcement Footrest
    RH Reinforcement Footrest
  • 10f
    518329049 LH Reinforcement Footrest
    LH Reinforcement Footrest
  • 10g
    518329480 Member Fixation Plate
    Member Fixation Plate
  • 10h
    518329023 Roller RH
    Roller RH
  • 10i
    518329024 Roller LH
    Roller LH
  • 10j
    293450232 Insert
    Insert
  • 10k
    518328460 RH Footrest
    RH Footrest
  • 10l
    518329645 LH Footrest
    LH Footrest
  • 10m
    293150203 Rivet AVIBULB 3/16
    Rivet AVIBULB 3/16
  • 10n
    293150144 Stavex Rivet
    Stavex Rivet
  • 10o
    293150096 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 10p
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 10q
    293150174 Hemlock Rivet, 6.4 mm
    Hemlock Rivet, 6.4 mm
  • 10r
    293150147 Hemlock Rivet
    Hemlock Rivet
  • 10s
    518330337 Radiator Ass'y
    Radiator Ass'y
  • 10t
    518330165 Rear Cap
    Rear Cap
  • 20
    293730052 Black Plug
    Black Plug
  • 30
    506151252 Washer
    Washer
  • 70
    250000942 Hex Screw M8 X 30
    Hex Screw M8 X 30
  • 80
    234081410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 90
    233281414 Hex. Flanged Elastic Nut M8 X 1.25
    Hex. Flanged Elastic Nut M8 X 1.25
  • 100
    518329993 Module E. Includes 100 to 100m
    Module E. Includes 100 to 100m
  • 100a
    518329999 RH Member Ass'y. Includes 100a a 100b
    RH Member Ass'y. Includes 100a a 100b
  • 100b
    505073317 Leg Cushion
    Leg Cushion
  • 100c
    518329960 LH Member Ass'y. Includes 100c to 100d
    LH Member Ass'y. Includes 100c to 100d
  • 100d
    505073317 Leg Cushion
    Leg Cushion
  • 100e
    518329844 Bottom Plate
    Bottom Plate
  • 100f
    293150203 Rivet AVIBULB 3/16
    Rivet AVIBULB 3/16
  • 100g
    293450268 Insert
    Insert
  • 100h
    293150203 Rivet AVIBULB 3/16
    Rivet AVIBULB 3/16
  • 100i
    518330100 Front Member
    Front Member
  • 100j
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 100k
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 100m
    293150203 Rivet AVIBULB 3/16
    Rivet AVIBULB 3/16
  • 110
    293150147 Hemlock Rivet
    Hemlock Rivet
  • 120
    293150174 Hemlock Rivet, 6.4 mm
    Hemlock Rivet, 6.4 mm
  • 125
    293150120 Hemlock Rivet 6.5 mm
    Hemlock Rivet 6.5 mm
  • 130
    233281414 Hex. Flanged Elastic Nut M8 X 1.25
    Hex. Flanged Elastic Nut M8 X 1.25
  • 140
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 150
    233261416 Elastic Flanged Nut M6 X 1.0
    Elastic Flanged Nut M6 X 1.0
  • 170
    293450268 Insert
    Insert
  • 180
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 230
    207562034 Hex. Flanged Screw M6 X 20, Scotch Grip
    Hex. Flanged Screw M6 X 20, Scotch Grip
  • 300
    518330166 Brace Ass'y. Includes 300 to 300a
    Brace Ass'y. Includes 300 to 300a
  • 300a
    512061284 Rubber Mount
    Rubber Mount
  • 310
    250001048 Hex. Flanged Screw M8 X 30
    Hex. Flanged Screw M8 X 30
  • 320
    207683544 Hex. Flanged Screw M8 X 35
    Hex. Flanged Screw M8 X 35
  • 330
    233281414 Hex. Flanged Elastic Nut M8 X 1.25
    Hex. Flanged Elastic Nut M8 X 1.25
  • 400
    518330332 S Module
    S Module
  • 410
    250000822 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 420
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 430
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 440
    207661646 Hex. Flange Screw M6 X 16
    Hex. Flange Screw M6 X 16
  • 900
    518330140 Black, LH Member
    Black, LH Member
  • 910
    518330141 Black, RH Member
    Black, RH Member
  • 920
    250000887 Pan Head Torx Screw M8 X 12
    Pan Head Torx Screw M8 X 12
  • 930
    293450275 Insert
    Insert
  • 940
    518329499 Brace Rear Member
    Brace Rear Member
  • 950
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 1000
    250300629 Stud M5 X 20
    Stud M5 X 20
  • 1100
    518329974 Upper Column Supprt
    Upper Column Supprt
  • 1110
    207562034 Hex. Flanged Screw M6 X 20, Scotch Grip
    Hex. Flanged Screw M6 X 20, Scotch Grip
  • 1120
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 1125
    233261416 Elastic Flanged Nut M6 X 1.0
    Elastic Flanged Nut M6 X 1.0
  • 1130
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 1140
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 1300
    518328745 Rear Bumper. Includes 1300 to 1300,001
    Rear Bumper. Includes 1300 to 1300,001
  • 1300a
    520001612 Cap
    Cap
  • 1400
    293730047 Black Dart 8 mm
    Black Dart 8 mm
  • 1405
    293730060 Black Dart 10 mm
    Black Dart 10 mm
  • 1700
    518329982 Front Protector
    Front Protector
  • 1710
    293150108 Pop Rivet 3/16”
    Pop Rivet 3/16”
  • 1800
    518330225 Support
    Support
  • 1810
    293150203 Rivet AVIBULB 3/16
    Rivet AVIBULB 3/16
  • 1820
    518330227 Rear Protector
    Rear Protector
  • 1960
    207652544 Hex. Flanged Screw M5 X 0.8 X 25
    Hex. Flanged Screw M5 X 0.8 X 25
  • 2000
    518329679 Black, RH Footrest. Includes 2000 to 2000,001
    Black, RH Footrest. Includes 2000 to 2000,001
  • 2000a
    390909100 Avex Rivet
    Avex Rivet
  • 2010
    518329838 Support
    Support
  • 2100
    518329680 Black, LH Footrest. Includes 2100 to 2100,001
    Black, LH Footrest. Includes 2100 to 2100,001
  • 2100a
    390909100 Avex Rivet
    Avex Rivet
  • 2120
    250000767 Torx Truss Screw M6 X 12
    Torx Truss Screw M6 X 12
  • 3040
    293730079 Dart
    Dart
