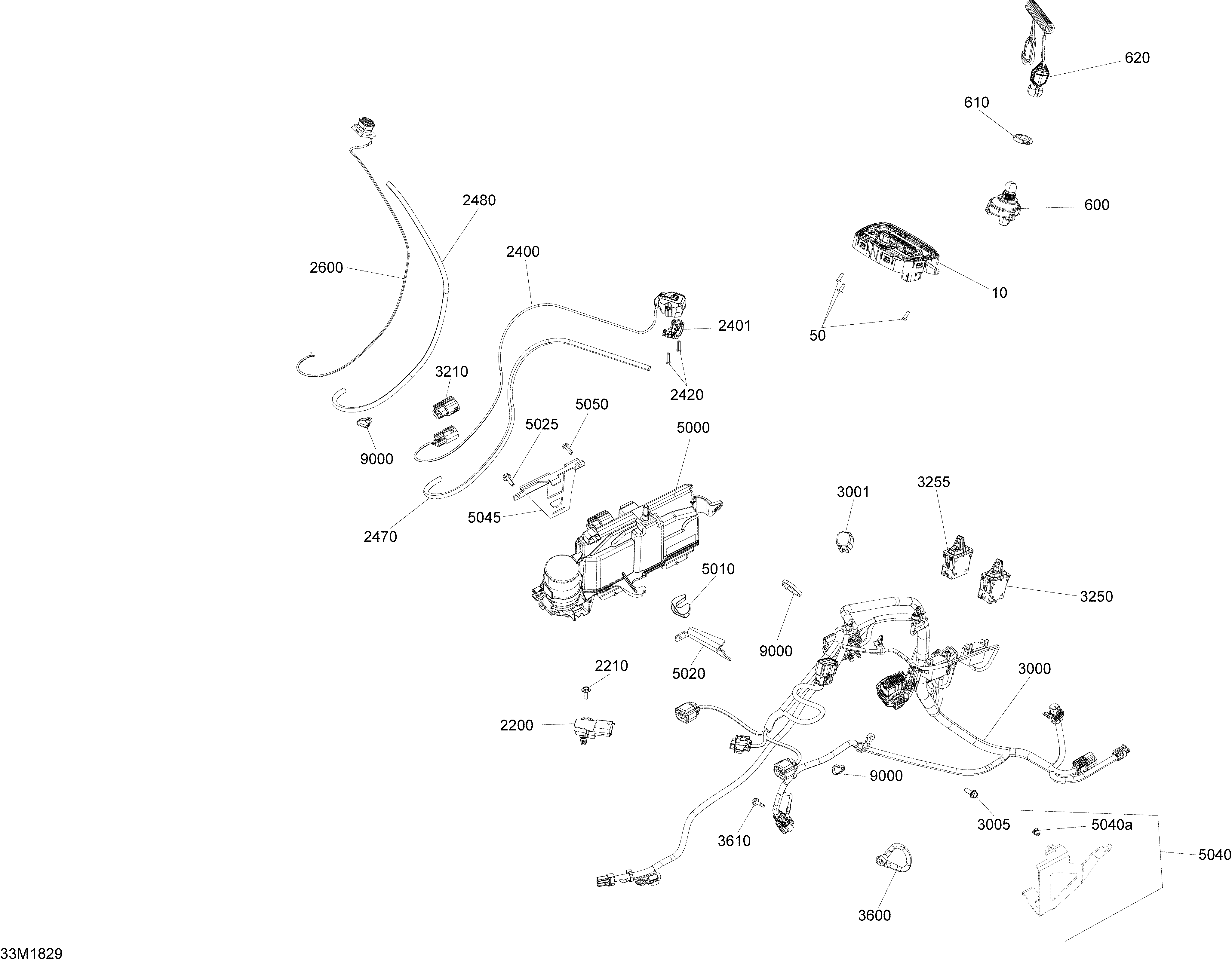

10- Electrical System MXZ 600 RS для BRP Ski-Doo 1- MXZ 600RS - Racing - 2018
-
№АртикулНазвание
-
10515178350 IndicatorIndicator
-
50250000577 Torx Truss K40 X 12Torx Truss K40 X 12
-
600515178225 DESS SwitchDESS Switch
-
610278002963 Safety NutSafety Nut
-
620515178286 Grey - RF Key Ass'yGrey - RF Key Ass'y
-
2200707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
2210250000725 Screw M4 X 16Screw M4 X 16
-
2400515178381 Start ButtonStart Button
-
2401515177952 ClampClamp
-
2420250000671 Torx ScrewTorx Screw
-
2470415130141 SleeveSleeve
-
2480415130141 SleeveSleeve
-
2600515178300 Kill SwitchKill Switch
-
3000515178366 Main HarnessMain Harness
-
3001515178435 Diagnostic CapDiagnostic Cap
-
3005250000936 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3210515178177 4 Circuits Female Housing4 Circuits Female Housing
-
3250515177917 Rocker SwitchRocker Switch
-
3255515177932 Rocker SwitchRocker Switch
-
3600515178248 Ground WireGround Wire
-
3610250000911 Hex. Flanged Screw M5 X 16Hex. Flanged Screw M5 X 16
-
5000512061093 Igniton ModuleIgniton Module
-
5010515178430 Rubber StopperRubber Stopper
-
5020515178491 Support ModuleSupport Module
-
5025207651646 Hex. Flanged Screw M5 X 16Hex. Flanged Screw M5 X 16
-
5040515178488 Support ModuleSupport Module
-
5045515178489 Support ModuleSupport Module
-
5050207551644 Hex. Flanged Screw M5 x 16, Scotch GripHex. Flanged Screw M5 x 16, Scotch Grip
-
9000293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9000414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9000293750008 Tie-Rap 350 mmTie-Rap 350 mm
