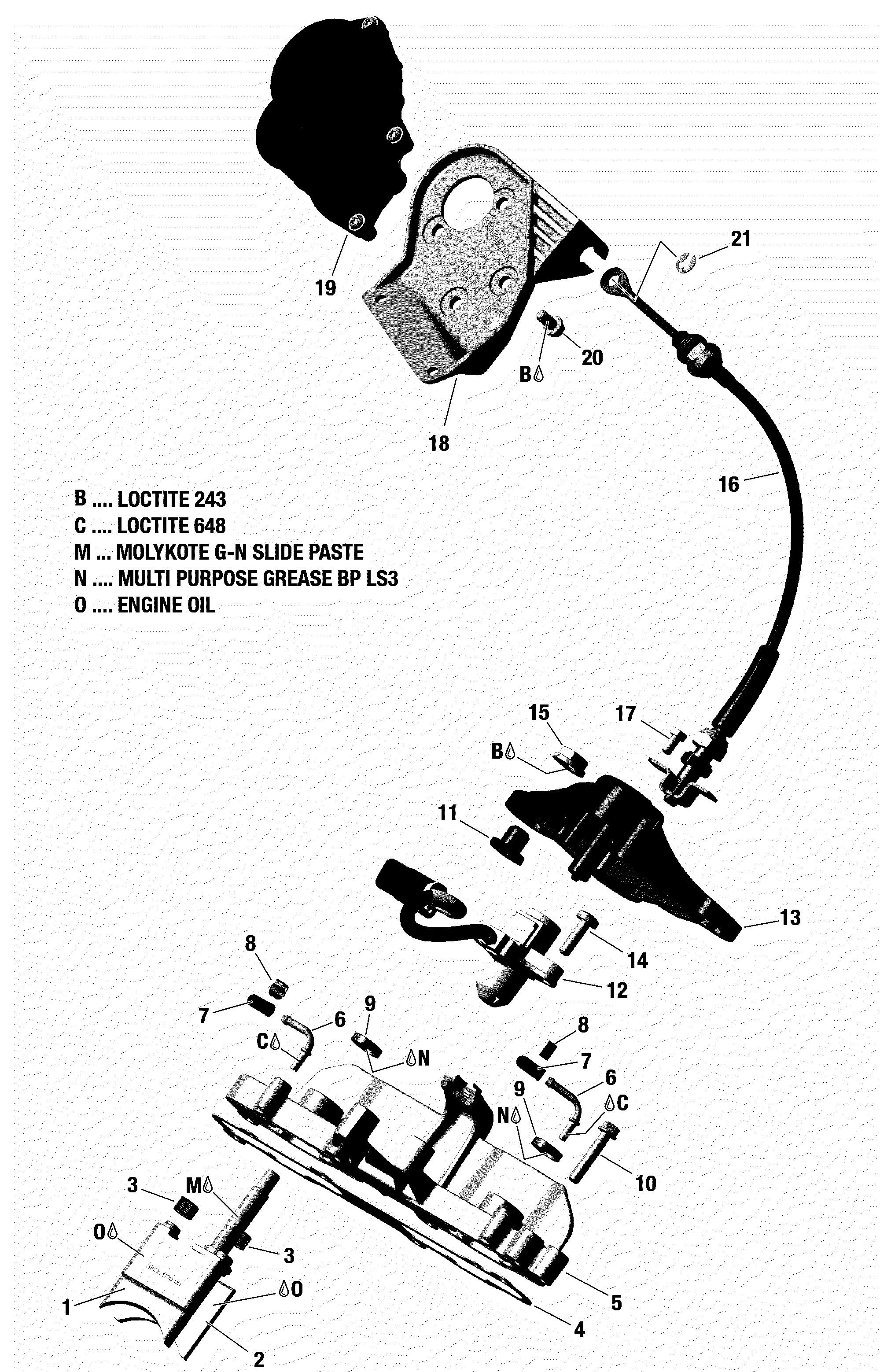

01- Rave Valve для BRP Ski-Doo 1- MXZ 600RS - Racing - 2018
-
№АртикулНазвание
-
1420954100 Exhaust Valve UpperExhaust Valve Upper
-
2420954095 Exhaust Valve LowerExhaust Valve Lower
-
3420238558 SpringSpring
-
4420631000 GasketGasket
-
5>6420954065 Valve Rod Housing Ass'yValve Rod Housing Ass'y
-
6420924051 Fitting 90DFitting 90D
-
7420960771 Closure CapClosure Cap
-
8420853138 Clamp 5.8-7.0MMClamp 5.8-7.0MM
-
9420950730 Oil SealOil Seal
-
10420440647 Flanged Torx Screw M6 X 30Flanged Torx Screw M6 X 30
-
11420942330 Collar Nut M8Collar Nut M8
-
12>13420855295 Valve Bar With Position SensorValve Bar With Position Sensor
-
14420441386 Flanged Torx Screw M6 X 20Flanged Torx Screw M6 X 20
-
15420942190 Nut M12 X 1.5Nut M12 X 1.5
-
16420997033 Bowden Cable Ass'yBowden Cable Ass'y
-
18420912008 Mounting BracketMounting Bracket
-
19420889431 ServomotorServomotor
-
20420440149 Flanged Hex. Screw M6 X 12Flanged Hex. Screw M6 X 12
-
21420945710 Anneau De RetenueAnneau De Retenue
