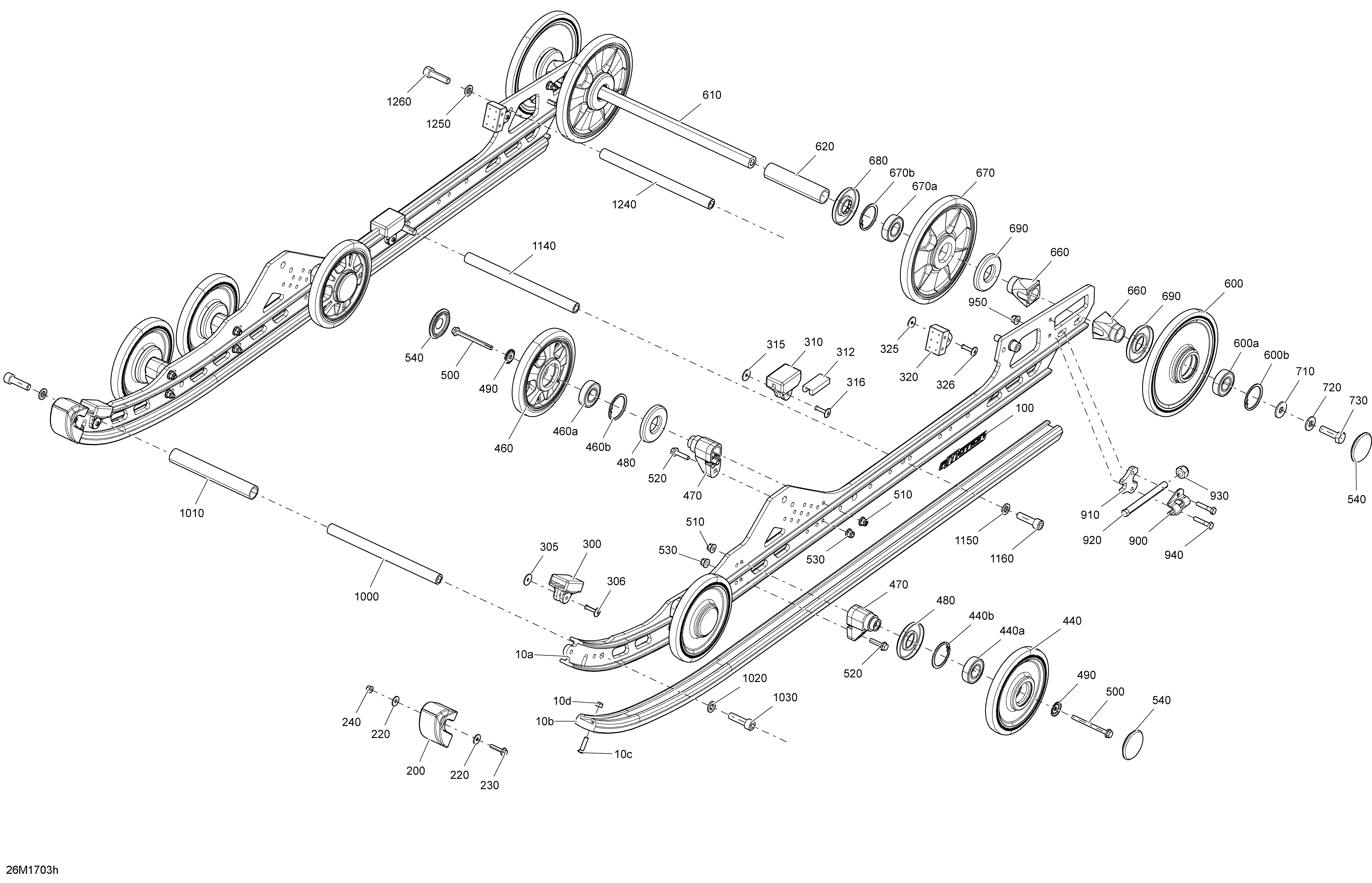

08- Rear Suspension - rMotion - Package X - Inferior для BRP Ski-Doo RENEGADE - 2-STROKE - 850 E-TEC - 2017

  • №
    Артикул
    Название
  • 10a
    503193730 Bare- Runner 137''
    Bare- Runner 137''
  • 10a
    503194533 White - Runner 137''
    White - Runner 137''
  • 10a
    503193552 Black Runner 137''
    Black Runner 137''
  • 10b
    503191306 Black - Slider Shoe 137''
    Black - Slider Shoe 137''
  • 10c
    208562531 Phillips Screw M6 X 25
    Phillips Screw M6 X 25
  • 10d
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 100
    516004755 Runner Decal
    Runner Decal
  • 200
    503192530 Slide Protector
    Slide Protector
  • 220
    250200140 Washer
    Washer
  • 230
    207652544 Hex. Flanged Screw M5 X 25
    Hex. Flanged Screw M5 X 25
  • 240
    233251434 Flanged Elastic Nut M5
    Flanged Elastic Nut M5
  • 300
    503190576 Rubber Stopper
    Rubber Stopper
  • 305
    503191273 Washer
    Washer
  • 306
    293150224 Rivet Pop 3/16
    Rivet Pop 3/16
  • 310
    503193101 Rubber Stopper
    Rubber Stopper
  • 312
    572084800 Reinforcement Stopper
    Reinforcement Stopper
  • 315
    503191273 Washer
    Washer
  • 316
    293150224 Rivet Pop 3/16
    Rivet Pop 3/16
  • 320
    503192750 Rubber Stopper
    Rubber Stopper
  • 325
    503191273 Washer
    Washer
  • 326
    293150224 Rivet Pop 3/16
    Rivet Pop 3/16
  • 440>440a
    503193376 Black - Wheel Ass'y 147 mm. Includes 440 to 440a
    Black - Wheel Ass'y 147 mm. Includes 440 to 440a
  • 440a
    503190396 Ball Bearing
    Ball Bearing
  • 460>460b
    503191152 Black - Wheel Ass'y 147 mm. Includes 460 to 460b
    Black - Wheel Ass'y 147 mm. Includes 460 to 460b
  • 460a
    503190396 Ball Bearing
    Ball Bearing
  • 460b
    415129371 Retaining Ring
    Retaining Ring
  • 470
    503193894 Casted Support
    Casted Support
  • 480
    503190434 Labyrinth Seal
    Labyrinth Seal
  • 490
    503191820 Wheel Cup M6
    Wheel Cup M6
  • 500
    207667056 Hex. Flange Screw M6 X 70
    Hex. Flange Screw M6 X 70
  • 510
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 520
    207662556 Hex. Flange Screw M6 X 25
    Hex. Flange Screw M6 X 25
  • 530
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 540
    503192771 Black - Wheel Cap
    Black - Wheel Cap
  • 600>600b
    503192766 Black - Wheel Ass'y 180 mm. Includes 600 to 600b
    Black - Wheel Ass'y 180 mm. Includes 600 to 600b
  • 600a
    503190396 Ball Bearing
    Ball Bearing
  • 600b
    415129371 Retaining Ring
    Retaining Ring
  • 610
    503190429 Rear Axle
    Rear Axle
  • 620
    503190430 Spacer
    Spacer
  • 650
    503190432 Washer
    Washer
  • 660
    503190428 Rear Wheel Spacer
    Rear Wheel Spacer
  • 670>670b
    503194050 Black - Wheel Ass'y 180 mm. Includes 670 to 670b
    Black - Wheel Ass'y 180 mm. Includes 670 to 670b
  • 670a
    503190396 Ball Bearing
    Ball Bearing
  • 670b
    415129371 Retaining Ring
    Retaining Ring
  • 680
    503190682 Labyrinth Seal
    Labyrinth Seal
  • 690
    503190434 Labyrinth Seal
    Labyrinth Seal
  • 710
    503191910 Washer
    Washer
  • 720
    234201474 Conical Spring Washer 10 mm
    Conical Spring Washer 10 mm
  • 730
    250000817 Hex Screw With Nilon Patch, M10 X 35
    Hex Screw With Nilon Patch, M10 X 35
  • 900
    503192583 Tensioner
    Tensioner
  • 910
    503193250 Spacer
    Spacer
  • 920
    230100054 Hex Screw M10 x 100
    Hex Screw M10 x 100
  • 930
    233601466 Elastic Locking Nut M10
    Elastic Locking Nut M10
  • 940
    207063054 Hex. Cap Screw M6 X 30
    Hex. Cap Screw M6 X 30
  • 950
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 1000
    503191260 Axle Strap
    Axle Strap
  • 1010
    503192678 Spacer
    Spacer
  • 1020
    503192496 Washer
    Washer
  • 1030
    205503554 Socket Head Screw M10 X 35
    Socket Head Screw M10 X 35
  • 1140
    503191260 Axle Strap
    Axle Strap
  • 1150
    503192496 Washer
    Washer
  • 1160
    205503554 Socket Head Screw M10 X 35
    Socket Head Screw M10 X 35
  • 1240
    503191260 Axle Strap
    Axle Strap
  • 1250
    503192496 Washer
    Washer
  • 1260
    205503554 Socket Head Screw M10 X 35
    Socket Head Screw M10 X 35
