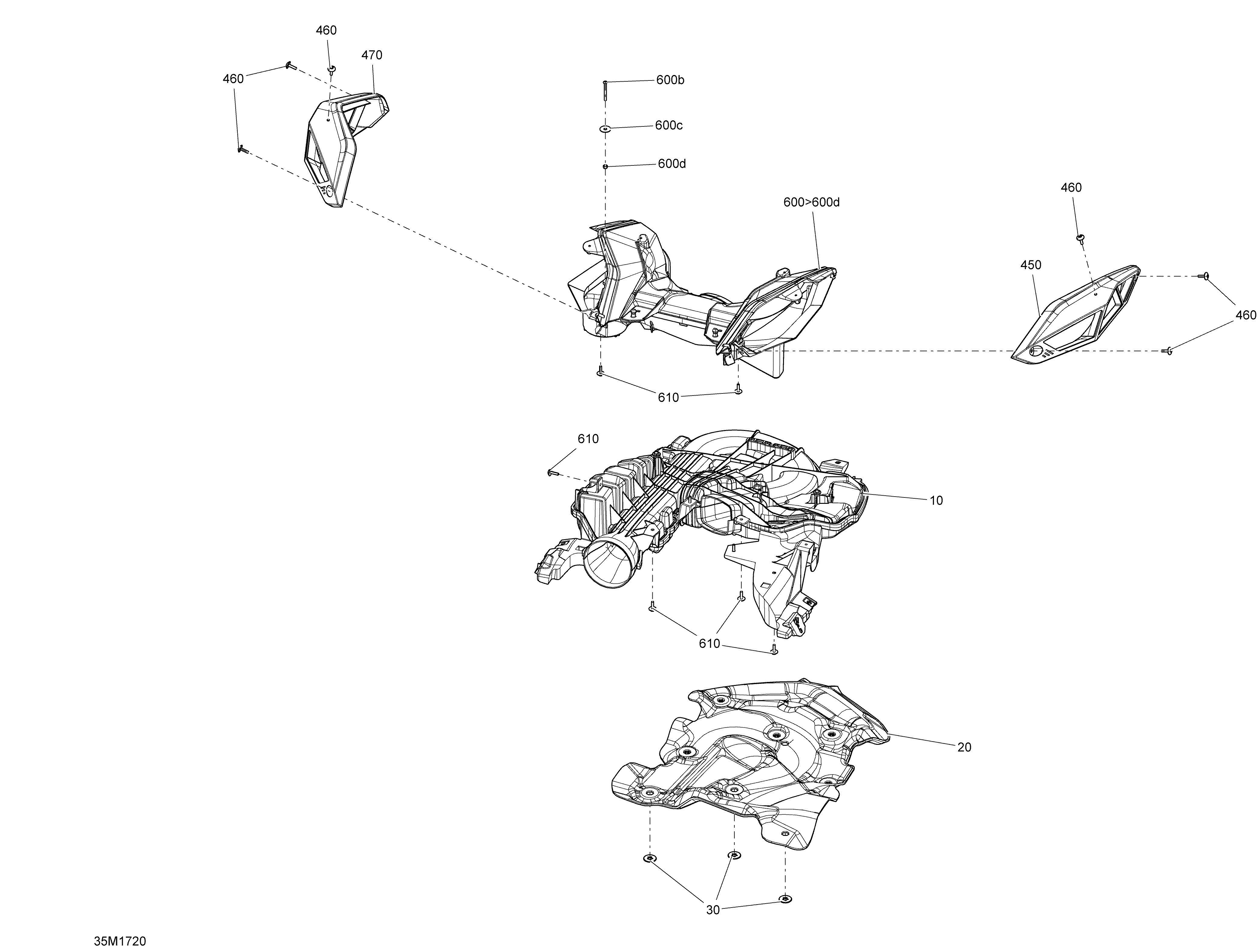

02- Air Intake System - All Models для BRP Ski-Doo RENEGADE - 2-STROKE - 850 E-TEC - 2017

  • №
    Артикул
    Название
  • 10
    508000794 Secondary Chamber
    Secondary Chamber
  • 20
    508000823 Acoustik Panel
    Acoustik Panel
  • 30
    508000853 Push Nut
    Push Nut
  • 450
    508000806 RH Air Filter
    RH Air Filter
  • 460
    250000889 Screw M4 X 16
    Screw M4 X 16
  • 470
    508000807 LH Air Filter
    LH Air Filter
  • 600>600d
    508000846 Black - Air Duct Ass'y. Includes 600 to 600d
    Black - Air Duct Ass'y. Includes 600 to 600d
  • 600>600d
    508000850 Orange - Air Duct Ass'y. Includes 600 to 600d
    Orange - Air Duct Ass'y. Includes 600 to 600d
  • 600b
    205444056 Socket Head Screw M4 X 40
    Socket Head Screw M4 X 40
  • 600c
    224060201 Flat Washer
    Flat Washer
  • 600d
    232541414 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 610
    250000725 Screw M4 X 16
    Screw M4 X 16
