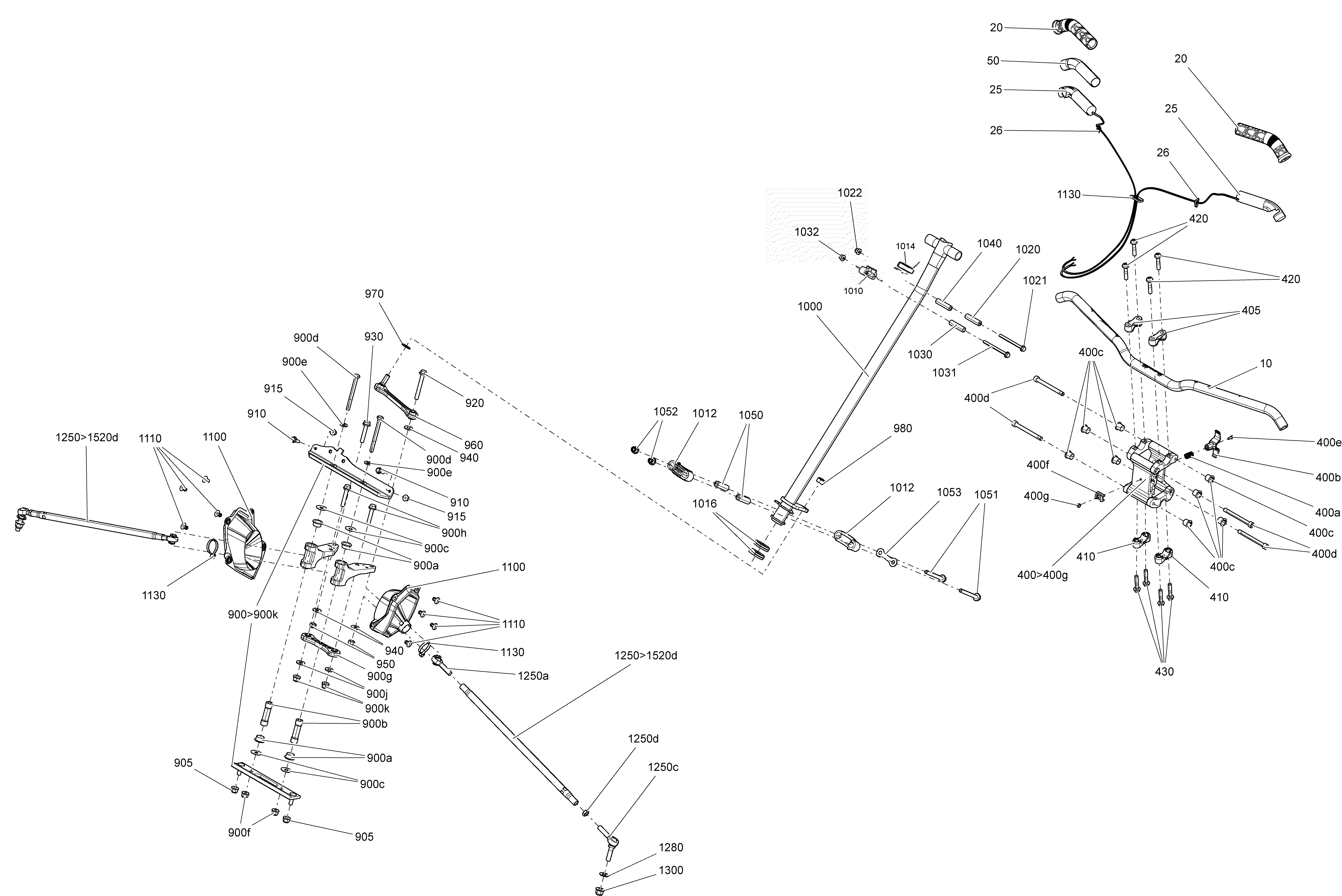

07- Steering - Package X для BRP Ski-Doo RENEGADE - 2-STROKE - 850 E-TEC - 2017

  • №
    Артикул
    Название
  • 10
    506152825 Handle Bar
    Handle Bar
  • 20
    506152560 Grip 148mm
    Grip 148mm
  • 25
    506152856 Heated Film
    Heated Film
  • 26
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 50
    506152548 Insulant
    Insulant
  • 400>400g
    506152775 Extension. Includes 400 to 400g
    Extension. Includes 400 to 400g
  • 400a
    506152820 Spring
    Spring
  • 400b
    506152821 Handle
    Handle
  • 400c
    506152520 Cushion
    Cushion
  • 400d
    205588554 Socket Head Screw M8 X 85
    Socket Head Screw M8 X 85
  • 400e
    205041060 Socket Head Screw M4X 10
    Socket Head Screw M4X 10
  • 400f
    515176795 Clip
    Clip
  • 400g
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 405
    506152894 Support
    Support
  • 410
    506152894 Support
    Support
  • 420
    250000904 Button Head Torx Screw M8 X 38
    Button Head Torx Screw M8 X 38
  • 430
    250000852 Hexagonal Flange Screw M8 X 60
    Hexagonal Flange Screw M8 X 60
  • 900>900k
    506152917 Steering Linkage Ass'y. Includes 900 to 900k
    Steering Linkage Ass'y. Includes 900 to 900k
  • 900a
    503194671 Bushing
    Bushing
  • 900b
    506152792 Swivel Pivot
    Swivel Pivot
  • 900c
    503191800 Washer
    Washer
  • 900d
    207088544 Hex. Screw M8 X 85
    Hex. Screw M8 X 85
  • 900e
    503192494 Washer
    Washer
  • 900f
    233281466 Elastic Flang Nut M8
    Elastic Flang Nut M8
  • 900g
    506152755 Ball Joint
    Ball Joint
  • 900h
    207684586 Hex. Flanged Screw M8 X 45
    Hex. Flanged Screw M8 X 45
  • 900j
    506151245 Washer
    Washer
  • 900k
    233281466 Elastic Flang Nut M8
    Elastic Flang Nut M8
  • 903
    506153008 Steering Stopper
    Steering Stopper
  • 905
    233281416 Hex. Elastic Flanged Nut M8
    Hex. Elastic Flanged Nut M8
  • 910
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 915
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 920
    207686544 Hex. Flanged Screw, M8 X 65
    Hex. Flanged Screw, M8 X 65
  • 930
    207684544 Hex. Flanged Screw M8 X 45
    Hex. Flanged Screw M8 X 45
  • 940
    506151245 Washer
    Washer
  • 950
    232581414 Hex. Elastic Stop Nut M8
    Hex. Elastic Stop Nut M8
  • 960
    506152753 Ball Joint
    Ball Joint
  • 970
    506152582 Washer
    Washer
  • 980
    232500416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 1000
    506152777 Main Tube
    Main Tube
  • 1010
    506152219 Upper Half-Housing
    Upper Half-Housing
  • 1012
    506152936 Half Housing
    Half Housing
  • 1014
    506152292 Upper Anti-Vibration Gasket
    Upper Anti-Vibration Gasket
  • 1016
    506152518 Lower Vibration Ring
    Lower Vibration Ring
  • 1020
    506152297 Housing Bushing
    Housing Bushing
  • 1021
    207667554 Screw Hex Flange M6 X 75
    Screw Hex Flange M6 X 75
  • 1022
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 1030
    506152297 Housing Bushing
    Housing Bushing
  • 1031
    207667554 Screw Hex Flange M6 X 75
    Screw Hex Flange M6 X 75
  • 1032
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 1040
    506152297 Housing Bushing
    Housing Bushing
  • 1050
    506152937 Housing Bushing
    Housing Bushing
  • 1051
    207687044 Hex. Flanged Screw M8 X 70
    Hex. Flanged Screw M8 X 70
  • 1052
    233281416 Hex. Elastic Flanged Nut M8
    Hex. Elastic Flanged Nut M8
  • 1053
    506152938 Stopper Plate
    Stopper Plate
  • 1100
    506152785 Boot
    Boot
  • 1110
    293150008 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 1130
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 1250>1250d
    506152815 Rod Ass'y. Includes 1250 to 1250d
    Rod Ass'y. Includes 1250 to 1250d
  • 1250a
    506152344 LH Ball Joint
    LH Ball Joint
  • 1250b
    250100016 LH Hex. Jam Nut M10
    LH Hex. Jam Nut M10
  • 1250c
    506152684 RH Thread Ball Joint
    RH Thread Ball Joint
  • 1250d
    732610010 RH Hex. Jam Nut M10
    RH Hex. Jam Nut M10
  • 1280
    506152582 Washer
    Washer
  • 1300
    233201464 Hex. Elast. Flanged Nut M10
    Hex. Elast. Flanged Nut M10
