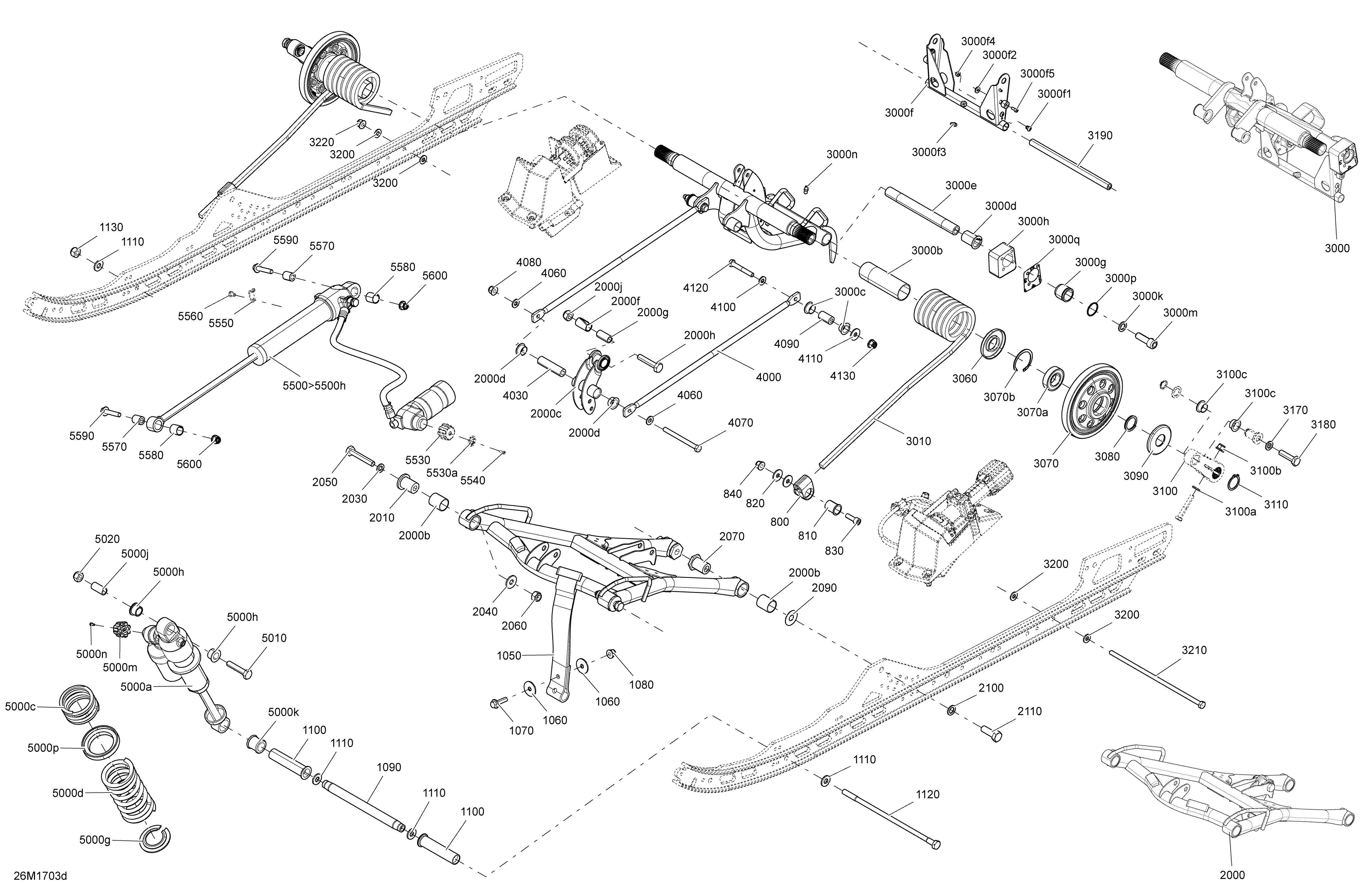

08- Rear Suspension - rMotion with QAS - Package XRS - Superior для BRP Ski-Doo RENEGADE - 2-STROKE - 800R E-TEC - 2017

№

Артикул

Название
800

503191183 Spring Support

Spring Support
810

503190754 Retainer Cushion

Retainer Cushion
820

234082410 Flat Washer 8 mm

Flat Washer 8 mm
830

205082554 Socket Screw M8 X 25

Socket Screw M8 X 25
840

233281466 Elastic Flang Nut M8

Elastic Flang Nut M8
1050

503192759 Stopper Strap

Stopper Strap
1060

250200128 Flat Washer 8 mm

Flat Washer 8 mm
1070

207683044 Hex. Flanged Screw M8 X 1.25 X 30

Hex. Flanged Screw M8 X 1.25 X 30
1080

233281466 Elastic Flang Nut M8

Elastic Flang Nut M8
1090

503193435 Pivot Axle

Pivot Axle
1100

503191259 Center Bushing

Center Bushing
1110

250200143 Flat Washer

Flat Washer
1120

503193227 Bolt M10 X 251MM

Bolt M10 X 251MM
1130

233201466 Flanged Elastic Nut M10 X 1.5

Flanged Elastic Nut M10 X 1.5
2000>2000j

503194529 Front Arm Ass'y. Includes 2000 to 2000j

Front Arm Ass'y. Includes 2000 to 2000j
2000b

503191554 Bushing

Bushing
2000c

503192531 Rocker

Rocker
2000d

503191555 Swivel Bushing

Swivel Bushing
2000f

503193037 Bushing

Bushing
2000g

503189282 Bushing

Bushing
2000h

207005044 Hex. Screw M10 X 1.5 X 50

Hex. Screw M10 X 1.5 X 50
2000j

233601416 Elastic Locking Nut M10 X 1.5

Elastic Locking Nut M10 X 1.5
2010

503190698 Axle

Axle
2030

503192496 Washer

Washer
2040

503191926 Washer

Washer
2050

207006056 Hex. Cap Screw M10 X 60

Hex. Cap Screw M10 X 60
2060

233601466 Elastic Locking Nut M10

Elastic Locking Nut M10
2070

503191966 Lower Axle

Lower Axle
2090

503190656 Washer

Washer
2100

503192491 Washer

Washer
2110

250000537 Hex. Cap Screw M12 X 35

Hex. Cap Screw M12 X 35
3000>3000u

503193618 Rear Arm Ass'y. Includes 3000 to 3000u

Rear Arm Ass'y. Includes 3000 to 3000u
3000b

503192767 Bushing

Bushing
3000c

503191555 Swivel Bushing

Swivel Bushing
3000d

503191640 Cushion

Cushion
3000e

503192981 Lower Shaft

Lower Shaft
3000f>3000f5

503192823 Pivot Arm Ass'y. Includes 3000f to 3000f5

Pivot Arm Ass'y. Includes 3000f to 3000f5
3000f1

390402200 Pop Rivet 3/16''

Pop Rivet 3/16''
3000f2

517225900 Flat Washer

Flat Washer
3000f3

408200700 Grease Fitting

Grease Fitting
3000f4

232551414 Elastic Stop Nut M5

Elastic Stop Nut M5
3000f5

205041060 Socket Head Screw M4X 10

Socket Head Screw M4X 10
3000g

503192749 Guide Block

Guide Block
3000h

503192918 LH Cam Block

LH Cam Block
3000h

503192919 RH Cam Block

RH Cam Block
3000k

503189276 Washer

Washer
3000m

205523554 Socket Head Screw M12 X 35

Socket Head Screw M12 X 35
3000n

408200700 Grease Fitting

Grease Fitting
3000p

503192921 O-Ring

O-Ring
3000q

516004900 LH Block Sticker Decal

LH Block Sticker Decal
3000q

516004901 RH Block Sticker Decal

RH Block Sticker Decal
3010

503192105 Black Spring LH, Square

Black Spring LH, Square
3010

503192104 Black Spring RH, Square

Black Spring RH, Square
3060

503190434 Labyrinth Seal

Labyrinth Seal
3070>3000b

503192808 Black Wheel Ass'y 155 mm. Includes 3070 to 3070b

Black Wheel Ass'y 155 mm. Includes 3070 to 3070b
3070a

503193548 Ball Bearing

Ball Bearing
3070b

415129780 Retaining Ring

Retaining Ring
3080

503189146 Axle Spring

Axle Spring
3090

503192592 Labyrinth Ring

Labyrinth Ring
3100>3100c

503193069 Link Ass'y. Includes 3100 to 3100c

Link Ass'y. Includes 3100 to 3100c
3100a

503192494 Washer

Washer
3100b

233281466 Elastic Flang Nut M8

Elastic Flang Nut M8
3100c

503191555 Swivel Bushing

Swivel Bushing
3110

293370080 Retaining Ring

Retaining Ring
3170

503192496 Washer

Washer
3180

207204056 Cap Screw Hex. M10 X 40

Cap Screw Hex. M10 X 40
3190

503189156 Pivot Arm Axle

Pivot Arm Axle
3200

503192494 Washer

Washer
3210

503192440 Bolt M8 X 248mm

Bolt M8 X 248mm
3220

233281466 Elastic Flang Nut M8

Elastic Flang Nut M8
4000

503193005 Link Rod

Link Rod
4030

503190643 Axle Bar (Long)

Axle Bar (Long)
4060

503192494 Washer

Washer
4070

503193372 Screw M8 X 90

Screw M8 X 90
4080

233281466 Elastic Flang Nut M8

Elastic Flang Nut M8
4090

503192555 Axle Bar

Axle Bar
4100

503192494 Washer

Washer
4110

234082410 Flat Washer 8 mm

Flat Washer 8 mm
4120

207085586 Hex. Screw M8 X 55

Hex. Screw M8 X 55
4130

233281466 Elastic Flang Nut M8

Elastic Flang Nut M8
5000a

503194071 Center Shock

Center Shock
5000c

503193479 Black - Spring (Short)

Black - Spring (Short)
5000d

503193065 Black - Spring (Short)

Black - Spring (Short)
5000g

503194270 Spring Stopper

Spring Stopper
5000h

503189117 Bushing

Bushing
5000j

503189282 Bushing

Bushing
5000k

503189271 Bushing

Bushing
5000m

503193033 Shock Adjuster Knob

Shock Adjuster Knob
5000n

250000644 Allen Screw M3 X 10

Allen Screw M3 X 10
5000p

503192743 Spring Spacer

Spring Spacer
5010

207005044 Hex. Screw M10 X 1.5 X 50

Hex. Screw M10 X 1.5 X 50
5020

233601466 Elastic Locking Nut M10

Elastic Locking Nut M10
5500>5500h

503193854 Rear Shock. Includes 5500 to 5500h

Rear Shock. Includes 5500 to 5500h
5500a

415038700 O-Ring

O-Ring
5500b

415093810 Bolt

Bolt
5500c

415093804 O-Ring

O-Ring
5500d

505070400 O-Ring

O-Ring
5500e

505070399 Screw

Screw
5500f

505070398 Air Valve

Air Valve
5500g

415093806 Piston Ring

Piston Ring
5500h

415093807 O-Ring

O-Ring
5530>5530a

503193025 Adjustment Knob Ass'y. Includes 5530 to 5530a

Adjustment Knob Ass'y. Includes 5530 to 5530a
5530a

516004752 Shock Knob Adjustment Decal

Shock Knob Adjustment Decal
5540

250000644 Allen Screw M3 X 10

Allen Screw M3 X 10
5550

503193166 Plate

Plate
5560

205961060 Socket Head Screw M6 X 10, Scotch Grip

Socket Head Screw M6 X 10, Scotch Grip
5570

503192606 Rear Shock Axle

Rear Shock Axle
5580

505072663 Leg Cushion

Leg Cushion
5590

207684044 Hex. Flanged Screw M8 X 1.25 X 40

Hex. Flanged Screw M8 X 1.25 X 40
5600

233281466 Elastic Flang Nut M8

Elastic Flang Nut M8
