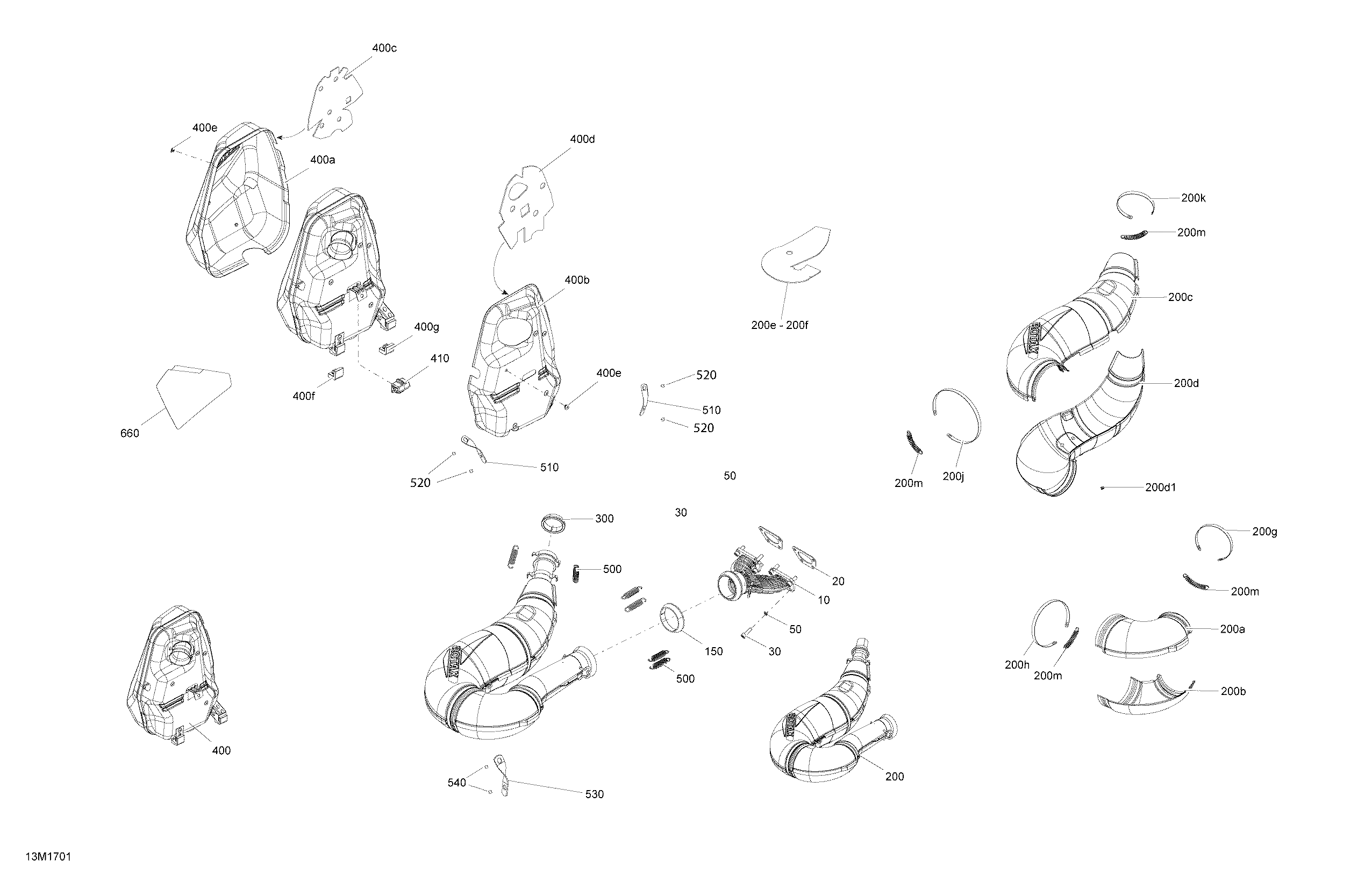

01- Exhaust System для BRP Ski-Doo RENEGADE - 2-STROKE - 800R E-TEC - 2017

  • №
    Артикул
    Название
  • 10
    420673373 Exhaust Manifold
    Exhaust Manifold
  • 20
    420430482 Gasket
    Gasket
  • 30
    250000414 Socket Head Screw M8 X 22
    Socket Head Screw M8 X 22
  • 50
    250200111 Washer
    Washer
  • 150
    514053487 Exhaust Gasket
    Exhaust Gasket
  • 200>200m
    514055062 Exhaust Tuned Pipe. Package Backcountry & Backcountry X. Includes 200 to 200m
    Exhaust Tuned Pipe. Package Backcountry & Backcountry X. Includes 200 to 200m
  • 200>200m
    514055063 Exhaust Tuned Pipe. Package Enduro & X-RS. Includes 200 to 200m
    Exhaust Tuned Pipe. Package Enduro & X-RS. Includes 200 to 200m
  • 200a
    514054992 Front Upper Half Enveloppe
    Front Upper Half Enveloppe
  • 200b
    514054993 Front Lower Half Enveloppe
    Front Lower Half Enveloppe
  • 200c
    514055067 Rear Upper Half Enveloppe. Package Backcountry & Backcountry X
    Rear Upper Half Enveloppe. Package Backcountry & Backcountry X
  • 200c
    514055039 Rear Upper Half Enveloppe. Package Enduro & X-RS
    Rear Upper Half Enveloppe. Package Enduro & X-RS
  • 200d>200d1
    514054990 Rear Lower Half Enveloppe. Includes 200d to 200d1
    Rear Lower Half Enveloppe. Includes 200d to 200d1
  • 200d1
    293150091 Henrob Rivet
    Henrob Rivet
  • 200e
    514054487 Insulating Wool
    Insulating Wool
  • 200f
    514054553 Insulating Wool. Package Backcountry & Backcountry X
    Insulating Wool. Package Backcountry & Backcountry X
  • 200g
    514054408 Retaining Strap
    Retaining Strap
  • 200h
    514054409 Retaining Strap
    Retaining Strap
  • 200j
    514054410 Retaining Strap
    Retaining Strap
  • 200k
    514053499 Retaining Strap
    Retaining Strap
  • 200M
    514053643 Spring
    Spring
  • 300
    514054174 Exhaust Gasket
    Exhaust Gasket
  • 400>400g
    514055083 Muffler Ass'y. Includes 400 to 400g
    Muffler Ass'y. Includes 400 to 400g
  • 400a
    514054986 RH Deflector
    RH Deflector
  • 400b
    514054967 LH Deflector
    LH Deflector
  • 400c
    514054711 RH Insulating Wool
    RH Insulating Wool
  • 400d
    514054299 LH Insulating Wool
    LH Insulating Wool
  • 400e
    390910000 Pop Rivet 3/16”
    Pop Rivet 3/16”
  • 400f
    514054274 Lower Stopper
    Lower Stopper
  • 400g
    514054496 Lower Stopper
    Lower Stopper
  • 410
    514054606 Upper Stopper
    Upper Stopper
  • 500
    415107100 Spring
    Spring
  • 510
    514054974 Spring Bracket, 5mm hole
    Spring Bracket, 5mm hole
  • 530
    514054975 Spring Bracket, 8.0mm hole
    Spring Bracket, 8.0mm hole
  • 660
    514054987 Heat Shield (Rectangle)
    Heat Shield (Rectangle)
