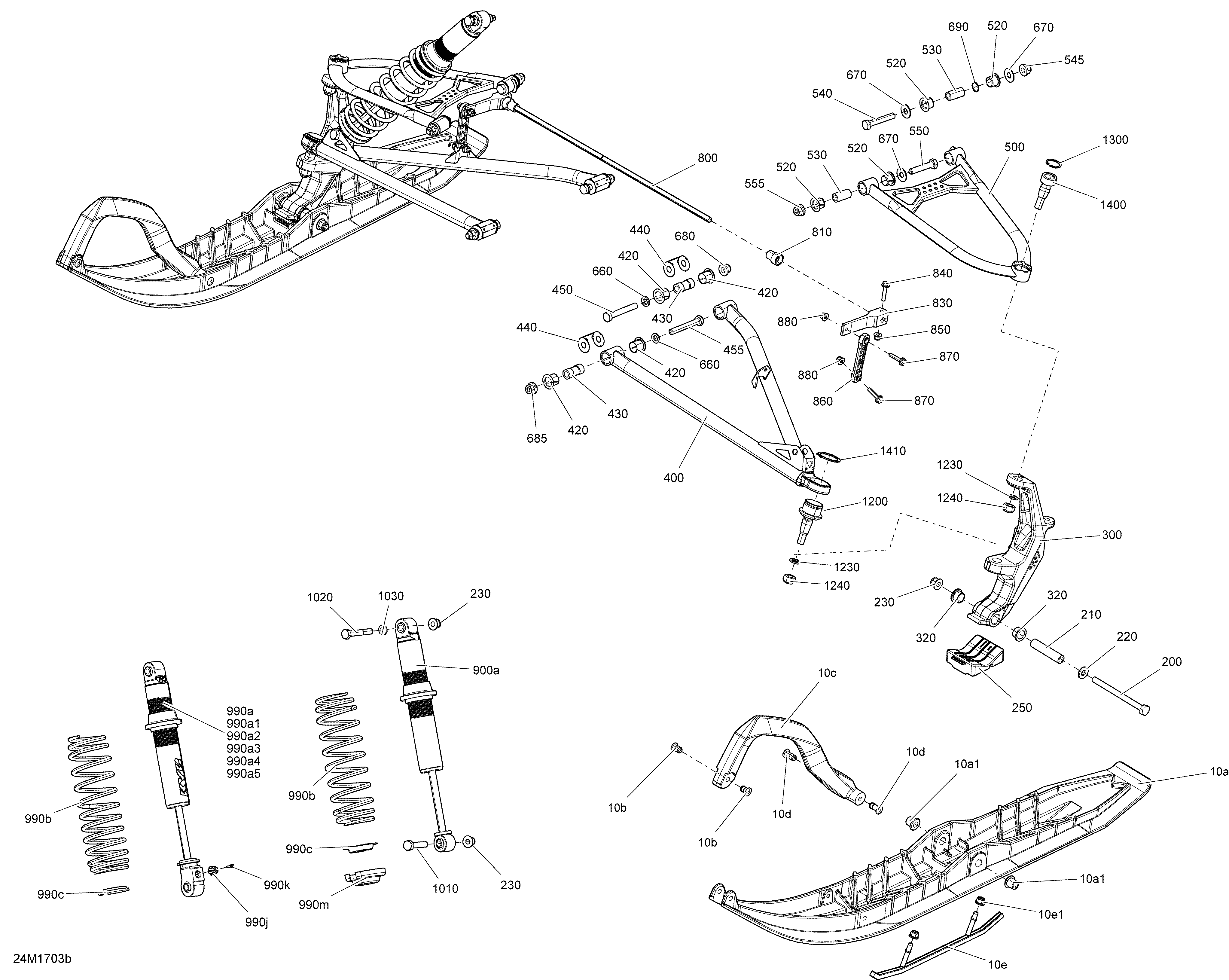

07- Front Suspension And Ski - Package Backcountry_Backcountry X для BRP Ski-Doo RENEGADE - 2-STROKE - 800R E-TEC - 2017

  • №
    Артикул
    Название
  • 10a>10a1
    505073227 Black DS 2 Ski. Includes 10a to 10a1
    Black DS 2 Ski. Includes 10a to 10a1
  • 10a1
    505071781 Ski Bushing
    Ski Bushing
  • 10b
    505071812 Retainer 17mm long
    Retainer 17mm long
  • 10c
    505072976 Black Handle
    Black Handle
  • 10d
    505072133 Retainer 23mm Long
    Retainer 23mm Long
  • 10e>10e1
    860201044 Carbide Runner Kit (Square Runner). Includes 10e to 10e1
    Carbide Runner Kit (Square Runner). Includes 10e to 10e1
  • 10e1
    233281414 Hex. Flanged Elastic Nut M8 X 1.25
    Hex. Flanged Elastic Nut M8 X 1.25
  • 200
    250000703 Hex. Screw M10 X 130
    Hex. Screw M10 X 130
  • 210
    506133300 Spacer
    Spacer
  • 220
    503192496 Washer
    Washer
  • 230
    233201464 Hex. Elast. Flanged Nut M10 x 1.5
    Hex. Elast. Flanged Nut M10 x 1.5
  • 250
    505072594 Ski Stopper
    Ski Stopper
  • 300
    505073630 Black Ski Leg LH. Package Backcountry & Backcountry X (UXHB,UXHD)
    Black Ski Leg LH. Package Backcountry & Backcountry X (UXHB,UXHD)
  • 300
    505073631 Black Ski Leg RH. Package Backcountry & Backcountry X (UXHB,UXHD)
    Black Ski Leg RH. Package Backcountry & Backcountry X (UXHB,UXHD)
  • 300
    505074124 White Ski Leg LH. Package Backcountry X (UXHF, UXHH, UXHJ)
    White Ski Leg LH. Package Backcountry X (UXHF, UXHH, UXHJ)
  • 300
    505074125 White Ski Leg RH. Package Backcountry X (UXHF, UXHH, UXHJ)
    White Ski Leg RH. Package Backcountry X (UXHF, UXHH, UXHJ)
  • 320
    505072690 Leg Bushing
    Leg Bushing
  • 400
    505073584 Lower RH Arm, Black Epoxy
    Lower RH Arm, Black Epoxy
  • 400
    505073583 Lower LH Arm, Black Epoxy
    Lower LH Arm, Black Epoxy
  • 420
    505072208 Bushing
    Bushing
  • 430
    505072209 Bushing
    Bushing
  • 440
    505072634 Wear Plate
    Wear Plate
  • 450
    250000291 Screw Hex. M10 X 1.25 X 70
    Screw Hex. M10 X 1.25 X 70
  • 455
    250000291 Screw Hex. M10 X 1.25 X 70
    Screw Hex. M10 X 1.25 X 70
  • 500
    505073588 Uper LH Arm, Black Epoxy
    Uper LH Arm, Black Epoxy
  • 500
    505073589 Uper RH Arm, Black Epoxy
    Uper RH Arm, Black Epoxy
  • 520
    505072250 Bushing
    Bushing
  • 530
    505072143 Bushing
    Bushing
  • 540
    250000290 Screw Hex. M10 X 1.25 X 60
    Screw Hex. M10 X 1.25 X 60
  • 545
    250100165 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 550
    250000289 Screw Hex. M10 X 1.25 X 50
    Screw Hex. M10 X 1.25 X 50
  • 555
    250100165 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 660
    503189564 Washer
    Washer
  • 670
    505072392 Washer
    Washer
  • 680
    250100165 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 685
    250100165 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 690
    505072448 O-Ring
    O-Ring
  • 800
    505072602 Stabilisator
    Stabilisator
  • 810
    505072064 Bushing
    Bushing
  • 830
    505072394 Stabilisator Lever
    Stabilisator Lever
  • 840
    207663056 Hex Flanged Screw M6 X 1.0 X 30
    Hex Flanged Screw M6 X 1.0 X 30
  • 850
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 860
    505072204 Double Ball Joint Link
    Double Ball Joint Link
  • 870
    207663056 Hex Flanged Screw M6 X 1.0 X 30
    Hex Flanged Screw M6 X 1.0 X 30
  • 880
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 990a
    505073699 Front Shock. Package Backcountry (UGHA, UGHB, UGHC, UGHD)
    Front Shock. Package Backcountry (UGHA, UGHB, UGHC, UGHD)
  • 990a>990a5
    505073555 Front Shock. Package Backcountry X, Model Europe (UXHJ). Includes 990a to 990a5
    Front Shock. Package Backcountry X, Model Europe (UXHJ). Includes 990a to 990a5
  • 990a>990a5
    505073702 Front Shock. Package Backcountry X, Model North America (UXHB, UXHD, UXHF, UXHH). Includes 990a to 990a5
    Front Shock. Package Backcountry X, Model North America (UXHB, UXHD, UXHF, UXHH). Includes 990a to 990a5
  • 990a1
    414888312 O-Ring. Package Backcountry X
    O-Ring. Package Backcountry X
  • 990a2
    503189308 Piston Ring. Package Backcountry X
    Piston Ring. Package Backcountry X
  • 990a3
    505070398 Air Valve. Package Backcountry X
    Air Valve. Package Backcountry X
  • 990a4
    505070399 Screw. Package Backcountry X
    Screw. Package Backcountry X
  • 990a5
    505070400 O-Ring. Package Backcountry X
    O-Ring. Package Backcountry X
  • 990b
    505072526 Deep Black Spring. Package Backcountry
    Deep Black Spring. Package Backcountry
  • 990b
    505072846 Deep Black Spring. Package Backcountry X
    Deep Black Spring. Package Backcountry X
  • 990c
    706200881 Spring Stopper. Package Backcountry
    Spring Stopper. Package Backcountry
  • 990c
    503194270 Spring Stopper. Package Backcountry X
    Spring Stopper. Package Backcountry X
  • 990j
    505072753 Adjustment Knob. Package Backcountry X
    Adjustment Knob. Package Backcountry X
  • 990k
    205031060 Socket Screw M3 X 0.5 x 10. Package Backcountry X
    Socket Screw M3 X 0.5 x 10. Package Backcountry X
  • 990m
    706200785 Cap. Package Backcountry
    Cap. Package Backcountry
  • 1010
    207005554 Hex Screw M10 X 1.5 X 55
    Hex Screw M10 X 1.5 X 55
  • 1020
    207006544 Hex. Screw M10 X 1.5 X 65
    Hex. Screw M10 X 1.5 X 65
  • 1030
    503189564 Washer
    Washer
  • 1200
    505073636 Ball Joint
    Ball Joint
  • 1230
    503192491 Washer
    Washer
  • 1240
    232521464 Hex Elastic Nut M12 X 1.25
    Hex Elastic Nut M12 X 1.25
  • 1300
    293370070 Circlip
    Circlip
  • 1400
    505072913 Upper Ball Joint
    Upper Ball Joint
  • 1410
    293370035 Circlip
    Circlip
