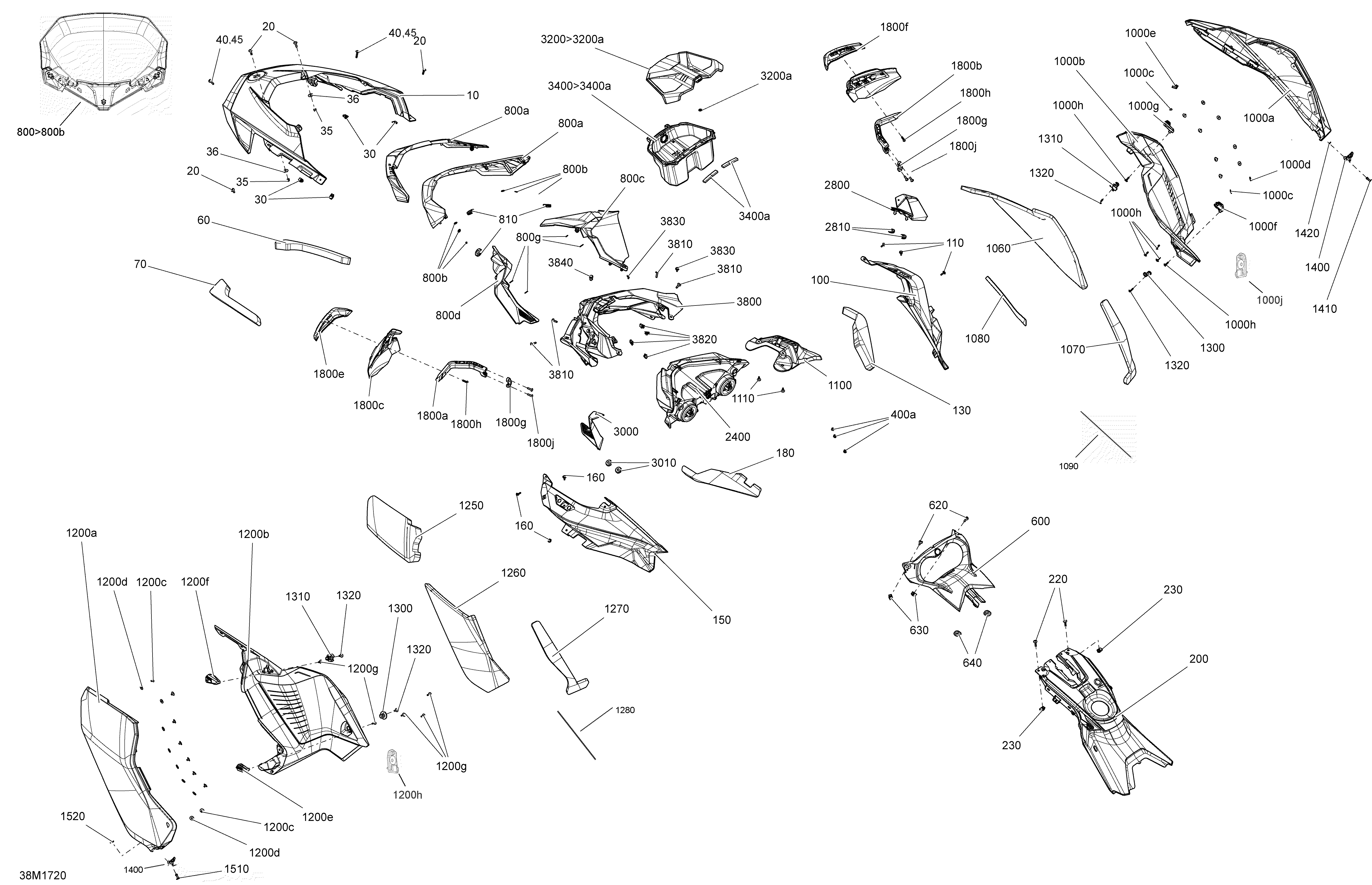

09- Hood - All Models для BRP Ski-Doo MXZ - 2-STROKE - 850 E-TEC - 2017
-
№АртикулНазвание
-
10517305744 Black - Front Hood. Package TNT & X, Model BlackBlack - Front Hood. Package TNT & X, Model Black
-
10517306099 Yellow - Front Hood. Package X, Model YellowYellow - Front Hood. Package X, Model Yellow
-
10517306269 White - Front Hood. Package TNT, Model WhiteWhite - Front Hood. Package TNT, Model White
-
20250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
30250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
35233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
36250200040 Flat WasherFlat Washer
-
40250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
60517305763 Front Hood Foam RHFront Hood Foam RH
-
70517305764 Front Hood Foam LHFront Hood Foam LH
-
100517306007 Black - Hood RH. Package TNT & X, Model BlackBlack - Hood RH. Package TNT & X, Model Black
-
100517306100 Yellow - Hood RH. Package X, Model YellowYellow - Hood RH. Package X, Model Yellow
-
100517306270 White - Hood RH. Package TNT, Model WhiteWhite - Hood RH. Package TNT, Model White
-
110250000725 Screw M4 X 16Screw M4 X 16
-
130517306001 Hood Foam RHHood Foam RH
-
150517306008 Black - Hood LH. Package TNT & X, Model BlackBlack - Hood LH. Package TNT & X, Model Black
-
150517306101 Yellow - Hood LH. Package X, Model YellowYellow - Hood LH. Package X, Model Yellow
-
150517306271 White - Hood LH. Package TNT, Model WhiteWhite - Hood LH. Package TNT, Model White
-
160250000725 Screw M4 X 16Screw M4 X 16
-
180517306002 Hood Foam LHHood Foam LH
-
200517305745 Rear Console, Deep BlackRear Console, Deep Black
-
220250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
230250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
240517304518 Console NutConsole Nut
-
400a275500241 Black - CapBlack - Cap
-
600517305781 Indicator Support, Deep BlackIndicator Support, Deep Black
-
620250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
630250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
640705000321 Oval WasherOval Washer
-
800>800b860201448 Low Windshield Kit, , Black 63% Light. Includes 800 to 800bLow Windshield Kit, , Black 63% Light. Includes 800 to 800b
-
800a517305749 Windshield Support, Deep BlackWindshield Support, Deep Black
-
800b732610072 Push NutPush Nut
-
800a517306183 Windshield Support, Deep BlackWindshield Support, Deep Black
-
800b732610072 Push NutPush Nut
-
800c517306063 Deflector RH, Black 63% Light Transm.Deflector RH, Black 63% Light Transm.
-
800d517306064 Deflector LH, Black 63% Light Transm.Deflector LH, Black 63% Light Transm.
-
800e250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
800f250200025 Washer M5Washer M5
-
800g250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
810517303756 GrommetGrommet
-
1000a517305860 Black, RH Panel. Package TNT & X, Model BlackBlack, RH Panel. Package TNT & X, Model Black
-
1000a517306087 Yellow - Panel RH. Package X, Model YellowYellow - Panel RH. Package X, Model Yellow
-
1000a517306272 White - Panel RH. Package TNT, Model WhiteWhite - Panel RH. Package TNT, Model White
-
1000b517305861 Panel Trim RH, Deep BlackPanel Trim RH, Deep Black
-
1000c293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1000d517124300 WasherWasher
-
1000e517305109 Rivet PlateRivet Plate
-
1000f517305773 Rear Latch RHRear Latch RH
-
1000g517305979 Front Latch RHFront Latch RH
-
1000h250000725 Screw M4 X 16Screw M4 X 16
-
1000j517306311 Hook RHHook RH
-
1060517305767 Central Panel Foam RHCentral Panel Foam RH
-
1070517306116 RH Rear Panel FoamRH Rear Panel Foam
-
1080517306262 Rubber SheetRubber Sheet
-
1100517305862 Grill RH, Deep BlackGrill RH, Deep Black
-
1110250000725 Screw M4 X 16Screw M4 X 16
-
1200a517305864 Black, LH Panel. Package TNT & X, Model BlackBlack, LH Panel. Package TNT & X, Model Black
-
1200a517306096 Yellow - Panel LH. Package X, Model YellowYellow - Panel LH. Package X, Model Yellow
-
1200a517306273 White - Panel LH. Package TNT, Model WhiteWhite - Panel LH. Package TNT, Model White
-
1200b517305865 Black - Panel Trim LHBlack - Panel Trim LH
-
1200c293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
1200d517124300 WasherWasher
-
1200e517305774 Rear Latch LHRear Latch LH
-
1200f517305980 Front Latch LHFront Latch LH
-
1200g250000725 Screw M4 X 16Screw M4 X 16
-
1200h517306312 Hook LHHook LH
-
1250517305769 Front Panel Foam LHFront Panel Foam LH
-
1260517305770 Central Panel Foam LHCentral Panel Foam LH
-
1270517305766 Rear Panel Foam LHRear Panel Foam LH
-
1300517305985 Rear StudRear Stud
-
1310517305988 Front StudFront Stud
-
1320250000725 Screw M4 X 16Screw M4 X 16
-
1400517306309 Lower Latch RHLower Latch RH
-
1410293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
1420517124300 WasherWasher
-
1510293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
1520517124300 WasherWasher
-
1800a517305290 Deep Black LH ArmDeep Black LH Arm
-
1800b517305293 Deep Black RH ArmDeep Black RH Arm
-
1800c517305291 LH Deflector, Smoke 60% Transm.LH Deflector, Smoke 60% Transm.
-
1800d517305294 RH Deflector, Smoke 60% Transm.RH Deflector, Smoke 60% Transm.
-
1800e517305589 Sunburst Yellow - LH Cap, SKI-DOO. Package X, Model YellowSunburst Yellow - LH Cap, SKI-DOO. Package X, Model Yellow
-
1800e517305601 Deep Black - LH Cap, SKI-DOO. Package TNT & X, Model BlackDeep Black - LH Cap, SKI-DOO. Package TNT & X, Model Black
-
1800e517305930 White - LH Cap. Package TNT, Model WhiteWhite - LH Cap. Package TNT, Model White
-
1800f517305588 Sunburst Yellow - RH Cap, SKI-DOOSunburst Yellow - RH Cap, SKI-DOO
-
1800f517305602 Deep Black - RH Cap, SKI-DOODeep Black - RH Cap, SKI-DOO
-
1800f517305931 White - RH CapWhite - RH Cap
-
1800g517305296 BrideBride
-
1800h250000760 Torx Screw Truss Head K50X20 T20Torx Screw Truss Head K50X20 T20
-
1800j250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
2400517305752 HeadlampHeadlamp
-
2800517305776 Deflector RH, Black 63% Light Transm.Deflector RH, Black 63% Light Transm.
-
2810517302841 GrommetGrommet
-
3000517305777 Deflector LH, Black 63% Light Transm.Deflector LH, Black 63% Light Transm.
-
3010517302841 GrommetGrommet
-
3200>3200a517305871 Cover Ass'y, Deep Black. Includes 3200 to 3200aCover Ass'y, Deep Black. Includes 3200 to 3200a
-
3200a732610072 Push NutPush Nut
-
3400>3400a517306058 Trunk Ass'y. Includes 3400 to 3400aTrunk Ass'y. Includes 3400 to 3400a
-
3400a517305157 Seal JointSeal Joint
-
3800517305746 Headlamp Fairing, Deep BlackHeadlamp Fairing, Deep Black
-
3810250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
3820250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
3830250000725 Screw M4 X 16Screw M4 X 16
-
3840293150089 Tuflok Plastic RivetTuflok Plastic Rivet
