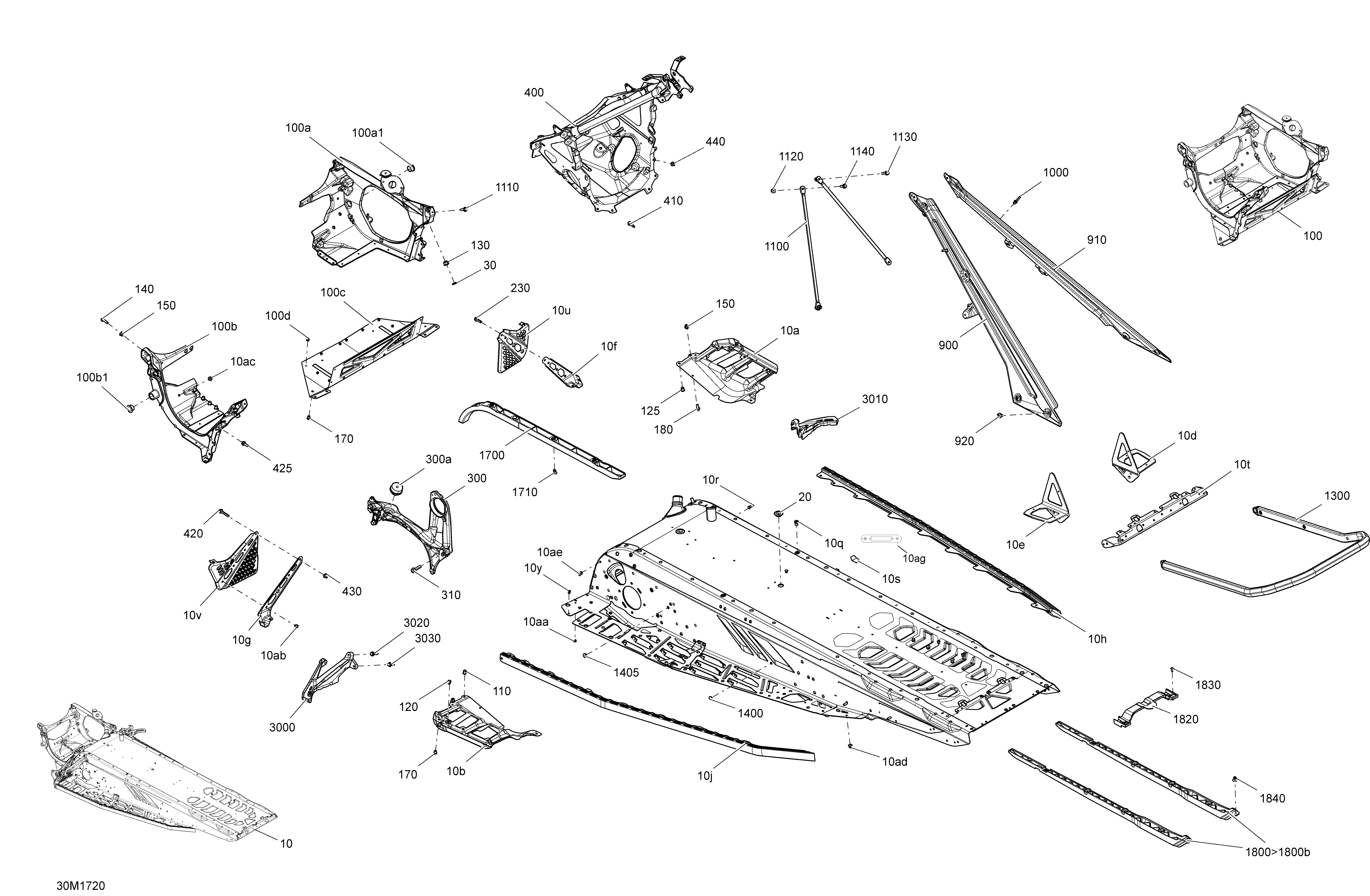

09- Frame - All Models для BRP Ski-Doo MXZ - 2-STROKE - 850 E-TEC - 2017

  • №
    Артикул
    Название
  • 10>10ag
    415130142 Black - Tunnel Module 129. Includes 10 to 10ag
    Black - Tunnel Module 129. Includes 10 to 10ag
  • 10a
    518328455 RH Footrest Reinforcement
    RH Footrest Reinforcement
  • 10b
    518328456 LH Footrest Reinforcement
    LH Footrest Reinforcement
  • 10d
    518328449 RH Suspension Bracket
    RH Suspension Bracket
  • 10e
    518328450 LH Suspension Bracket
    LH Suspension Bracket
  • 10f
    518329048 RH Reinforcement Footrest
    RH Reinforcement Footrest
  • 10g
    518329049 LH Reinforcement Footrest
    LH Reinforcement Footrest
  • 10h
    518328451 RH Roller
    RH Roller
  • 10j
    518328452 LH Roller
    LH Roller
  • 10q
    293450232 Insert
    Insert
  • 10r
    250300027 Clinch Stud M6 X 20
    Clinch Stud M6 X 20
  • 10s
    210261050 Screw-Forming Hex.Hd.Fl.Din.7500D
    Screw-Forming Hex.Hd.Fl.Din.7500D
  • 10t
    518328990 Rear Cap
    Rear Cap
  • 10u
    518328460 RH Footrest
    RH Footrest
  • 10v
    518328463 LH Footrest
    LH Footrest
  • 10y
    293150203 Rivet AVIBULB 3/16
    Rivet AVIBULB 3/16
  • 10aa
    293150144 Stavex Rivet
    Stavex Rivet
  • 10ab
    293150096 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 10ac
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 10ad
    293150174 Hemlock Rivet, 6.4 mm
    Hemlock Rivet, 6.4 mm
  • 10ae
    293150147 Hemlock Rivet
    Hemlock Rivet
  • 10af
    518328512 Radiator 129
    Radiator 129
  • 10ag
    518329480 Member Fixation Plate
    Member Fixation Plate
  • 20
    293730052 Black Plug
    Black Plug
  • 30
    506151252 Washer
    Washer
  • 70
    250000942 Hex Screw M8 X 30
    Hex Screw M8 X 30
  • 80
    250200111 Washer
    Washer
  • 90
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 100>100d
    518328485 Engine Module. Includes 100 to 100d
    Engine Module. Includes 100 to 100d
  • 100a>100a1
    518328487 RH Member Ass'y. Includes 100a to 100a1
    RH Member Ass'y. Includes 100a to 100a1
  • 100a1
    505073317 Leg Cushion
    Leg Cushion
  • 100b>100b1
    518328490 LH Member Ass'y. Includes 100b to 100b1
    LH Member Ass'y. Includes 100b to 100b1
  • 100b1
    505073317 Leg Cushion
    Leg Cushion
  • 100c
    518328486 Bottom Plate
    Bottom Plate
  • 100d
    293150203 Rivet AVIBULB 3/16
    Rivet AVIBULB 3/16
  • 110
    293150147 Hemlock Rivet
    Hemlock Rivet
  • 120
    250000712 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 125
    293150147 Hemlock Rivet
    Hemlock Rivet
  • 130
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 140
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 150
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 170
    293450268 Insert
    Insert
  • 180
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 230
    207562044 Flanged Screw M6 X 20, Scotch Grip
    Flanged Screw M6 X 20, Scotch Grip
  • 300
    518328693 Brace Ass'y. Includes 300 to 300a
    Brace Ass'y. Includes 300 to 300a
  • 300a
    512060295 Rubber Mount
    Rubber Mount
  • 310
    210283040 Hex. Flanged Screw M6 X 30
    Hex. Flanged Screw M6 X 30
  • 400
    518328476 Suspension Module
    Suspension Module
  • 410
    250000822 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 420
    207663544 Hex. Flanged Screw M6 X 35
    Hex. Flanged Screw M6 X 35
  • 430
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 440
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 900
    518329077 Black - LH Member
    Black - LH Member
  • 910
    518329078 Black - RH Member
    Black - RH Member
  • 920
    250000887 Pan Head Torx Screw M8 X 12
    Pan Head Torx Screw M8 X 12
  • 1000
    250300629 Stud M5 X 20
    Stud M5 X 20
  • 1100
    518328497 Upper Column Support
    Upper Column Support
  • 1110
    207562044 Flanged Screw M6 X 20, Scotch Grip
    Flanged Screw M6 X 20, Scotch Grip
  • 1120
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 1130
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 1140
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 1300
    518328745 Rear Bumper
    Rear Bumper
  • 1400
    293730047 Black Dart 8 mm
    Black Dart 8 mm
  • 1405
    293730060 Black Dart 10 mm
    Black Dart 10 mm
  • 1700
    518328502 Front Protector
    Front Protector
  • 1710
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 1800>1800b
    520001543 Rear Protector. Includes 1800 to 1800b
    Rear Protector. Includes 1800 to 1800b
  • 1800a
    708000759 Rubber Stopper
    Rubber Stopper
  • 1800b
    293830005 Rubber Bumper
    Rubber Bumper
  • 1820
    520001545 Support
    Support
  • 1830
    250000577 Torx Truss K40 X 12
    Torx Truss K40 X 12
  • 1840
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 3000
    518329132 Toe Hold
    Toe Hold
  • 3010
    518329134 Toe Hold
    Toe Hold
  • 3020
    250000793 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 3030
    207562054 Flanged Hex. Screw S.GRIP M6 X 20
    Flanged Hex. Screw S.GRIP M6 X 20
