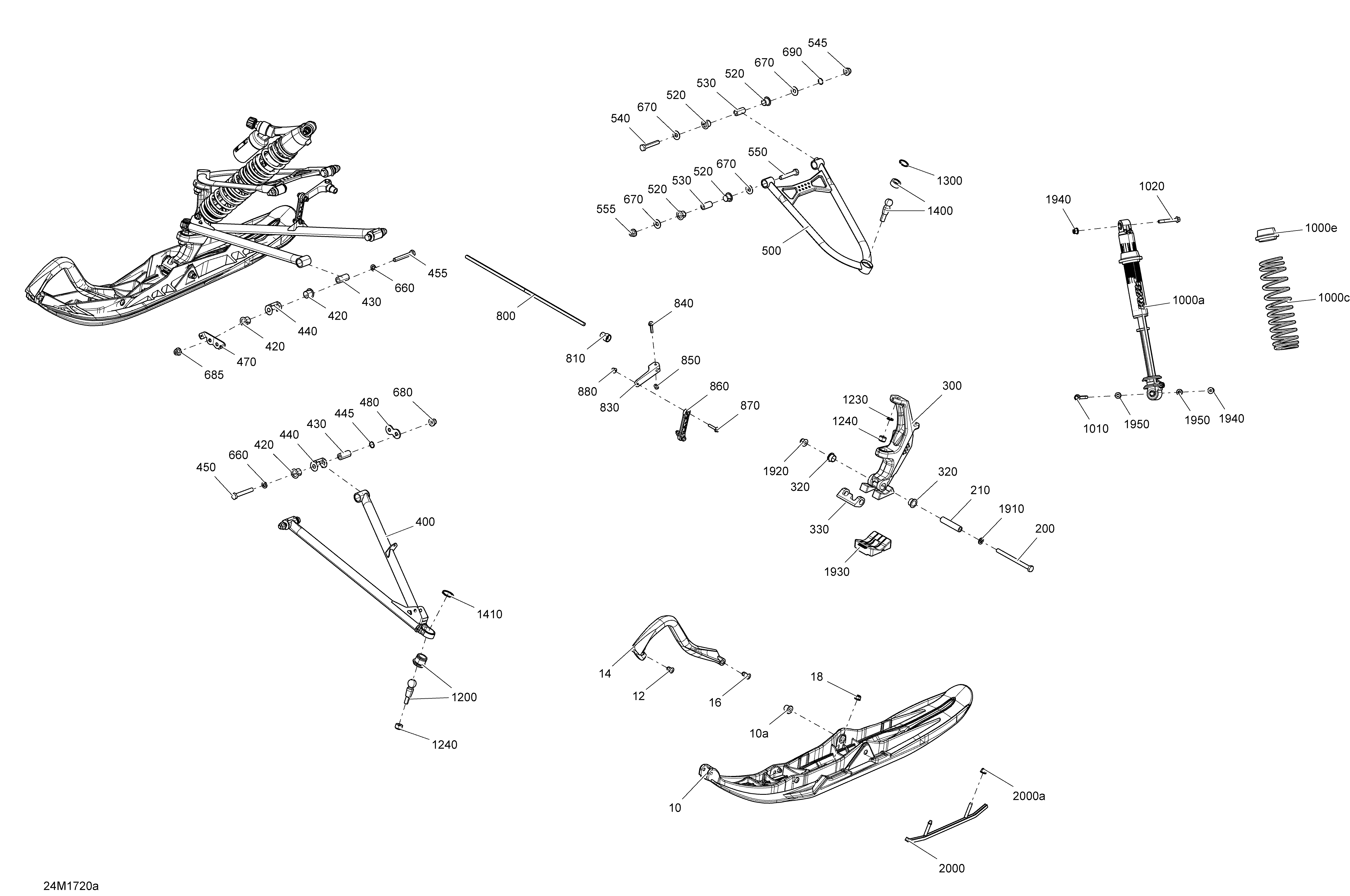

07- Front Suspension And Ski - All Models для BRP Ski-Doo MXZ - 2-STROKE - 850 E-TEC - 2017

  • №
    Артикул
    Название
  • 10
    505073227 Black DS 2 Ski. Package X Black, Model Europe
    Black DS 2 Ski. Package X Black, Model Europe
  • 10
    505073658 Yellow Sunburst DS Ski. Package X Yellow, Model Europe
    Yellow Sunburst DS Ski. Package X Yellow, Model Europe
  • 10
    505072854 Deep Black LH Pilot 5.7 Ski. Ski 5.7
    Deep Black LH Pilot 5.7 Ski. Ski 5.7
  • 10
    505072855 Deep Black RH Pilot 5.7 Ski. Ski 5.7
    Deep Black RH Pilot 5.7 Ski. Ski 5.7
  • 10
    505073786 Deep Black LH Pilot TS Ski. Ski TS. Includes 10 to 10a
    Deep Black LH Pilot TS Ski. Ski TS. Includes 10 to 10a
  • 10
    505073796 Deep Black RH Pilot TS Ski. Ski TS. Includes 10 to 10a
    Deep Black RH Pilot TS Ski. Ski TS. Includes 10 to 10a
  • 10
    505073575 Sunburst Yellow LH Pilot 5.7 Ski. Ski 5.7
    Sunburst Yellow LH Pilot 5.7 Ski. Ski 5.7
  • 10
    505073576 Sunburst Yellow RH Pilot 5.7 Sk. Ski 5.7
    Sunburst Yellow RH Pilot 5.7 Sk. Ski 5.7
  • 10
    505073851 Sunburst Yellow LH Pilot TS Ski. Ski TS
    Sunburst Yellow LH Pilot TS Ski. Ski TS
  • 10
    505073852 Sunburst Yellow RH Pilot TS Ski. Ski TS
    Sunburst Yellow RH Pilot TS Ski. Ski TS
  • 10a
    505071781 Ski Bushing
    Ski Bushing
  • 12
    505071812 Retainer
    Retainer
  • 14
    505070963 Black Handle. Package TNT
    Black Handle. Package TNT
  • 14
    505072976 Black Handle. Package X, Model Europe
    Black Handle. Package X, Model Europe
  • 14
    505070963 Black Handle. Package X, Model North America
    Black Handle. Package X, Model North America
  • 16
    505072133 Retainer
    Retainer
  • 18
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 200
    250000703 Hex. Screw M10 X 130
    Hex. Screw M10 X 130
  • 210
    505073691 Ski Axle
    Ski Axle
  • 300
    505074020 Bare - LH Ski Leg 10
    Bare - LH Ski Leg 10
  • 300
    505074021 Bare - RH Ski Leg 10
    Bare - RH Ski Leg 10
  • 300
    505073708 Black - LH Ski Leg 10
    Black - LH Ski Leg 10
  • 300
    505073711 Black - RH Ski Leg 10
    Black - RH Ski Leg 10
  • 300
    505074016 White - LH Ski Leg 10
    White - LH Ski Leg 10
  • 300
    505074017 White - RH Ski Leg 10
    White - RH Ski Leg 10
  • 320
    505072690 Leg Bushing
    Leg Bushing
  • 330
    505073779 Ski Stopper
    Ski Stopper
  • 400
    505073720 RH Lower Arm 42''. Package X
    RH Lower Arm 42''. Package X
  • 400
    505073714 LH Lower Arm 42''. Package X
    LH Lower Arm 42''. Package X
  • 400
    505074194 RH Lower Arm 42''. Package TNT
    RH Lower Arm 42''. Package TNT
  • 400
    505074193 LH Lower Arm 42''. Package TNT
    LH Lower Arm 42''. Package TNT
  • 420
    505072208 Bushing
    Bushing
  • 430
    505072209 Bushing
    Bushing
  • 440
    505072634 Wear Plate
    Wear Plate
  • 445
    505072448 O-Ring
    O-Ring
  • 450
    250000291 Screw Hex. M10 X 70
    Screw Hex. M10 X 70
  • 455
    250000291 Screw Hex. M10 X 70
    Screw Hex. M10 X 70
  • 470
    505073723 Wear Plate
    Wear Plate
  • 480
    505073844 Plate
    Plate
  • 500
    505073724 LH Upper Arm 42''
    LH Upper Arm 42''
  • 500
    505073728 RH Upper Arm 42''
    RH Upper Arm 42''
  • 520
    505072250 Bushing
    Bushing
  • 530
    505072143 Bushing
    Bushing
  • 540
    250000290 Screw Hex. M10 X 60
    Screw Hex. M10 X 60
  • 545
    250100165 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 550
    250000290 Screw Hex. M10 X 60
    Screw Hex. M10 X 60
  • 555
    250100165 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 660
    503189564 Washer
    Washer
  • 670
    505072392 Washer
    Washer
  • 680
    250100165 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 685
    250100165 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 690
    505072448 O-Ring
    O-Ring
  • 800
    505073819 Stabilisator
    Stabilisator
  • 810
    505072064 Bushing
    Bushing
  • 830
    505073731 Stabilisator Lever
    Stabilisator Lever
  • 840
    207663056 Hex Flanged Screw M6 X 30
    Hex Flanged Screw M6 X 30
  • 850
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 860
    505072204 Double Ball Joint Link
    Double Ball Joint Link
  • 870
    207663056 Hex Flanged Screw M6 X 30
    Hex Flanged Screw M6 X 30
  • 880
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 1000a
    505074037 Front Shock HPG. Package X, Model North America
    Front Shock HPG. Package X, Model North America
  • 1000a
    505074127 Front Shock. Package TNT
    Front Shock. Package TNT
  • 1000a
    505074130 Front Shock HPG. Package X, Model Europe
    Front Shock HPG. Package X, Model Europe
  • 1000c
    505074046 Spring
    Spring
  • 1000e
    503194270 Spring Stopper
    Spring Stopper
  • 1010
    250000824 Hexagonal Flange Screw M8 X 58
    Hexagonal Flange Screw M8 X 58
  • 1020
    250000824 Hexagonal Flange Screw M8 X 58
    Hexagonal Flange Screw M8 X 58
  • 1200
    505074009 Ball Joint
    Ball Joint
  • 1230
    503192491 Washer
    Washer
  • 1240
    232521464 Hex Elastic Nut M12
    Hex Elastic Nut M12
  • 1300
    293370070 Circlip
    Circlip
  • 1400
    505072913 Upper Ball Joint
    Upper Ball Joint
  • 1410
    293370098 Snap Ring
    Snap Ring
  • 1910
    503192496 Washer
    Washer
  • 1920
    233201464 Hex. Elast. Flanged Nut M10
    Hex. Elast. Flanged Nut M10
  • 1930
    505072594 Ski Stopper
    Ski Stopper
  • 1940
    233281466 Elastic Flang Nut M8
    Elastic Flang Nut M8
  • 1950
    505073892 Spacer
    Spacer
  • 2000
    860201044 Carbide Runner Kit. Ski 5.7. Includes 2000 to 2000a
    Carbide Runner Kit. Ski 5.7. Includes 2000 to 2000a
  • 2000a
    233281414 Hex. Flanged Elastic Nut M8. Ski 5.7
    Hex. Flanged Elastic Nut M8. Ski 5.7
