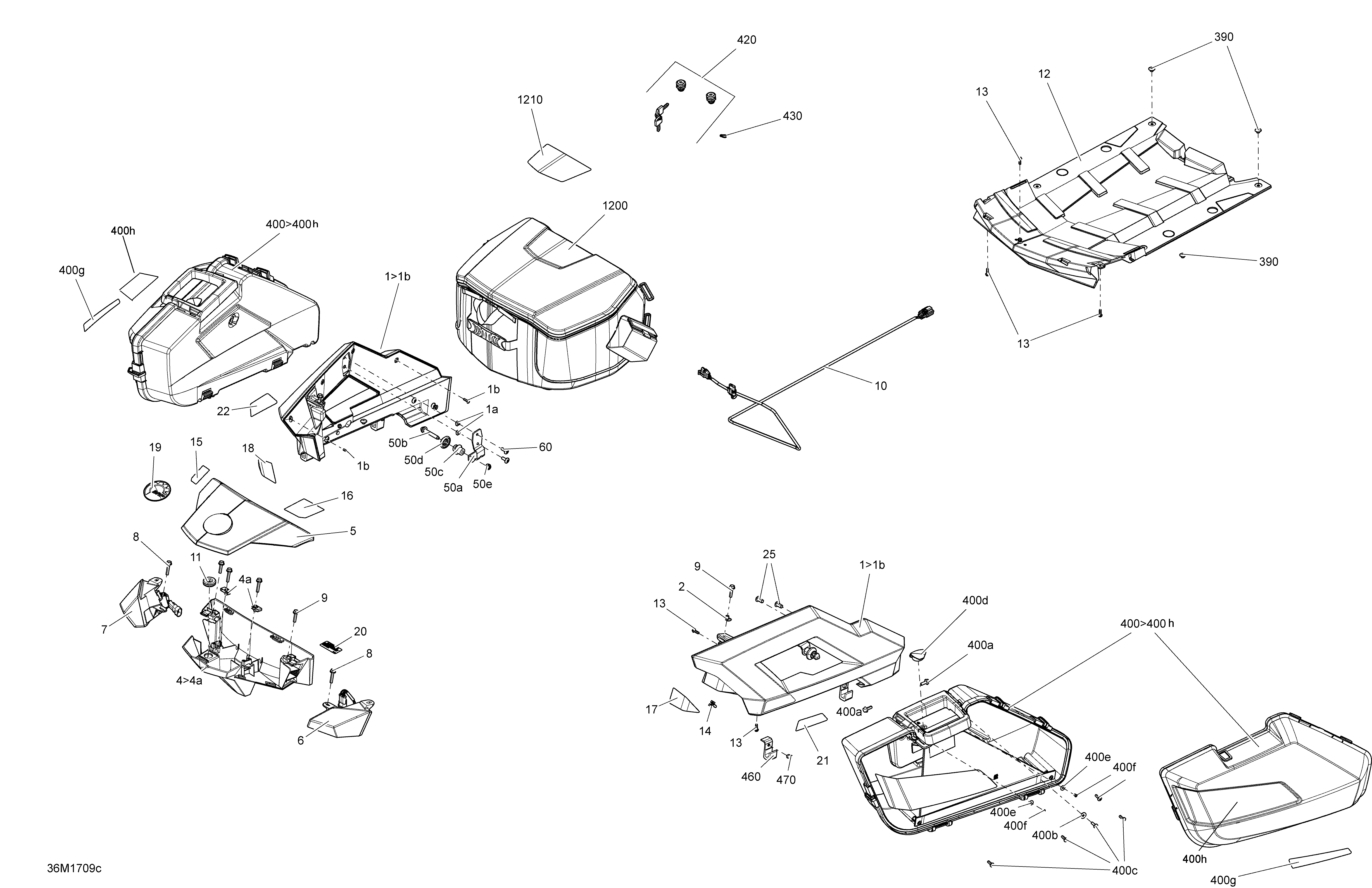

09- Luggage Rack - Package SE для BRP Ski-Doo GRAND TOURING - 4-STROKE - 2017
-
№АртикулНазвание
-
1>1b511000631 RH Arm Ass'y. Includes 1 to 1bRH Arm Ass'y. Includes 1 to 1b
-
1a232862412 Square Nut M6Square Nut M6
-
1b250000294 Torx Screw K40 X 16Torx Screw K40 X 16
-
2293100003 Nut M6Nut M6
-
3>3b511000632 LH Arm Ass'y. Includes 3 to 3bLH Arm Ass'y. Includes 3 to 3b
-
3a232862412 Square Nut M6Square Nut M6
-
3b250000294 Torx Screw K40 X 16Torx Screw K40 X 16
-
4>4a511000530 Rack Ass'y. Includes 4 to 4aRack Ass'y. Includes 4 to 4a
-
4a250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
5511000545 CoverCover
-
6515176849 RH Tail Light Ass'yRH Tail Light Ass'y
-
7515176850 LH Tail Light Ass'yLH Tail Light Ass'y
-
8207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
9207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
10515178022 HarnessHarness
-
11517303756 GrommetGrommet
-
12511000861 Radiator CoverRadiator Cover
-
13241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
14517302785 ClipClip
-
15516006912 Warning DecalWarning Decal
-
16516004603 Warning Decal, SecurityWarning Decal, Security
-
17520000731 Red RH Rear ReflectorRed RH Rear Reflector
-
18520000732 Red LH Rear ReflectorRed LH Rear Reflector
-
19516006888 BRP Logo, 68 mmBRP Logo, 68 mm
-
20516005523 Warning DecalWarning Decal
-
21520000729 Red RH Rear ReflectorRed RH Rear Reflector
-
22520000730 Red LH Rear ReflectorRed LH Rear Reflector
-
25250000751 Torx Screw M8 X 16Torx Screw M8 X 16
-
50a511000580 Saddle Bag Lug SupportSaddle Bag Lug Support
-
50b511000337 Suitcase StudSuitcase Stud
-
50c511000423 Stud NutStud Nut
-
50d511000358 Rubber BumperRubber Bumper
-
50e232581200 Hex. Elastic Nut M8, BrassHex. Elastic Nut M8, Brass
-
60250000721 Torx ScrewTorx Screw
-
390293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
400>400h511001077 RH Suit Case. Includes 400 to 400gRH Suit Case. Includes 400 to 400g
-
400a207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
400b391301600 WasherWasher
-
400c250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
400d511000639 Black Sealing CapBlack Sealing Cap
-
400e391301000 WasherWasher
-
400f293150006 Pop Rivet 1/8''Pop Rivet 1/8''
-
400g520000757 Red RH Rear ReflectorRed RH Rear Reflector
-
400h516007292 RH Suitcase DecalRH Suitcase Decal
-
400>400h511001078 LH Suit Case. Includes 410 to 410gLH Suit Case. Includes 410 to 410g
-
400a207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
400b391301600 WasherWasher
-
400c250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
400d511000639 Black Sealing CapBlack Sealing Cap
-
400e391301000 WasherWasher
-
400f293150006 Pop Rivet 1/8''Pop Rivet 1/8''
-
400g520000756 Red LH Rear ReflectorRed LH Rear Reflector
-
400h516007291 LH Suitcase DecalLH Suitcase Decal
-
420511000599 LockLock
-
430293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
460518325618 Support PlateSupport Plate
-
470293150147 Hemlock RivetHemlock Rivet
-
1200860200174 Rear Travel BagRear Travel Bag
-
1210516007293 DecalDecal
