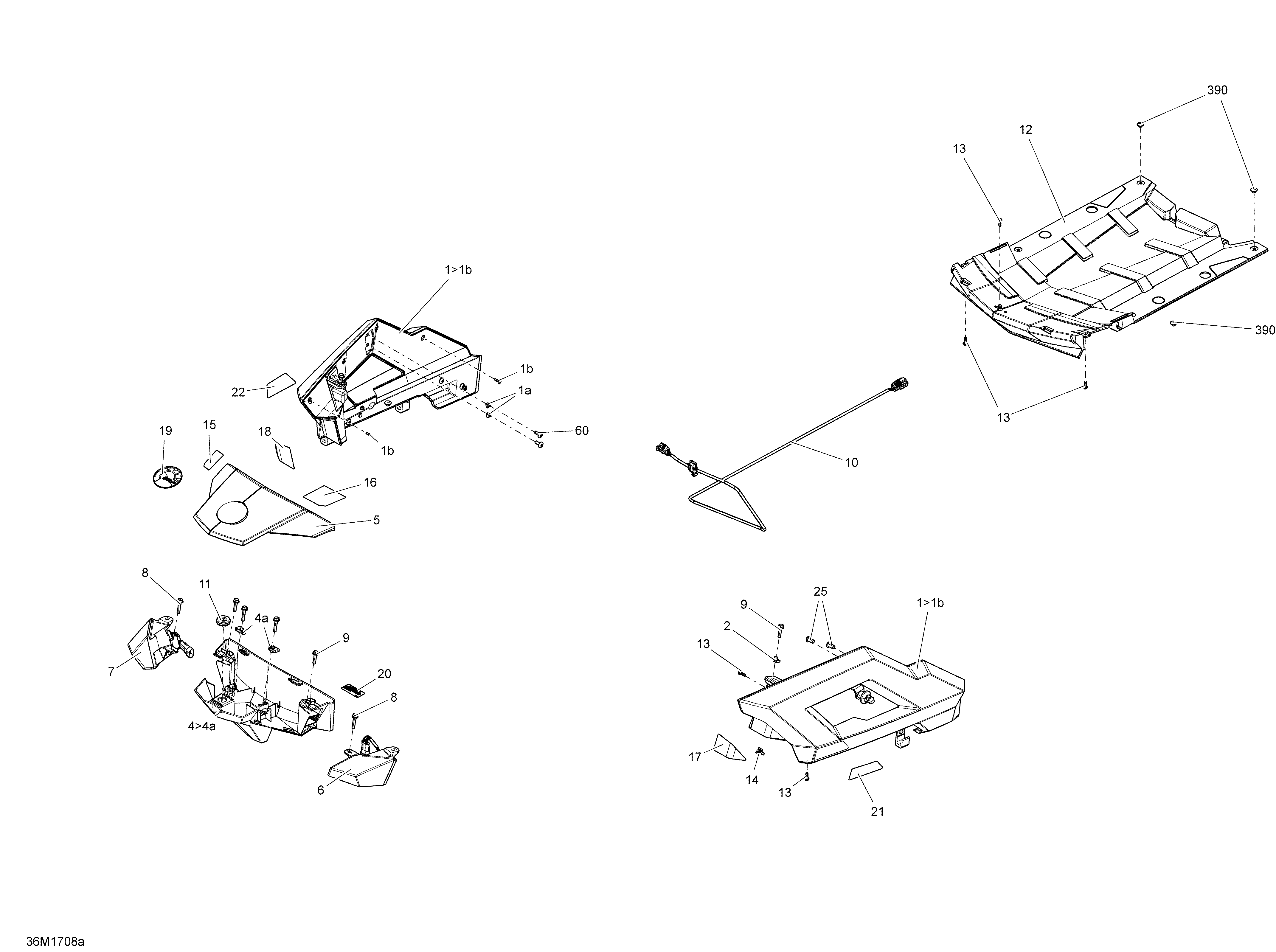

09- Luggage Rack - Package LE для BRP Ski-Doo GRAND TOURING - 4-STROKE - 2017
-
№АртикулНазвание
-
1>1b511000631 RH Arm Ass'y. Includes 1 to 1bRH Arm Ass'y. Includes 1 to 1b
-
1>1b511000632 LH Arm Ass'y. Includes 1 to 1bLH Arm Ass'y. Includes 1 to 1b
-
1a232862412 Square Nut M6Square Nut M6
-
1b250000294 Torx Screw K40 X 16Torx Screw K40 X 16
-
2293100003 Nut M6Nut M6
-
4>4a511000530 Rack Ass'y. Includes 4 to 4aRack Ass'y. Includes 4 to 4a
-
4a250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
5511000545 CoverCover
-
6515176849 RH Tail Light Ass'yRH Tail Light Ass'y
-
7515176850 LH Tail Light Ass'yLH Tail Light Ass'y
-
8207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
9207662554 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
10515178022 HarnessHarness
-
11517303756 GrommetGrommet
-
12511000861 Radiator CoverRadiator Cover
-
13241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
14517302785 ClipClip
-
15516006912 Warning DecalWarning Decal
-
16516004603 Warning Decal, SecurityWarning Decal, Security
-
17520000731 Red RH Rear ReflectorRed RH Rear Reflector
-
18520000732 Red LH Rear ReflectorRed LH Rear Reflector
-
19516006888 BRP Logo, 68 mmBRP Logo, 68 mm
-
20516005523 Warning DecalWarning Decal
-
21520000729 Red RH Rear ReflectorRed RH Rear Reflector
-
22520000730 Red LH Rear ReflectorRed LH Rear Reflector
-
25250000751 Torx Screw M8 X 16Torx Screw M8 X 16
-
60250000721 Torx ScrewTorx Screw
-
390293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
