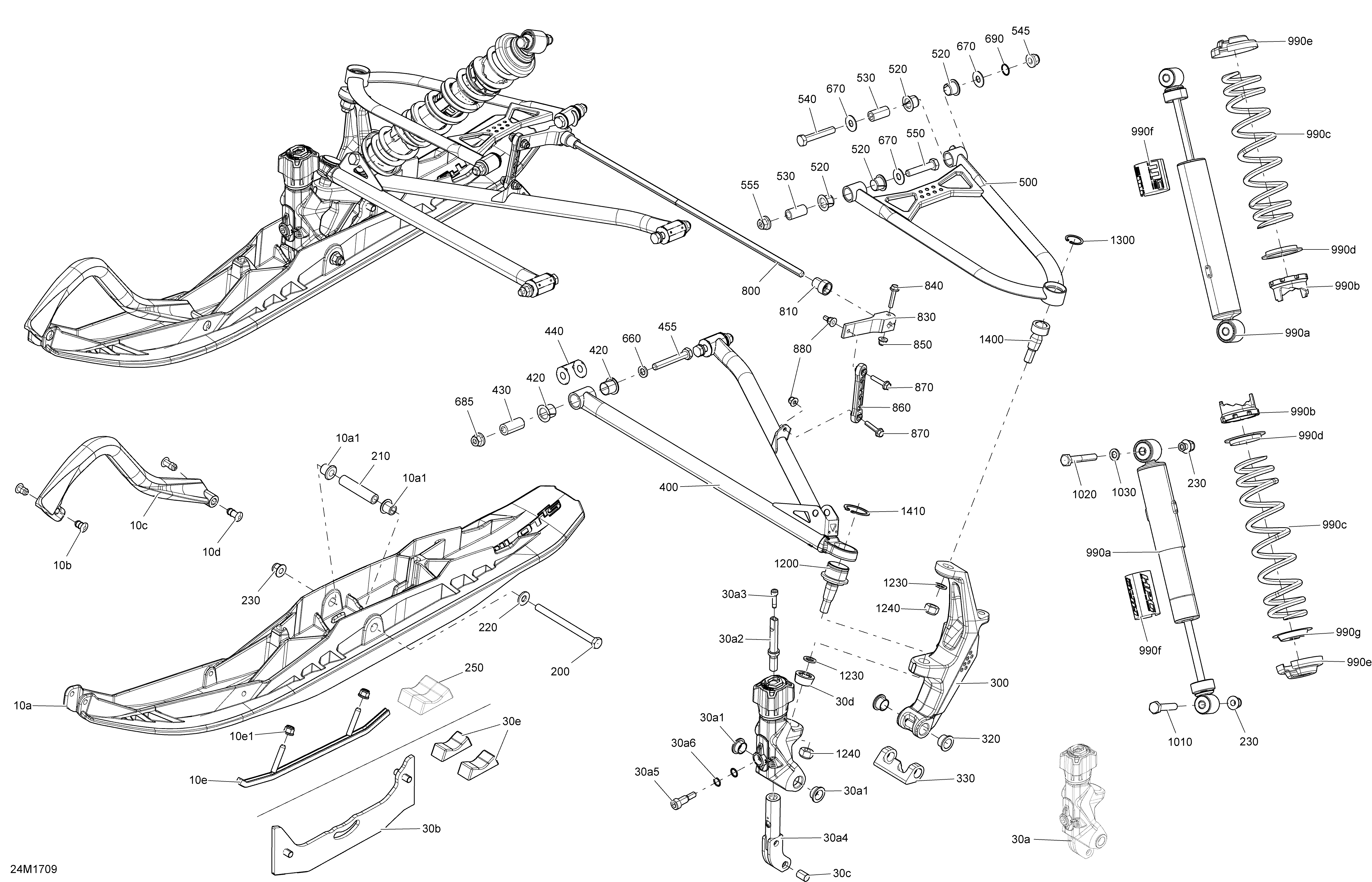

07- Front Suspension And Ski - All Models для BRP Ski-Doo GRAND TOURING - 4-STROKE - 2017
-
№АртикулНазвание
-
10a505072443 Pilot SL Ski Ass'y. Package Sport (ETHA), LE. Includes 10a to 10a1Pilot SL Ski Ass'y. Package Sport (ETHA), LE. Includes 10a to 10a1
-
10a505073227 Black DS 2 Ski. Package Sport (ETHB). Includes 10a to 10a1Black DS 2 Ski. Package Sport (ETHB). Includes 10a to 10a1
-
10a505073796 Deep Black RH Pilot TS Ski. Package SE. Includes 10a to 10a1Deep Black RH Pilot TS Ski. Package SE. Includes 10a to 10a1
-
10a505073786 Deep Black LH Pilot TS Ski. Package SE. Includes 10a to 10a1Deep Black LH Pilot TS Ski. Package SE. Includes 10a to 10a1
-
10a1505071781 Ski BushingSki Bushing
-
10b505071812 RetainerRetainer
-
10c505070963 Black Handle. Except Package Sport, Model EuropeBlack Handle. Except Package Sport, Model Europe
-
10c505072976 Black Handle. Package Sport, Model EuropeBlack Handle. Package Sport, Model Europe
-
10d505072133 RetainerRetainer
-
10e860201043 Round Carbide Runner. Package Sport (ETHA), LE. Includes 10e to 10e1Round Carbide Runner. Package Sport (ETHA), LE. Includes 10e to 10e1
-
10e860201044 Carbide Runner Kit. Package Sport (ETHB). Includes 10e to 10e1Carbide Runner Kit. Package Sport (ETHB). Includes 10e to 10e1
-
10e1233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
30a505073789 Black LH Support. With Adjustable Ski Pilot TS. Includes 30a to 30a6Black LH Support. With Adjustable Ski Pilot TS. Includes 30a to 30a6
-
30a505073792 Black RH Support. With Adjustable Ski Pilot TS. Includes 30a to 30a6Black RH Support. With Adjustable Ski Pilot TS. Includes 30a to 30a6
-
30a1505073773 Bushing. With Adjustable Ski Pilot TSBushing. With Adjustable Ski Pilot TS
-
30a2505073771 Shaft. With Adjustable Ski Pilot TSShaft. With Adjustable Ski Pilot TS
-
30a3250000925 Socket Head Screw M6 X 25, Scotch Grip. With Adjustable Ski Pilot TSSocket Head Screw M6 X 25, Scotch Grip. With Adjustable Ski Pilot TS
-
30a4505073761 Tip. With Adjustable Ski Pilot TSTip. With Adjustable Ski Pilot TS
-
30a5505073767 Screw. With Adjustable Ski Pilot TSScrew. With Adjustable Ski Pilot TS
-
30a6293300013 O-Ring. With Adjustable Ski Pilot TSO-Ring. With Adjustable Ski Pilot TS
-
30b860201178 Carbide Runner Kit. With Adjustable Ski Pilot TSCarbide Runner Kit. With Adjustable Ski Pilot TS
-
30c505073782 Pin. With Adjustable Ski Pilot TSPin. With Adjustable Ski Pilot TS
-
30d505073772 Grommet. With Adjustable Ski Pilot TSGrommet. With Adjustable Ski Pilot TS
-
30e505073788 Ski Stopper. With Adjustable Ski Pilot TSSki Stopper. With Adjustable Ski Pilot TS
-
200250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
210506133300 SpacerSpacer
-
220503192496 WasherWasher
-
230233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
250505072594 Ski Stopper. Without Adjustable Ski Pilot TSSki Stopper. Without Adjustable Ski Pilot TS
-
300505073774 Clear LH Ski Leg. Package SportClear LH Ski Leg. Package Sport
-
300505073807 Black LH Ski Leg. Except Package SportBlack LH Ski Leg. Except Package Sport
-
300505073775 Clear RH Ski Leg. Package SportClear RH Ski Leg. Package Sport
-
300505073808 Black RH Ski Leg. Except Package SportBlack RH Ski Leg. Except Package Sport
-
320505072690 Leg BushingLeg Bushing
-
330505073779 Ski Stopper. Package LESki Stopper. Package LE
-
400505072664 Black RH Lower Arm. Package SportBlack RH Lower Arm. Package Sport
-
400505073426 RH Lower Arm 42''. Except Package SportRH Lower Arm 42''. Except Package Sport
-
400505072665 Black LH Lower Arm. Package SportBlack LH Lower Arm. Package Sport
-
400505073420 LH Lower Arm 42''. Except Package SportLH Lower Arm 42''. Except Package Sport
-
420505072208 BushingBushing
-
430505072209 BushingBushing
-
440505072634 Wear PlateWear Plate
-
455250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
500505073412 LH Upper Arm 42''. Except Package SportLH Upper Arm 42''. Except Package Sport
-
500505073462 Black LH Upper Arm, 42''. Package SportBlack LH Upper Arm, 42''. Package Sport
-
500505073416 RH Upper Arm 42''. Except Package SportRH Upper Arm 42''. Except Package Sport
-
500505073463 Black RH Upper Arm, 42''. Package SportBlack RH Upper Arm, 42''. Package Sport
-
520505072250 BushingBushing
-
530505072143 BushingBushing
-
540250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
545250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
550250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
555250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
660503189564 WasherWasher
-
670505072392 WasherWasher
-
680250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
690505072448 O-RingO-Ring
-
800505072444 Stabilisator. Except Package SportStabilisator. Except Package Sport
-
800505072602 Stabilisator. Package SportStabilisator. Package Sport
-
810505072064 Bushing. Package SportBushing. Package Sport
-
810505072445 Bushing. Except Package SportBushing. Except Package Sport
-
830505072394 Stabilisator Lever. Package SportStabilisator Lever. Package Sport
-
830505072446 Stabilisator Lever. Except Package SportStabilisator Lever. Except Package Sport
-
840207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
850233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
860505072204 Double Ball Joint LinkDouble Ball Joint Link
-
870207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
880233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
990a505073139 Front Shock. Package SE, LE 1200 4-TECFront Shock. Package SE, LE 1200 4-TEC
-
990a505073139 Front Shock. Package SE 900ACEFront Shock. Package SE 900ACE
-
990a505073235 Front Shock. Package LE, Engine 900 ACEFront Shock. Package LE, Engine 900 ACE
-
990a505073180 Front Shock. Package SportFront Shock. Package Sport
-
990b505073625 Adjustment CamAdjustment Cam
-
990c505072993 Deep Black Spring. Package SEDeep Black Spring. Package SE
-
990c505072518 Full Moon Spring. Package LE, Engine 1200 4-TECFull Moon Spring. Package LE, Engine 1200 4-TEC
-
990c505072767 Deep Black Spring. Package LE, Engine 900 ACEDeep Black Spring. Package LE, Engine 900 ACE
-
990c505073521 Full Moon Spring. Package SportFull Moon Spring. Package Sport
-
990d503187500 Spring GuideSpring Guide
-
990e706200881 Spring StopperSpring Stopper
-
990f516005533 Shock Decal, HPG. Except Package SportShock Decal, HPG. Except Package Sport
-
990f516005535 Shock Decal, Mc. Package SportShock Decal, Mc. Package Sport
-
990g706200785 Cap. Except Package SportCap. Except Package Sport
-
1010207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
1020207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
1030503189564 WasherWasher
-
1200505073636 Ball JointBall Joint
-
1230503192491 WasherWasher
-
1240232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
1300293370070 CirclipCirclip
-
1400505072913 Upper Ball JointUpper Ball Joint
-
1410293370035 CirclipCirclip
-
6000503192496 WasherWasher
-
6001233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
6002505072594 Ski StopperSki Stopper
-
6003233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
