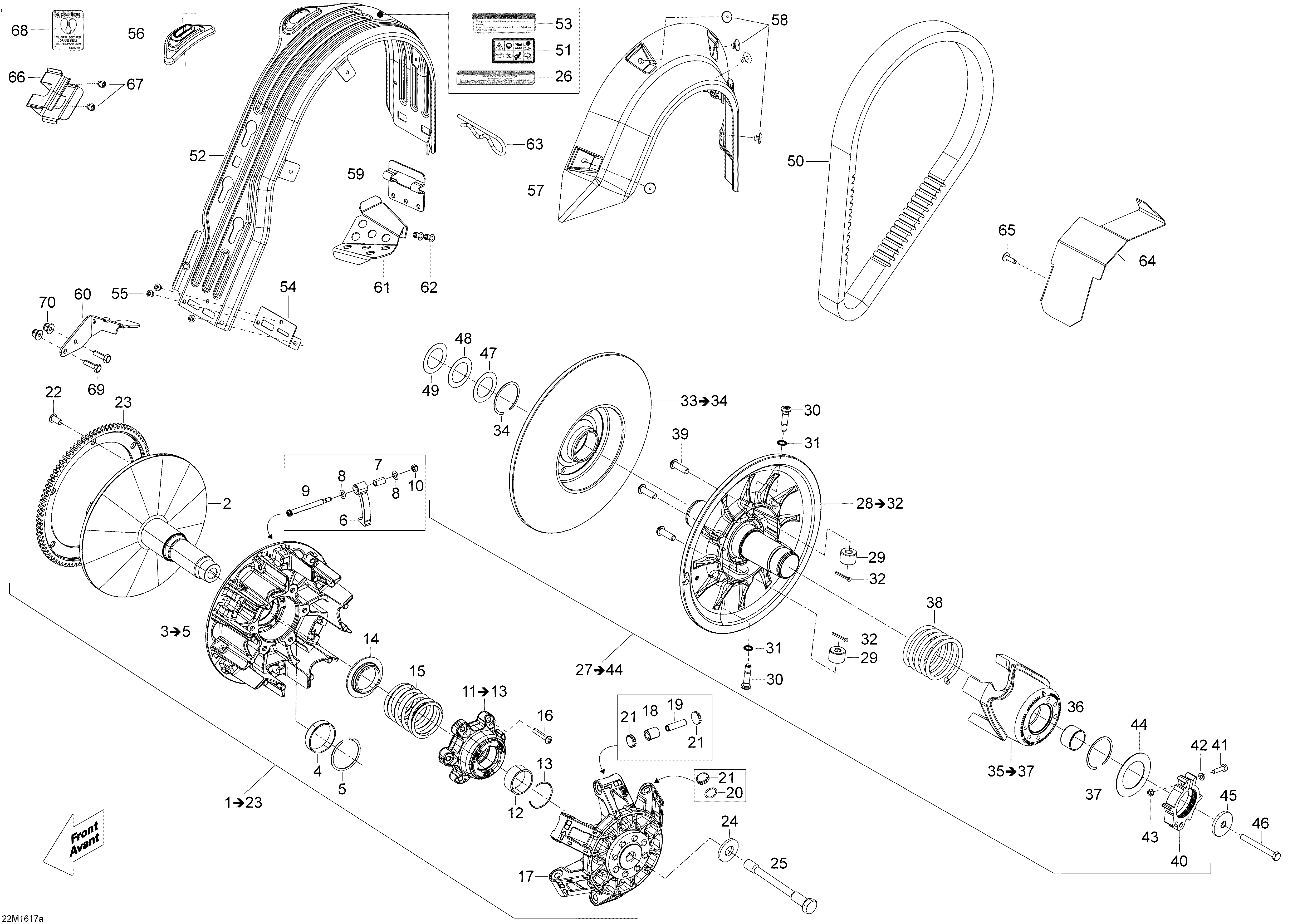

05- Pulley System - 550F для BRP Ski-Doo SKANDIC - 2-STROKE - 2016

  • №
    Артикул
    Название
  • 2
    417223870 Fixed Flange Ass'y
    Fixed Flange Ass'y
  • 3
    417223855 Sliding Flange Ass'y. Includes 3 To 5
    Sliding Flange Ass'y. Includes 3 To 5
  • 4
    417222758 Journal Bearing
    Journal Bearing
  • 5
    293370037 Circlip
    Circlip
  • 6
    417223604 Ramp (700)
    Ramp (700)
  • 8
    417223255 Washer
    Washer
  • 9
    417223694 Axle Ramp
    Axle Ramp
  • 10
    232551414 Elastic Stop Nut M5
    Elastic Stop Nut M5
  • 11
    417223907 Spring Cover Ass'y. Includes 11 To 13
    Spring Cover Ass'y. Includes 11 To 13
  • 13
    293370065 Circlip
    Circlip
  • 14
    417223752 Spring Seat
    Spring Seat
  • 15
    417223748 Spring (Red/Yellow, 355-789N / 80-177lbs)
    Spring (Red/Yellow, 355-789N / 80-177lbs)
  • 16
    250000580 Torx Button Head Screw M6 x 30
    Torx Button Head Screw M6 x 30
  • 17
    417223865 Governor Cup Ass'y
    Governor Cup Ass'y
  • 18
    417223767 Roller
    Roller
  • 19
    417223257 Roller Axle
    Roller Axle
  • 20
    293300185 O-Ring
    O-Ring
  • 21
    417223919 Slider Shoe
    Slider Shoe
  • 22
    250000706 Torx Button Head Screw M8 x 16, Scotch Grip
    Torx Button Head Screw M8 x 16, Scotch Grip
  • 23
    417223476 Gear Ring
    Gear Ring
  • 24
    250200144 Spring Washer
    Spring Washer
  • 25
    417300432 Drive Pulley Bolt
    Drive Pulley Bolt
  • 26
    516005503 Drive Pulley Bolt Decal
    Drive Pulley Bolt Decal
  • 28
    417127466 Fixed Flange Ass'y. Includes 28 To 32
    Fixed Flange Ass'y. Includes 28 To 32
  • 29
    417127189 Roller
    Roller
  • 30
    417127294 Stud
    Stud
  • 31
    250200009 Lock Washer 8 mm
    Lock Washer 8 mm
  • 32
    250400063 Spring Pin M3 x 30
    Spring Pin M3 x 30
  • 33
    417127366 Sliding Flange Ass'y. Includes 33 To 34
    Sliding Flange Ass'y. Includes 33 To 34
  • 34
    293370049 Circlip
    Circlip
  • 35
    417127460 Cam Ass'y (47/44°). Includes 35 To 37
    Cam Ass'y (47/44°). Includes 35 To 37
  • 36
    417127318 Bushing
    Bushing
  • 37
    293370049 Circlip
    Circlip
  • 38
    417127243 Spring (White, 476-705N / 107-158lbs)
    Spring (White, 476-705N / 107-158lbs)
  • 39
    250000757 Torx Screw M8 x 25, Scotch Grip
    Torx Screw M8 x 25, Scotch Grip
  • 40
    415129604 Pulley Adjuster Ass'y
    Pulley Adjuster Ass'y
  • 41
    205052544 Socket Screw M5 x 25
    Socket Screw M5 x 25
  • 42
    234051410 Flat Washer M5
    Flat Washer M5
  • 43
    232551414 Elastic Stop Nut M5
    Elastic Stop Nut M5
  • 44
    417127155 Washer
    Washer
  • 45
    517302322 Strength Washer
    Strength Washer
  • 46
    207287544 Hex. Cap Screw M8 x 75
    Hex. Cap Screw M8 x 75
  • 47
    417300252 Spacer (1.91/2.21mm). (Adjustment Part, Use If Needed)
    Spacer (1.91/2.21mm). (Adjustment Part, Use If Needed)
  • 48
    417300265 Spacer (0.91/1.12mm). (Adjustment Part, Use If Needed)
    Spacer (0.91/1.12mm). (Adjustment Part, Use If Needed)
  • 49
    504112000 Shim. (Adjustment Part, Use If Needed)
    Shim. (Adjustment Part, Use If Needed)
  • 50
    414860700 Drive Belt
    Drive Belt
  • 51
    516003919 Warning Decal. Model-Europe
    Warning Decal. Model-Europe
  • 52
    417300382 Belt Guard
    Belt Guard
  • 53
    516006900 Belt Guard Security Decal
    Belt Guard Security Decal
  • 54
    417300380 Reinforcement
    Reinforcement
  • 55
    390909200 Rivet
    Rivet
  • 56
    417300381 Guide
    Guide
  • 57
    417300356 Side Protector
    Side Protector
  • 58
    293150103 Pop Rivet 3/16
    Pop Rivet 3/16
  • 59
    417300363 Belt Guard Bracket
    Belt Guard Bracket
  • 60
    417300451 Belt Guard Bracket
    Belt Guard Bracket
  • 61
    518325626 Brake Hose Cover
    Brake Hose Cover
  • 62
    293150163 Rivet
    Rivet
  • 63
    114045200 Hair Pin
    Hair Pin
  • 64
    417300468 Air Duct. Model-North America
    Air Duct. Model-North America
  • 65
    250000722 Torx Truss Screw M6 x 20. Model-North America
    Torx Truss Screw M6 x 20. Model-North America
  • 66
    517281905 Drive Belt Bracket
    Drive Belt Bracket
  • 67
    390909100 Rivet
    Rivet
  • 68
    516007493 Belt Decal
    Belt Decal
  • 69
    207162044 Screw M6 x 20
    Screw M6 x 20
  • 70
    233261414 Nut M6
    Nut M6
