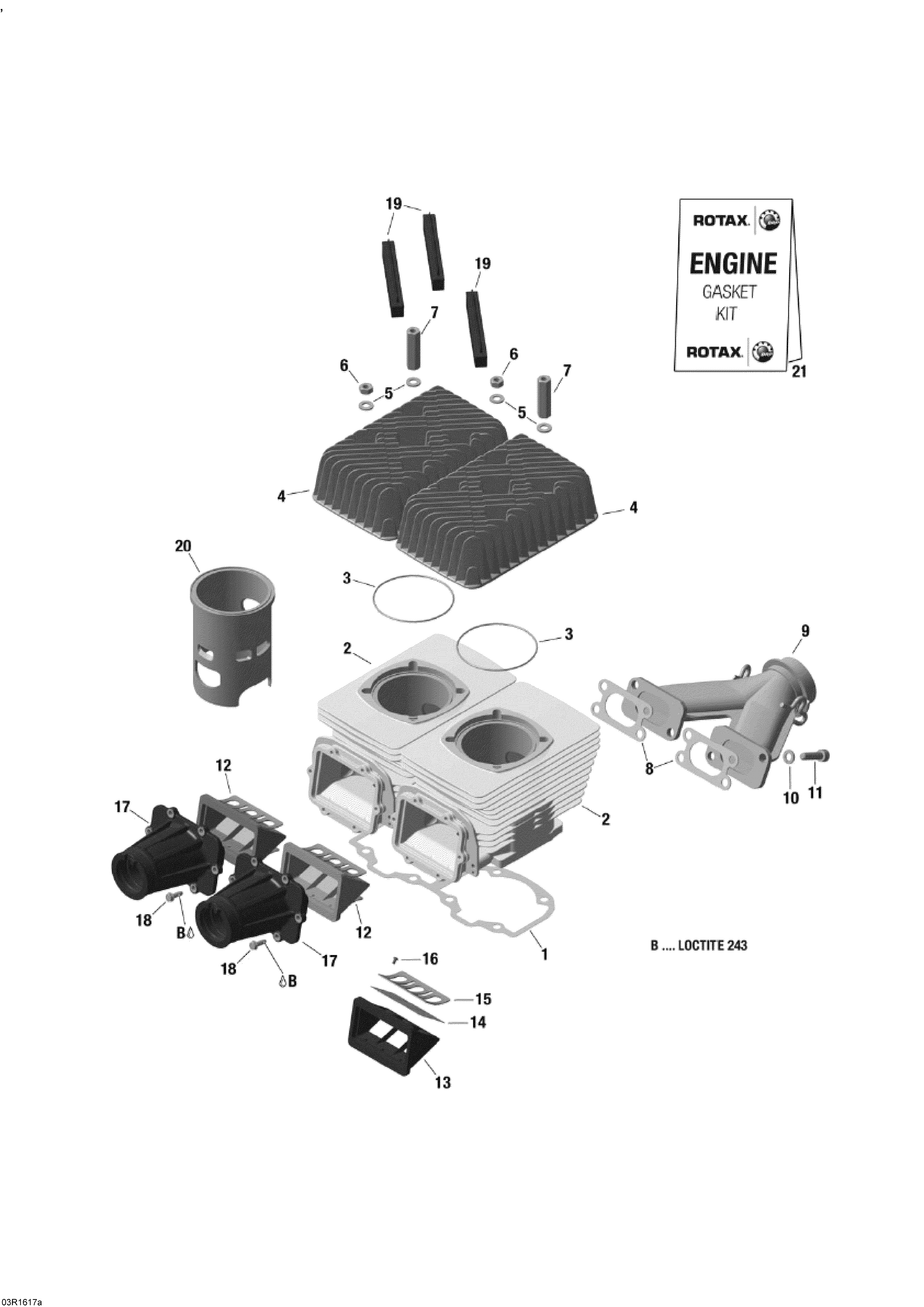

01- Cylinder And Cylinder Head - 550F для BRP Ski-Doo SKANDIC - 2-STROKE - 2016
-
№АртикулНазвание
-
1420950910 Gasket 0.3mmGasket 0.3mm
-
1420950911 Gasket 0.4mmGasket 0.4mm
-
1420950912 Gasket 0.6mmGasket 0.6mm
-
2420623142 Cylinder With SleeveCylinder With Sleeve
-
3293300026 O-RingO-Ring
-
4420923597 CylinderheadCylinderhead
-
5420250311 WasherWasher
-
6232081414 Nut M8. Tightening Torque 21-23 NmNut M8. Tightening Torque 21-23 Nm
-
7420842204 Distance Nut M8 x 47. Tightening Torque 21-23 NmDistance Nut M8 x 47. Tightening Torque 21-23 Nm
-
8420831849 GasketGasket
-
9420673065 Exhaust Manifold Ass'yExhaust Manifold Ass'y
-
10420945752 Lock WasherLock Washer
-
11205083044 Allen Screw M8 x 30. Tightening Torque 21-22 NmAllen Screw M8 x 30. Tightening Torque 21-22 Nm
-
12420924519 Reed Valve Ass'yReed Valve Ass'y
-
14420924532 Reed PetalReed Petal
-
15420924539 Reed Petal StopReed Petal Stop
-
16420941215 Oval Head Screw M3 x 5. Tightening Torque 1,2-1,5 NmOval Head Screw M3 x 5. Tightening Torque 1,2-1,5 Nm
-
17420667600 Carburetor SocketCarburetor Socket
-
18420941925 Taptite Screw M5 x 16. Tightening Torque 5-6 NmTaptite Screw M5 x 16. Tightening Torque 5-6 Nm
-
19420860091 Noise DamperNoise Damper
-
21420889911 Engine Gasket SetEngine Gasket Set
