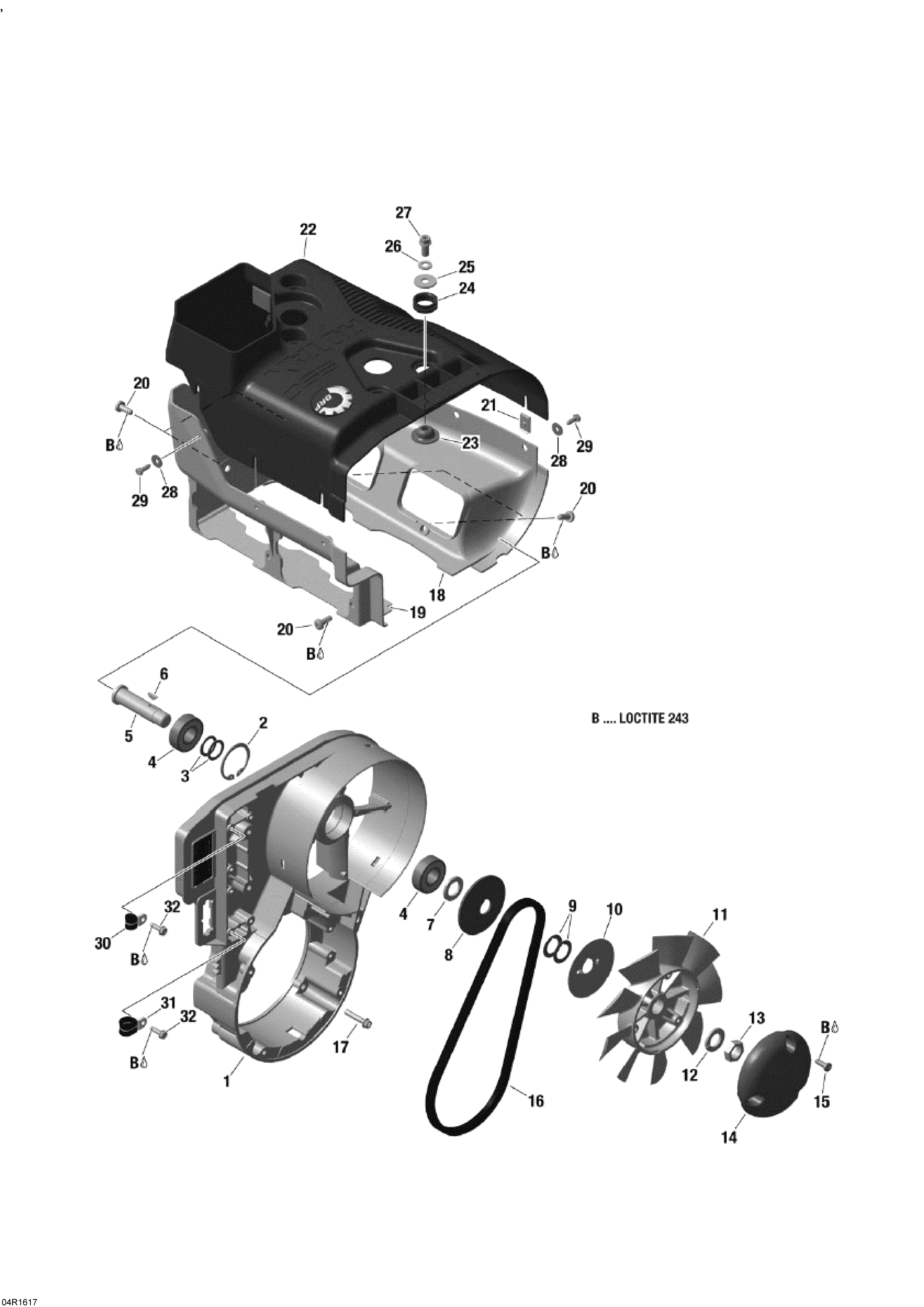

01- Fan Housing - 550F для BRP Ski-Doo SKANDIC - 2-STROKE - 2016
-
№АртикулНазвание
-
1420912230 Fan HousingFan Housing
-
2420945880 Retaining RingRetaining Ring
-
3420244585 ShimShim
-
4420832161 Ball BearingBall Bearing
-
5420937941 Fan ShaftFan Shaft
-
6420246015 Woodruff KeyWoodruff Key
-
7420827650 Distance SleeveDistance Sleeve
-
8420980496 Belt DiskBelt Disk
-
9420827080 Shim 0.5mmShim 0.5mm
-
9420827082 Shim 0.2mmShim 0.2mm
-
10420980523 Protection WasherProtection Washer
-
11420866294 FanFan
-
12420945756 Lock WasherLock Washer
-
13420942289 Nut M16. Tightening Torque 45-50 NmNut M16. Tightening Torque 45-50 Nm
-
14420975900 Fan CoverFan Cover
-
15420841971 Screw 5.5 x 16. Tightening Torque 4-5 NmScrew 5.5 x 16. Tightening Torque 4-5 Nm
-
16420980514 V-BeltV-Belt
-
17420440647 Torx Screw M6 x 30. Tightening Torque 9-11 NmTorx Screw M6 x 30. Tightening Torque 9-11 Nm
-
18420811392 Lower Cowl (Exhaust)Lower Cowl (Exhaust)
-
19420812605 Lower Cowl (Intake)Lower Cowl (Intake)
-
20420640324 Taptite Screw M6 x 16. Tightening Torque 7-8 NmTaptite Screw M6 x 16. Tightening Torque 7-8 Nm
-
21420842390 Spring NutSpring Nut
-
22420910837 Upper Cowl Ass'yUpper Cowl Ass'y
-
23420827817 Cup WasherCup Washer
-
24420460210 Rubber BushingRubber Bushing
-
25420227935 WasherWasher
-
26420945752 Lock WasherLock Washer
-
27420440852 Screw M8 x 16. Tightening Torque 13-15 NmScrew M8 x 16. Tightening Torque 13-15 Nm
-
28420926185 WasherWasher
-
29417300006 Tapping Screw 4.8 x 16. Tightening Torque 2-3 NmTapping Screw 4.8 x 16. Tightening Torque 2-3 Nm
-
30420851110 Cable ClampCable Clamp
-
31420851250 Cable ClampCable Clamp
-
32420941925 Taptite Screw M5 x 16. Tightening Torque 5-6 NmTaptite Screw M5 x 16. Tightening Torque 5-6 Nm
