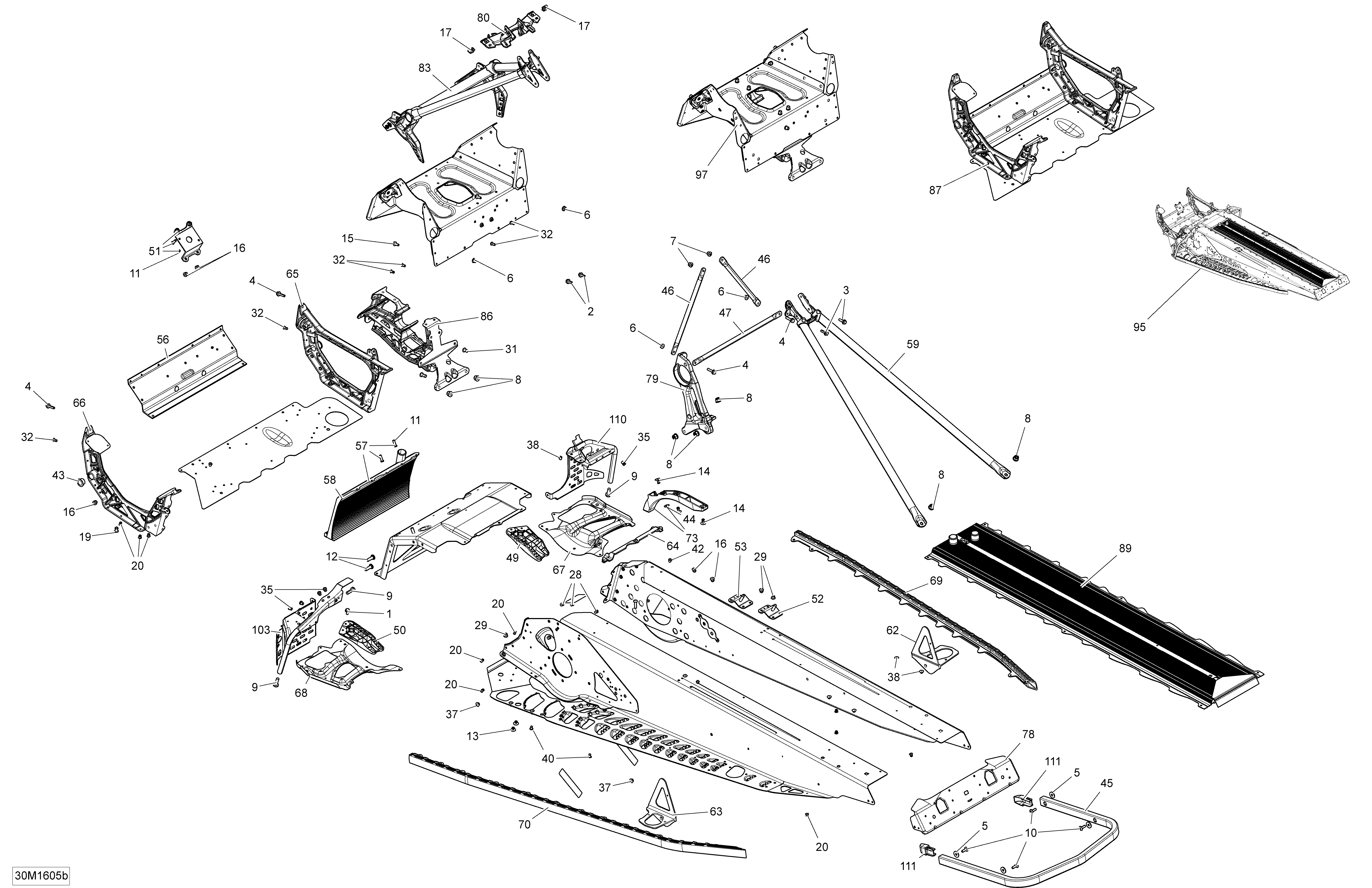

09- Frame - Package TNT для BRP Ski-Doo MXZ 800R E-TEC - 2016
-
№АртикулНазвание
-
1207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
2207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
4207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
4207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
5224061201 Flat WasherFlat Washer
-
5224061201 Flat WasherFlat Washer
-
6233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
7233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
8233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
9250000752 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
10250000779 Torx Screw M6 X 18, Scotch GripTorx Screw M6 X 18, Scotch Grip
-
10250000779 Torx Screw M6 X 18, Scotch GripTorx Screw M6 X 18, Scotch Grip
-
11250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
11250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
12250300038 Clinch StudClinch Stud
-
12250300038 Clinch StudClinch Stud
-
13293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
14293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
15210261650 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
16293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
16293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
16293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
16293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
17250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
19293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
19293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
20293150144 Stavex RivetStavex Rivet
-
20293150144 Stavex RivetStavex Rivet
-
20293150144 Stavex RivetStavex Rivet
-
20293150144 Stavex RivetStavex Rivet
-
20293150144 Stavex RivetStavex Rivet
-
28293150146 Henrob RivetHenrob Rivet
-
29293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
29293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
29293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
31293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
32293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
35293450268 InsertInsert
-
35293450268 InsertInsert
-
37293730053 Black Dart 5 mmBlack Dart 5 mm
-
37293730047 Black Dart 8 mmBlack Dart 8 mm
-
37293730060 Black Dart 10 mmBlack Dart 10 mm
-
37293730053 Black Dart 5 mmBlack Dart 5 mm
-
38293730042 Full Moon Dart 5 mmFull Moon Dart 5 mm
-
40390909100 Avex RivetAvex Rivet
-
40390909100 Avex RivetAvex Rivet
-
42390909200 Avex RivetAvex Rivet
-
42390909200 Avex RivetAvex Rivet
-
43505073317 Leg CushionLeg Cushion
-
43505073317 Leg CushionLeg Cushion
-
44517124300 WasherWasher
-
45518325481 Black Rear BumperBlack Rear Bumper
-
45518326414 Black Rear Bumper. Europe ModelBlack Rear Bumper. Europe Model
-
46518325114 Upper Column SupportUpper Column Support
-
47518325115 Center Column SupportCenter Column Support
-
49518325782 RH DeflectorRH Deflector
-
50518325783 LH DeflectorLH Deflector
-
51518325943 MAG Engine SupportMAG Engine Support
-
52518325973 RH Rear BaseRH Rear Base
-
53518325974 LH Rear BaseLH Rear Base
-
56518326198 Front MemberFront Member
-
56518326198 Front MemberFront Member
-
57518326485 Front RadiatorFront Radiator
-
58518326486 Front RadiatorFront Radiator
-
59518326559 Rear MemberRear Member
-
62518326654 RH Slide Suspension BracketRH Slide Suspension Bracket
-
63518326655 LH Slide Suspension BracketLH Slide Suspension Bracket
-
64518326656 SealSeal
-
65518326795 RH MemberRH Member
-
65518326795 RH MemberRH Member
-
66518326796 LH MemberLH Member
-
66518326796 LH MemberLH Member
-
67518326937 RH ReinforcementRH Reinforcement
-
68518326938 LH ReinforcementLH Reinforcement
-
69518326942 RH RollerRH Roller
-
70518326943 LH RollerLH Roller
-
73518326973 Front ProtectorFront Protector
-
78518327105 Rear CapRear Cap
-
79518327133 Driven Pulley SupportDriven Pulley Support
-
79518327460 Pulley SupportPulley Support
-
80518327145 Sub A SupportSub A Support
-
83518327565 Front MemberFront Member
-
86518327487 Front Suspension SupportFront Suspension Support
-
87518327567 Front E ModuleFront E Module
-
87518327567 Front E ModuleFront E Module
-
89518327580 Rear Radiator 120''Rear Radiator 120''
-
95415129915 Black Frame Ass'y 120''Black Frame Ass'y 120''
-
97518328320 Cross Member S ModuleCross Member S Module
-
103518328528 LH StirupLH Stirup
-
110518328940 RH StirupRH Stirup
-
111520000840 Black CapBlack Cap
-
112520000965 Black RH Cap. Europe ModelBlack RH Cap. Europe Model
-
112520000964 Black LH Cap. Europe ModelBlack LH Cap. Europe Model
