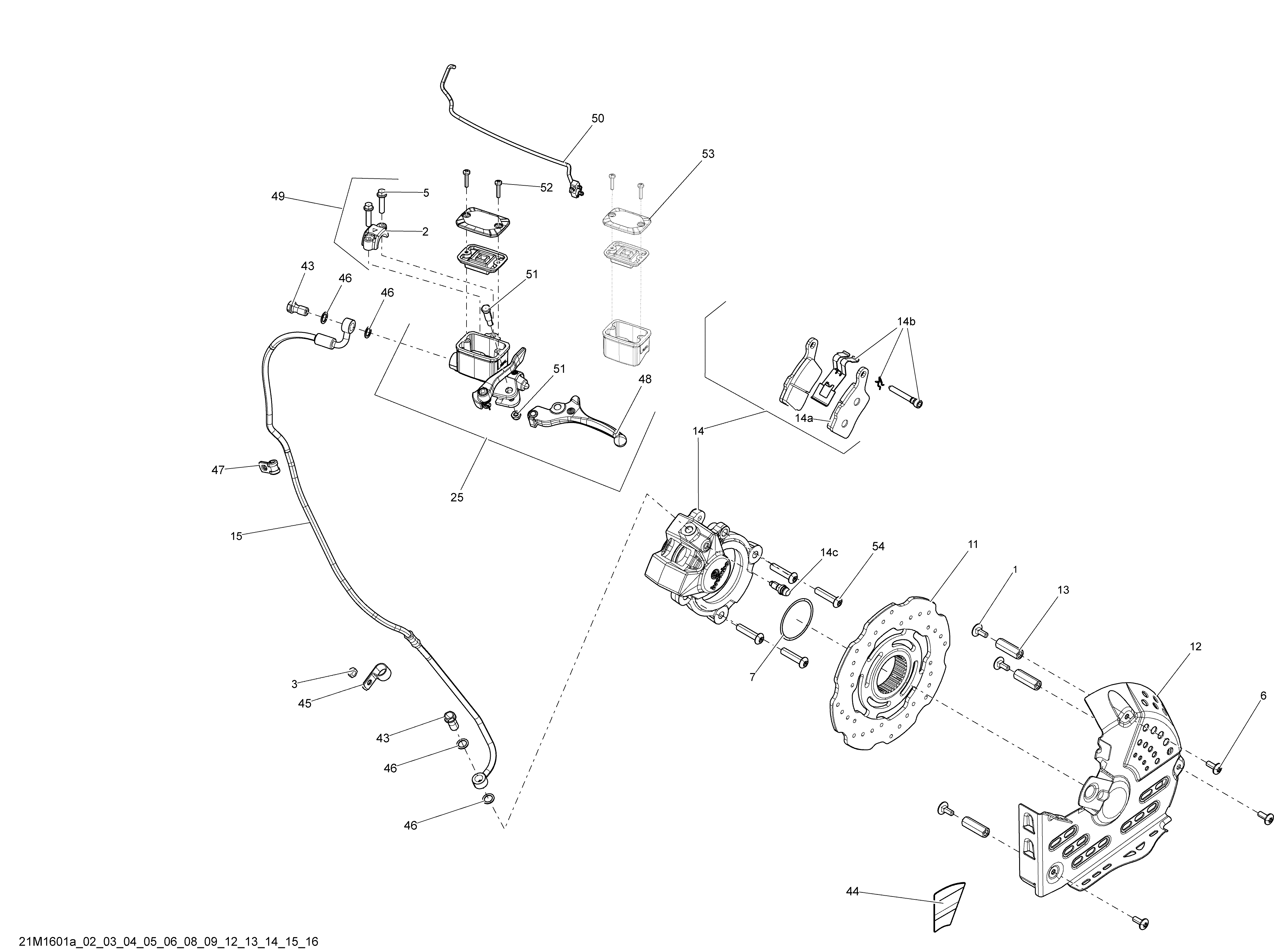

06- Brakes - All Models для BRP Ski-Doo MXZ 800R E-TEC - 2016

  • №
    Артикул
    Название
  • 1
    207761644 Carriage Bolt M6 X 16
    Carriage Bolt M6 X 16
  • 2
    719000049 Clamps Kit
    Clamps Kit
  • 3
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 5
    250000447 Hex Flanged Screw M6 X 25
    Hex Flanged Screw M6 X 25
  • 6
    250000717 Torx Head Screw M6 X 16. Except Package-Sport
    Torx Head Screw M6 X 16. Except Package-Sport
  • 6
    250000365 Torx Screw M6 X 16. Package-Sport
    Torx Screw M6 X 16. Package-Sport
  • 7
    293300134 O-Ring
    O-Ring
  • 11
    507032487 Disk
    Disk
  • 12
    507032492 Black Disk Protector. Except Package-Sport
    Black Disk Protector. Except Package-Sport
  • 12
    507032446 Aluminum Disk Protector. Package-Sport
    Aluminum Disk Protector. Package-Sport
  • 13
    507032497 Threaded Tube
    Threaded Tube
  • 14
    507032498 Brake Caliper Ass'y. Package-Sport, TNT, Blizzard, Includes 14 To 14c
    Brake Caliper Ass'y. Package-Sport, TNT, Blizzard, Includes 14 To 14c
  • 14
    507032500 Brake Caliper Ass'y. Package-X, X-RS, Includes 14 To 14c
    Brake Caliper Ass'y. Package-X, X-RS, Includes 14 To 14c
  • 14a
    507032473 Brake Pads Kit
    Brake Pads Kit
  • 14b
    507032474 Pin, Clip & Spring Kit
    Pin, Clip & Spring Kit
  • 14c
    507032475 Bleeder
    Bleeder
  • 15
    507032540 Hose
    Hose
  • 25
    507032584 Master Cylinder Ass'y. Package-Sport
    Master Cylinder Ass'y. Package-Sport
  • 25
    507032585 Master Cylinder Ass'y. Except Package-Sport
    Master Cylinder Ass'y. Except Package-Sport
  • 43
    507032551 Banjo Bolt
    Banjo Bolt
  • 44
    516005525 Warning Decal
    Warning Decal
  • 45
    518321570 Open Clamp
    Open Clamp
  • 46
    705600310 Copper Washer
    Copper Washer
  • 47
    705600459 Clamp
    Clamp
  • 48
    507032476 Lever
    Lever
  • 49
    507032477 Clamp And Screw Kit
    Clamp And Screw Kit
  • 50
    507032593 Microswitch. Package-Sport
    Microswitch. Package-Sport
  • 50
    507032592 Microswitch. Except Package-Sport
    Microswitch. Except Package-Sport
  • 51
    415030000 Pin Ass'y
    Pin Ass'y
  • 52
    415129356 Screw M4 X 20
    Screw M4 X 20
  • 53
    507032478 Master Cylinder Reservoir Ass'y
    Master Cylinder Reservoir Ass'y
  • 54
    250000764 Hex. Butoon Head Screw M8 X 35
    Hex. Butoon Head Screw M8 X 35
