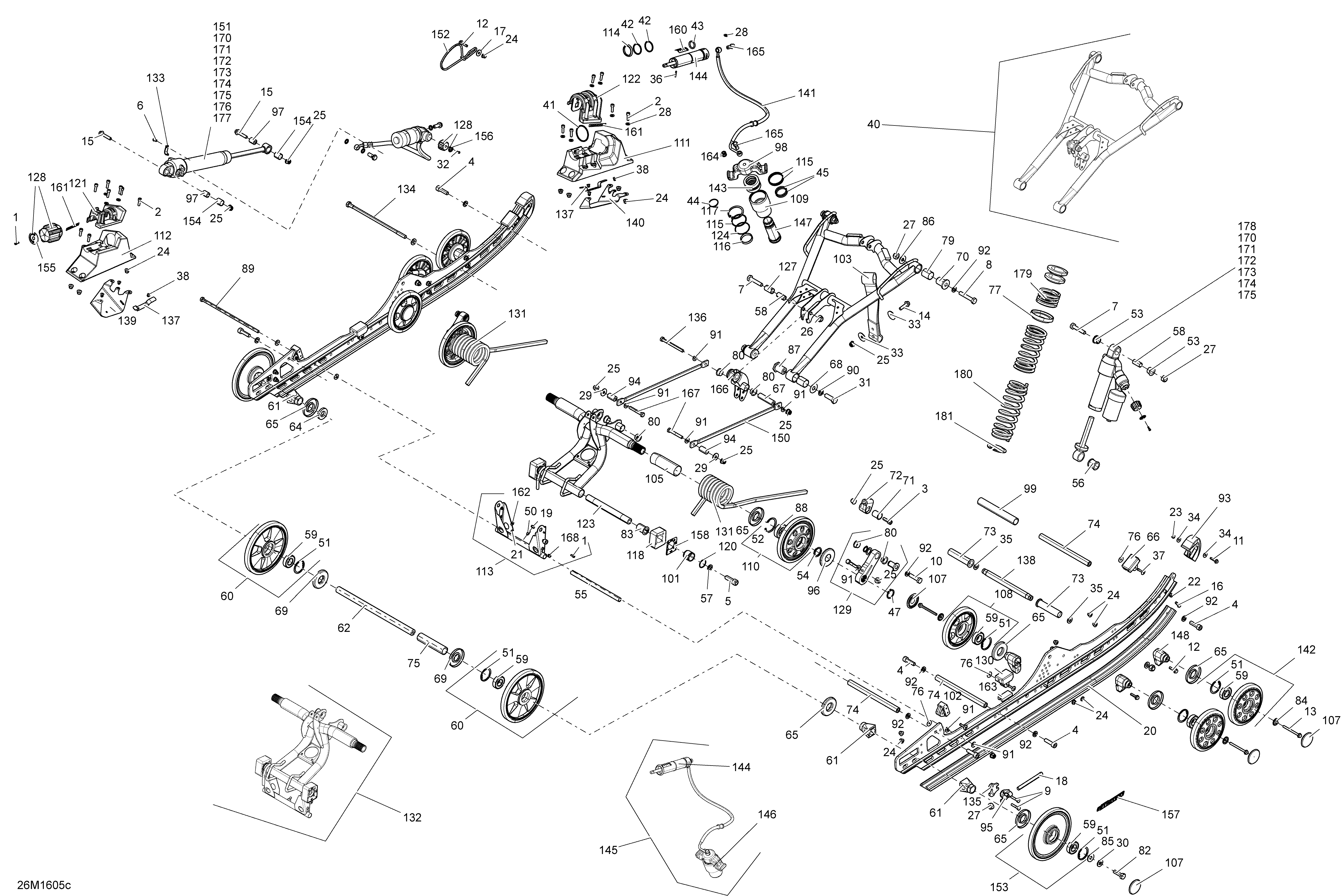

08- Rear Suspension - Package Blizzard_X-RS для BRP Ski-Doo MXZ 800R E-TEC - 2016

  • №
    Артикул
    Название
  • 1
    205541660 Socket Screw M4 x 16 (Scotch Grip)
    Socket Screw M4 x 16 (Scotch Grip)
  • 1
    205041060 Socket Head Screw M4X 10
    Socket Head Screw M4X 10
  • 2
    205062060 Socket Head Screw M6 X 20
    Socket Head Screw M6 X 20
  • 3
    205082554 Socket Screw M8 X 25
    Socket Screw M8 X 25
  • 4
    205503554 Socket Head Screw M10 X 35
    Socket Head Screw M10 X 35
  • 5
    205523554 Socket Head Screw M12 X 35
    Socket Head Screw M12 X 35
  • 6
    205961060 Socket Head Screw M6 X 10, Scotch Grip
    Socket Head Screw M6 X 10, Scotch Grip
  • 7
    207005044 Hex. Screw M10 X 50
    Hex. Screw M10 X 50
  • 8
    207006056 Hex. Cap Screw M10 X 60
    Hex. Cap Screw M10 X 60
  • 9
    207063054 Hex. Cap Screw M6 X 30
    Hex. Cap Screw M6 X 30
  • 10
    207204056 Cap Screw Hex. M10 X 40
    Cap Screw Hex. M10 X 40
  • 11
    207652544 Hex. Flanged Screw M5 X 25
    Hex. Flanged Screw M5 X 25
  • 12
    207662556 Hex. Flange Screw M6 X 25. Model without QAS
    Hex. Flange Screw M6 X 25. Model without QAS
  • 12
    207662556 Hex. Flange Screw M6 X 25. Model with QAS
    Hex. Flange Screw M6 X 25. Model with QAS
  • 13
    207667056 Hex. Flange Screw M6 X 70
    Hex. Flange Screw M6 X 70
  • 14
    207683044 Hex. Flanged Screw M8 X 30
    Hex. Flanged Screw M8 X 30
  • 15
    207684044 Hex. Flanged Screw M8 X 40
    Hex. Flanged Screw M8 X 40
  • 16
    208562531 Phillips Screw M6 X 25
    Phillips Screw M6 X 25
  • 17
    224061201 Flat Washer
    Flat Washer
  • 18
    230100054 Hex Screw M10 x 100
    Hex Screw M10 x 100
  • 19
    232061404 Hexagonal Nut M6
    Hexagonal Nut M6
  • 20
    503193962 Slider 128''
    Slider 128''
  • 21
    232551414 Elastic Stop Nut M5
    Elastic Stop Nut M5
  • 22
    232561434 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 23
    233251434 Flanged Elastic Nut M5
    Flanged Elastic Nut M5
  • 24
    233261466 Hex. Flanged Elastic Nut M6. Model without QAS
    Hex. Flanged Elastic Nut M6. Model without QAS
  • 24
    233261466 Hex. Flanged Elastic Nut M6. Model with QAS
    Hex. Flanged Elastic Nut M6. Model with QAS
  • 25
    233281466 Elastic Flang Nut M8
    Elastic Flang Nut M8
  • 26
    233601416 Elastic Locking Nut M10
    Elastic Locking Nut M10
  • 27
    233201466 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 27
    233601466 Elastic Locking Nut M10
    Elastic Locking Nut M10
  • 28
    234061600 Flat Washer M6, Stainless
    Flat Washer M6, Stainless
  • 29
    234082410 Flat Washer 8 mm
    Flat Washer 8 mm
  • 30
    234201474 Conical Spring Washer 10 mm
    Conical Spring Washer 10 mm
  • 31
    250000537 Hex. Cap Screw M12 X 35
    Hex. Cap Screw M12 X 35
  • 32
    250000644 Allen Screw M3 X 10
    Allen Screw M3 X 10
  • 33
    250200128 Flat Washer 8 mm
    Flat Washer 8 mm
  • 34
    250200140 Washer
    Washer
  • 35
    250200143 Flat Washer
    Flat Washer
  • 36
    250400014 Spring Pin
    Spring Pin
  • 37
    293150013 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 38
    293150144 Stavex Rivet
    Stavex Rivet
  • 40
    503194078 Front Arm
    Front Arm
  • 41
    293250085 O-Ring
    O-Ring
  • 42
    293250269 O-Ring
    O-Ring
  • 43
    293300036 O-Ring
    O-Ring
  • 44
    293300039 O-Ring
    O-Ring
  • 45
    293300068 O-Ring
    O-Ring
  • 46
    293370013 E-Circlip
    E-Circlip
  • 47
    293370080 Retaining Ring
    Retaining Ring
  • 50
    408200700 Grease Fitting
    Grease Fitting
  • 51
    415129371 Retaining Ring. Package XRS
    Retaining Ring. Package XRS
  • 51
    415129371 Retaining Ring. Package Blizzard
    Retaining Ring. Package Blizzard
  • 52
    415129780 Retaining Ring
    Retaining Ring
  • 53
    503189117 Cushion
    Cushion
  • 54
    503189146 Axle Spring
    Axle Spring
  • 55
    503189156 Pivot Arm Axle
    Pivot Arm Axle
  • 56
    503189271 Cushion
    Cushion
  • 57
    503189276 Washer
    Washer
  • 58
    503189282 Bushing
    Bushing
  • 59
    503190396 Ball Bearing
    Ball Bearing
  • 60
    503192766 Deep Black Wheel Ass'y, 180 mm
    Deep Black Wheel Ass'y, 180 mm
  • 60
    503194050 Deep Black Wheel Ass'y, 180 mm. Package Blizzard
    Deep Black Wheel Ass'y, 180 mm. Package Blizzard
  • 60
    503194050 Deep Black Wheel Ass'y, 180 mm. Package XRS
    Deep Black Wheel Ass'y, 180 mm. Package XRS
  • 61
    503190428 Rear Wheel Spacer. Package Blizzard
    Rear Wheel Spacer. Package Blizzard
  • 61
    503190428 Rear Wheel Spacer. Package XRS
    Rear Wheel Spacer. Package XRS
  • 62
    503190429 Rear Axle
    Rear Axle
  • 64
    503190432 Washer. Package Blizzard
    Washer. Package Blizzard
  • 65
    503190434 Labyrinth Seal. Package Blizzard
    Labyrinth Seal. Package Blizzard
  • 65
    503190434 Labyrinth Seal. Package XRS
    Labyrinth Seal. Package XRS
  • 66
    503190576 Rubber Stopper
    Rubber Stopper
  • 67
    503190643 Axle Bar (Long)
    Axle Bar (Long)
  • 68
    503190656 Washer
    Washer
  • 69
    503190682 Labyrinth Seal. Package Blizzard
    Labyrinth Seal. Package Blizzard
  • 69
    503190682 Labyrinth Seal. Package XRS
    Labyrinth Seal. Package XRS
  • 70
    503190698 Axle
    Axle
  • 71
    503190754 Retainer Cushion
    Retainer Cushion
  • 72
    503191183 Spring Support
    Spring Support
  • 73
    503191259 Center Bushing
    Center Bushing
  • 74
    503191260 Axle Strap
    Axle Strap
  • 75
    503190430 Spacer. Package Blizzard
    Spacer. Package Blizzard
  • 75
    503191263 Rear Spacer. Package XRS
    Rear Spacer. Package XRS
  • 76
    503191273 Washer
    Washer
  • 77
    503191281 Spring Spacer
    Spring Spacer
  • 77
    503192743 Spring Spacer. Package XRS
    Spring Spacer. Package XRS
  • 79
    503191554 Bushing
    Bushing
  • 80
    503191555 Swivel Bushing
    Swivel Bushing
  • 81
    503191566 RH Cam Adjuster. Model without QAS
    RH Cam Adjuster. Model without QAS
  • 81
    503191565 LH Cam Adjuster. Model without QAS
    LH Cam Adjuster. Model without QAS
  • 82
    250000817 Hex Screw With Nilon Patch, M10 X 35
    Hex Screw With Nilon Patch, M10 X 35
  • 83
    503191640 Cushion
    Cushion
  • 84
    503191820 Wheel Cup M6
    Wheel Cup M6
  • 85
    503191910 Washer
    Washer
  • 86
    503191926 Washer
    Washer
  • 87
    503191966 Lower Axle
    Lower Axle
  • 88
    503191982 Ball Bearing
    Ball Bearing
  • 89
    503192440 Bolt M8 X 248mm
    Bolt M8 X 248mm
  • 90
    503192491 Washer
    Washer
  • 91
    503192494 Washer
    Washer
  • 92
    503192496 Washer
    Washer
  • 93
    503192530 Slide Protector
    Slide Protector
  • 94
    503192555 Axle Bar
    Axle Bar
  • 95
    503192583 Tensioner
    Tensioner
  • 96
    503192592 Labyrinth Ring
    Labyrinth Ring
  • 97
    503192606 Rear Shock Axle
    Rear Shock Axle
  • 98
    503192633 Spring Bracket. Model with QAS
    Spring Bracket. Model with QAS
  • 99
    503192678 Spacer
    Spacer
  • 101
    503192749 Guide Block
    Guide Block
  • 102
    503192750 Rubber Stopper
    Rubber Stopper
  • 103
    503192759 Stopper Strap
    Stopper Strap
  • 105
    503192767 Bushing
    Bushing
  • 107
    503192771 Black Wheel Cap
    Black Wheel Cap
  • 108
    503192794 Deep Black Wheel Ass'y, 141 mm
    Deep Black Wheel Ass'y, 141 mm
  • 109
    503192795 Cylinder. Model with QAS
    Cylinder. Model with QAS
  • 110
    503192808 Black Wheel Ass'y, 155 mm
    Black Wheel Ass'y, 155 mm
  • 111
    503192810 RH Support. Model with QAS
    RH Support. Model with QAS
  • 112
    503192811 LH Support. Model with QAS
    LH Support. Model with QAS
  • 113
    503192823 Pivot Arm Ass'y
    Pivot Arm Ass'y
  • 114
    503192825 Seal. Model with QAS
    Seal. Model with QAS
  • 115
    503192832 O-Ring. Model with QAS
    O-Ring. Model with QAS
  • 116
    503192833 Wear Ring. Model with QAS
    Wear Ring. Model with QAS
  • 117
    503192834 Retaining Ring. Model with QAS
    Retaining Ring. Model with QAS
  • 118
    503192919 RH Cam Block
    RH Cam Block
  • 118
    503192918 LH Cam Block
    LH Cam Block
  • 120
    503192921 O-Ring
    O-Ring
  • 121
    503192956 LH Half Housing. Model with QAS
    LH Half Housing. Model with QAS
  • 122
    503192957 RH Half-Housing. Model with QAS
    RH Half-Housing. Model with QAS
  • 123
    503192981 Lower Shaft
    Lower Shaft
  • 124
    503193014 O-Ring. Model with QAS
    O-Ring. Model with QAS
  • 126
    503193033 Shock Adjuster Knob. Package XRS
    Shock Adjuster Knob. Package XRS
  • 126
    503193033 Shock Adjuster Knob. Package XRS without QAS
    Shock Adjuster Knob. Package XRS without QAS
  • 127
    503193037 Bushing
    Bushing
  • 128
    503193056 Knob Adjuster Ass'y. Model with QAS
    Knob Adjuster Ass'y. Model with QAS
  • 128
    503193025 Adjustment Knob Ass'y. Model with QAS
    Adjustment Knob Ass'y. Model with QAS
  • 129
    503193069 Link Ass'y
    Link Ass'y
  • 130
    503193101 Rubber Stopper
    Rubber Stopper
  • 131
    503192104 Black RH Spring, Square. Package XRS Europe
    Black RH Spring, Square. Package XRS Europe
  • 131
    503193159 Black RH Spring, Square. Except Package XRS Europe
    Black RH Spring, Square. Except Package XRS Europe
  • 131
    503192105 Black LH Spring, Square. Package XRS Europe
    Black LH Spring, Square. Package XRS Europe
  • 131
    503193158 Black LH Spring, Square. Except Package XRS Europe
    Black LH Spring, Square. Except Package XRS Europe
  • 132
    503193617 Rear Arm Ass'y. Model without QAS
    Rear Arm Ass'y. Model without QAS
  • 132
    503193618 Rear Arm Ass'y. Model with QAS
    Rear Arm Ass'y. Model with QAS
  • 133
    503193166 Plate. Model with QAS
    Plate. Model with QAS
  • 134
    503193227 Bolt M10 X 251MM
    Bolt M10 X 251MM
  • 135
    503193250 Spacer
    Spacer
  • 136
    503193372 Screw M8 X 90
    Screw M8 X 90
  • 137
    503193413 Plate. Model with QAS
    Plate. Model with QAS
  • 138
    503193435 Pivot Axle
    Pivot Axle
  • 139
    503193437 LH Hose Protector. Model with QAS
    LH Hose Protector. Model with QAS
  • 140
    503193438 RH Hose Protector. Model with QAS
    RH Hose Protector. Model with QAS
  • 141
    503193476 Connector Hose. Model with QAS
    Connector Hose. Model with QAS
  • 142
    503193477 Deep Black Wheel Ass'y, 141 mm
    Deep Black Wheel Ass'y, 141 mm
  • 142
    503191316 Black Wheel Ass'y, 141 mm. Package XRS
    Black Wheel Ass'y, 141 mm. Package XRS
  • 143
    503193485 Holder. Model with QAS
    Holder. Model with QAS
  • 144
    503193490 Master Cylinder Ass'y. Model with QAS
    Master Cylinder Ass'y. Model with QAS
  • 145
    503193777 Hydraulic Adjuster Ass'y. Model with QAS
    Hydraulic Adjuster Ass'y. Model with QAS
  • 146
    503193778 Actuator Ass'y. Model with QAS
    Actuator Ass'y. Model with QAS
  • 147
    503193779 Piston. Model with QAS
    Piston. Model with QAS
  • 148
    503193894 Casted Support
    Casted Support
  • 149
    503194156 Yellow - Runner 128''
    Yellow - Runner 128''
  • 149
    503193901 Noir - Rail 128''. Black-Black Model
    Noir - Rail 128''. Black-Black Model
  • 149
    503194221 RAIL *RUNNER
    RAIL *RUNNER
  • 150
    503193903 Rod Link
    Rod Link
  • 151
    503194136 AMORTISSEUR *REAR SHOCK. Package XRS
    AMORTISSEUR *REAR SHOCK. Package XRS
  • 151
    503194331 AMORTISSEUR *REAR SHOCK. Package XRS with QAS
    AMORTISSEUR *REAR SHOCK. Package XRS with QAS
  • 151
    503194332 AMORTISSEUR *REAR SHOCK. Package Blizzard
    AMORTISSEUR *REAR SHOCK. Package Blizzard
  • 152
    503194113 Protector. Model with QAS
    Protector. Model with QAS
  • 153
    503194202 Black Wheel Ass'y, 180 mm. Package XRS
    Black Wheel Ass'y, 180 mm. Package XRS
  • 154
    505072663 Leg Cushion
    Leg Cushion
  • 155
    516004751 Sticker Knob Adjuster. Model with QAS
    Sticker Knob Adjuster. Model with QAS
  • 156
    516004752 Shock Knob Adjustment Decal. Model with QAS
    Shock Knob Adjustment Decal. Model with QAS
  • 157
    516007816 Runner Decal
    Runner Decal
  • 158
    516004901 RH Block Sticker Decal
    RH Block Sticker Decal
  • 158
    516004900 LH Block Sticker Decal
    LH Block Sticker Decal
  • 160
    516004917 Adjustment Decal. Model with QAS
    Adjustment Decal. Model with QAS
  • 161
    516006369 Decal. Model with QAS
    Decal. Model with QAS
  • 162
    517225900 Flat Washer
    Flat Washer
  • 163
    572084800 Reinforcement Stopper
    Reinforcement Stopper
  • 164
    705600310 Copper Washer. Model with QAS
    Copper Washer. Model with QAS
  • 165
    705600628 Banjo Bolt. Model with QAS
    Banjo Bolt. Model with QAS
  • 166
    503194079 Rocker
    Rocker
  • 167
    207085586 Hex. Screw M8 X 55
    Hex. Screw M8 X 55
  • 168
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 170
    415093807 O-Ring. Package XRS
    O-Ring. Package XRS
  • 171
    415093806 Piston Ring. Package XRS
    Piston Ring. Package XRS
  • 172
    505070398 Air Valve. Package XRS
    Air Valve. Package XRS
  • 173
    505070399 Screw. Package XRS
    Screw. Package XRS
  • 174
    505070400 O-Ring. Package XRS
    O-Ring. Package XRS
  • 175
    415093804 O-Ring. Package XRS
    O-Ring. Package XRS
  • 176
    415093810 Bolt
    Bolt
  • 177
    415038700 O-Ring
    O-Ring
  • 178
    503193283 Central Shock
    Central Shock
  • 178
    503194071 Center Shock. Package XRS
    Center Shock. Package XRS
  • 179
    503193479 Deep Black Spring (Short). Package XRS
    Deep Black Spring (Short). Package XRS
  • 179
    503193837 Black Spring (Short). Package Blizzard
    Black Spring (Short). Package Blizzard
  • 180
    503193065 Black Spring (Short). Package XRS
    Black Spring (Short). Package XRS
  • 180
    503193067 Black Spring (Short)
    Black Spring (Short)
  • 181
    503194270 Spring Stopper
    Spring Stopper

Все узлы модели:
