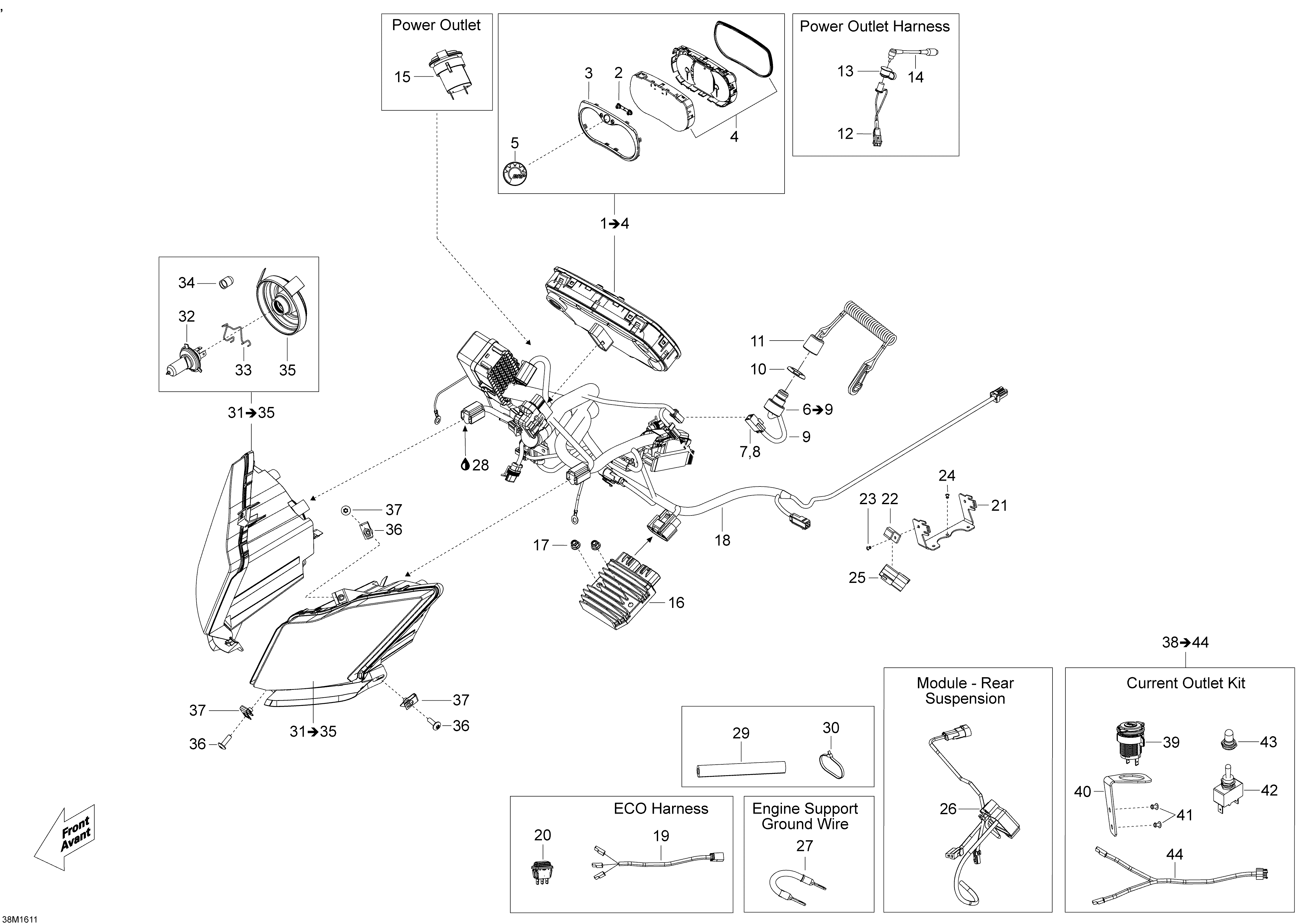

10- Electrical System для BRP Ski-Doo EXPEDITION - LE-SE 4-STROKE - 2016
-
№АртикулНазвание
-
1515177913 Speedometer Ass'y. Includes 1 To 4Speedometer Ass'y. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 Lens And SealLens And Seal
-
5516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
6515177249 Dess Switch. Includes 6 To 9Dess Switch. Includes 6 To 9
-
7515175232 Male TerminalMale Terminal
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9409902000 TubingTubing
-
10278002963 Safety Switch NutSafety Switch Nut
-
11515178146 DESS CapDESS Cap
-
11860201162 DESS Cap (Learning Key)DESS Cap (Learning Key)
-
12515177837 Power Outlet HarnessPower Outlet Harness
-
13572103300 CapCap
-
14515175851 ExtensionExtension
-
15710001248 DC Power OutletDC Power Outlet
-
16515177325 RegulatorRegulator
-
17233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
18515177939 Main Harness. Model-900 ACEMain Harness. Model-900 ACE
-
18515177937 Main Harness. Model-1200 4-TECMain Harness. Model-1200 4-TEC
-
19515177568 ECO HarnessECO Harness
-
20515177569 ECO Rocker SwitchECO Rocker Switch
-
21515177073 Fusebox SupportFusebox Support
-
22270000141 ClipClip
-
23293150037 RivetRivet
-
24390402200 Pop Rivet 3/16Pop Rivet 3/16
-
25710003006 HousingHousing
-
26515177125 Compressor Module. Model-SECompressor Module. Model-SE
-
27515176883 Ground WireGround Wire
-
2939066 Aluminum Coated Tube (150mm). Model-1200 4-TECAluminum Coated Tube (150mm). Model-1200 4-TEC
-
30414115200 Tie Rap 180mmTie Rap 180mm
-
30293750001 Tie-Rap 94mmTie-Rap 94mm
-
30293750002 Tie-Rap 130mmTie-Rap 130mm
-
31517304194 RH Headlamp. Includes 31 To 35RH Headlamp. Includes 31 To 35
-
31517304195 LH Headlamp. Includes 31 To 35LH Headlamp. Includes 31 To 35
-
32515176274 Halogen Bulb (60/55W, 12V)Halogen Bulb (60/55W, 12V)
-
34515176498 CapCap
-
35515176499 CoverCover
-
36250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
37250100113 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
38860200285 Current Outlet Kit. Includes 38 To 44, Model-SECurrent Outlet Kit. Includes 38 To 44, Model-SE
-
39710001248 DC Power Outlet. Model-SEDC Power Outlet. Model-SE
-
40515176801 Bracket. Model-SEBracket. Model-SE
-
4136108 Rivet. Model-SERivet. Model-SE
-
42410110700 Switch Grip. Model-SESwitch Grip. Model-SE
-
43515175281 Switch Cover. Model-SESwitch Cover. Model-SE
-
44515176802 Harness. Model-SEHarness. Model-SE
