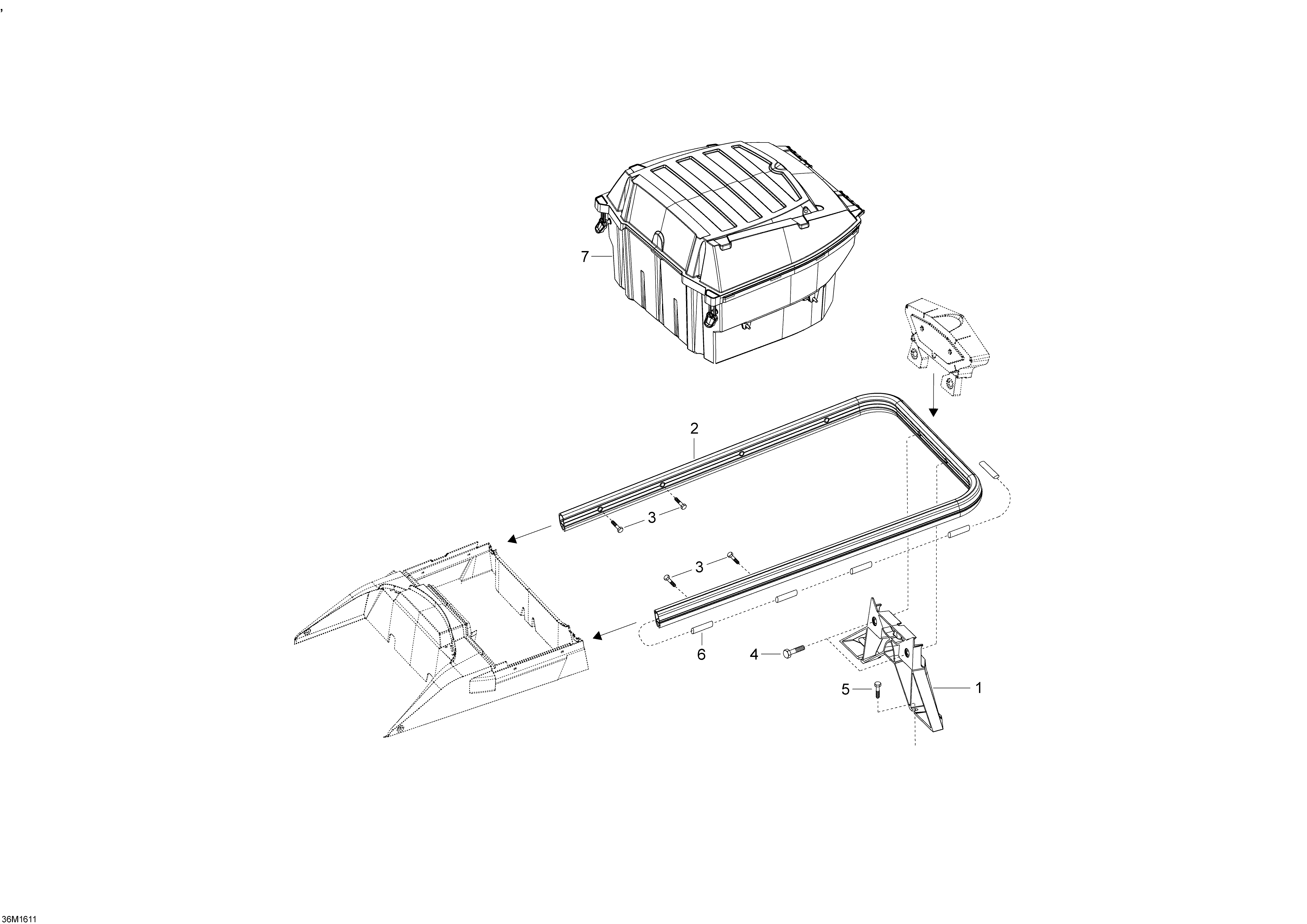

09- Cargo Rack для BRP Ski-Doo EXPEDITION - LE-SE 4-STROKE - 2016
-
№АртикулНазвание
-
1511000559 Rear Light SupportRear Light Support
-
2511000563 Clear Anod. Rack Bar. Model-LEClear Anod. Rack Bar. Model-LE
-
2511000709 Black Anod. Rack Bar. Model-SEBlack Anod. Rack Bar. Model-SE
-
3207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
4207663054 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
5207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
6511000657 Support HoseSupport Hose
-
7860200395 Cargo Box Ass'y. Model-SECargo Box Ass'y. Model-SE
