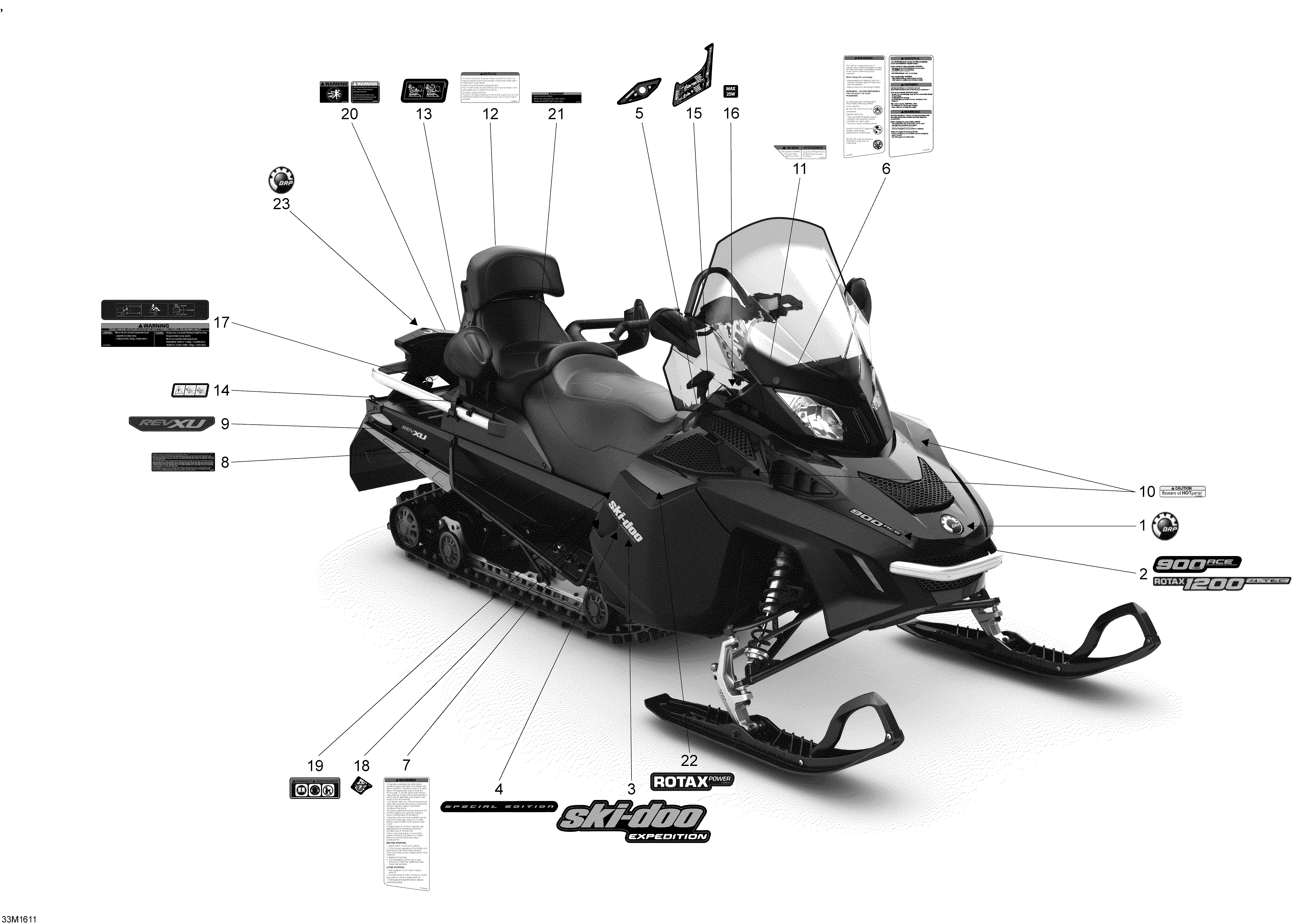

09- Decals для BRP Ski-Doo EXPEDITION - LE-SE 4-STROKE - 2016
-
№АртикулНазвание
-
1516006888 BRP LogoBRP Logo
-
2516006454 Rotax 900 ACE Hood DecalRotax 900 ACE Hood Decal
-
2516004226 Rotax 1200 4-TEC Hood DecalRotax 1200 4-TEC Hood Decal
-
3516005038 RH Side Panel DecalRH Side Panel Decal
-
3516005039 LH Side Panel DecalLH Side Panel Decal
-
4516005040 Special Edition Side Panel Decal. Model-SESpecial Edition Side Panel Decal. Model-SE
-
5516004309 Power Outlet Switch Decal. Model-SEPower Outlet Switch Decal. Model-SE
-
6516006403 Instruction/Warning Decal (FI/SWE/EN). Model-EuropeInstruction/Warning Decal (FI/SWE/EN). Model-Europe
-
6516004652 Instruction/Warning Decal. Model-North AmericaInstruction/Warning Decal. Model-North America
-
7516004653 Instruction/Warning Decal. Model-North AmericaInstruction/Warning Decal. Model-North America
-
9516007167 REV XU DecalREV XU Decal
-
10516006903 Hot Parts DecalHot Parts Decal
-
11516005683 Warning Decal. Model-North AmericaWarning Decal. Model-North America
-
12516005682 Warning Decal. Model-North AmericaWarning Decal. Model-North America
-
13516006873 Backseat Handle DecalBackseat Handle Decal
-
14516005111 Backseat Instruction DecalBackseat Instruction Decal
-
15516004305 Transmission Instruction DecalTransmission Instruction Decal
-
16516003918 Power Outlet Decal. Model-EuropePower Outlet Decal. Model-Europe
-
17516003886 Instruction/Warning Decal. Model-EuropeInstruction/Warning Decal. Model-Europe
-
17516004960 Instruction/Warning Decal. Model-North AmericaInstruction/Warning Decal. Model-North America
-
18516003925 Oil Checking Decal. Model-EuropeOil Checking Decal. Model-Europe
-
19516003027 Europe Pictogram Decal. Model-EuropeEurope Pictogram Decal. Model-Europe
-
20516007584 Warning Decal. Model-EuropeWarning Decal. Model-Europe
-
20516004650 Warning Decal. Model-North AmericaWarning Decal. Model-North America
-
21516004961 Warning Decal. Model-North AmericaWarning Decal. Model-North America
-
22516006331 Rotax Power DecalRotax Power Decal
-
23516006887 BRP LogoBRP Logo
