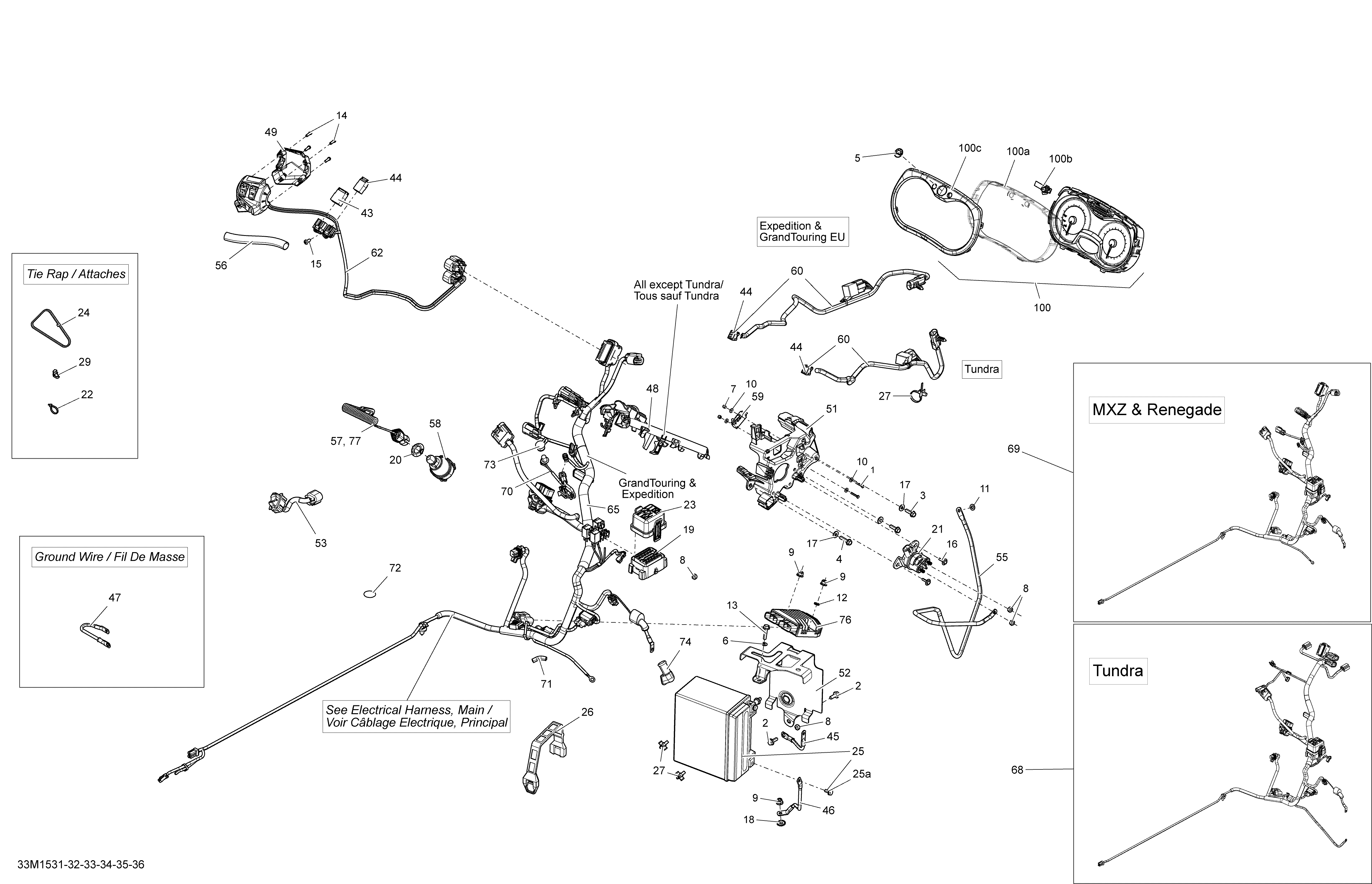

10- Electrical System _33M1533 для BRP Ski-Doo Grand Touring Sport 600ACE XS137 - 2015

  • №
    Артикул
    Название
  • 1
    207132044 Hex Screw M3 X 20
    Hex Screw M3 X 20
  • 2
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 3
    210262040 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 4
    210262580 Hex. Flanged Forming Screw M6 X 25
    Hex. Flanged Forming Screw M6 X 25
  • 5
    219902677 Logo BRP, 20 mm
    Logo BRP, 20 mm
  • 6
    224061121 Flat Washer
    Flat Washer
  • 7
    232531423 Elastic Stop Nut M3
    Elastic Stop Nut M3
  • 8
    232561434 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 9
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 10
    234032600 Flat Washer M3, Stainless
    Flat Washer M3, Stainless
  • 11
    234061410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 13
    250000504 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 14
    250000671 Torx Screw
    Torx Screw
  • 15
    250000690 Pan Screw Forming, 7500C
    Pan Screw Forming, 7500C
  • 16
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 17
    250200039 Flat Washer
    Flat Washer
  • 18
    250200041 Lock Washer Serrated M6
    Lock Washer Serrated M6
  • 19
    278002824 Case Ass'y
    Case Ass'y
  • 20
    278002963 Safety Nut
    Safety Nut
  • 21
    278003012 Starter Relay
    Starter Relay
  • 22
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 23
    515177671 Fuse Box Cover
    Fuse Box Cover
  • 24
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 25
    415129898 Lead Battery 18 Amperes. Includes 25 To 25a
    Lead Battery 18 Amperes. Includes 25 To 25a
  • 25a
    250000282 Battery Bolt Kit
    Battery Bolt Kit
  • 29
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 43
    515175662 Male Terminal Housing, 6 Circuits
    Male Terminal Housing, 6 Circuits
  • 44
    515175846 Male Terminal Housing, 4 Circuits
    Male Terminal Housing, 4 Circuits
  • 45
    515176358 Ground Wire
    Ground Wire
  • 47
    515177014 Ground Wire
    Ground Wire
  • 48
    515177134 Connector Plate
    Connector Plate
  • 49
    515177147 Housing Plate
    Housing Plate
  • 51
    515177347 Plate
    Plate
  • 52
    515177348 Battery Support
    Battery Support
  • 53
    515177394 Switch
    Switch
  • 55
    515177427 Battery Wire
    Battery Wire
  • 56
    415129879 Protector Tube
    Protector Tube
  • 57
    515177457 Key
    Key
  • 58
    515177458 Switch
    Switch
  • 59
    515177460 Switch Ass'y
    Switch Ass'y
  • 60
    515177646 Fan Harness
    Fan Harness
  • 62
    515177676 Housing
    Housing
  • 65
    515177752 Main Harness Ass'y
    Main Harness Ass'y
  • 70
    515177837 Visor Harness
    Visor Harness
  • 71
    414506600 Trim
    Trim
  • 72
    518325560 Adhesive Patch
    Adhesive Patch
  • 73
    572103300 Cap
    Cap
  • 74
    710000495 Protector Cap
    Protector Cap
  • 76
    710001103 Voltage Regulator. Model-North America
    Voltage Regulator. Model-North America
  • 76
    515177325 Voltage Regulator. Model Europe
    Voltage Regulator. Model Europe
  • 77
    860201162 Key
    Key
  • 100
    515177649 Speedometer. Model-North America, Includes 100 To 100c
    Speedometer. Model-North America, Includes 100 To 100c
  • 100
    515177806 Speedometer. Model Europe, Includes 100 To 100c
    Speedometer. Model Europe, Includes 100 To 100c
  • 100a
    415129349 Lens
    Lens
  • 100b
    415129355 Speedometer Button
    Speedometer Button
  • 100c
    415129370 Gauge Ring
    Gauge Ring
