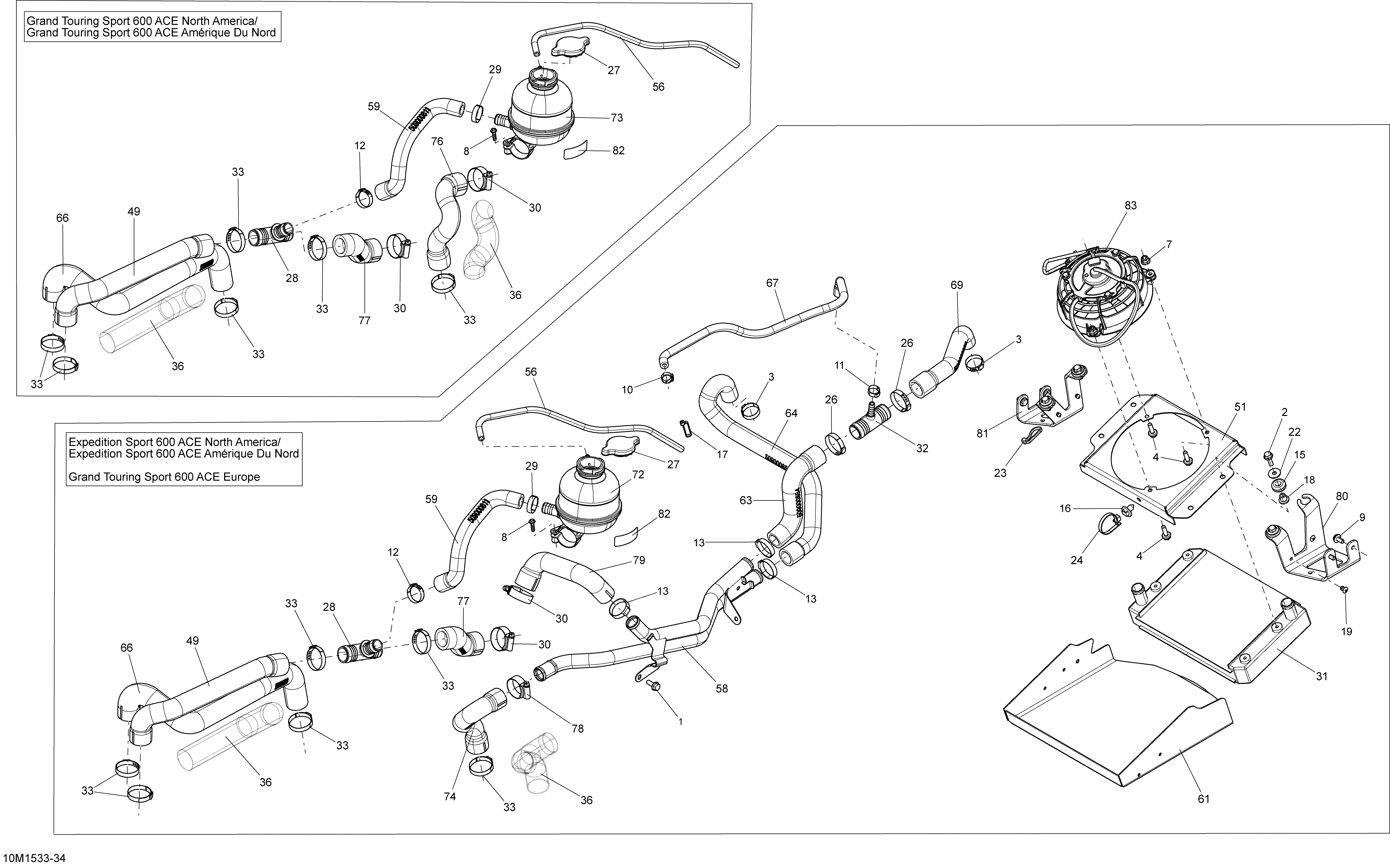

01- Cooling System _10M1533 для BRP Ski-Doo Grand Touring Sport 600ACE XS137 - 2015
-
№АртикулНазвание
-
1207561634 Hex. Flanged Screw M6 X 16, Scotch Grip. Model-EuropeHex. Flanged Screw M6 X 16, Scotch Grip. Model-Europe
-
2207562044 Flanged Screw M6 X 20, Scotch Grip. Model-EuropeFlanged Screw M6 X 20, Scotch Grip. Model-Europe
-
3293650099 Crimp Clamp. Model-EuropeCrimp Clamp. Model-Europe
-
4207662044 Hex. Flanged Screw M6 X 20. Model-EuropeHex. Flanged Screw M6 X 20. Model-Europe
-
7233261414 Hex. Flanged Elastic Nut M6. Model-EuropeHex. Flanged Elastic Nut M6. Model-Europe
-
8241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
9250000574 Hex. Flanged Screw M6 X 12. Model-EuropeHex. Flanged Screw M6 X 12. Model-Europe
-
10293650025 Oetiker Gear Clamp. Model-EuropeOetiker Gear Clamp. Model-Europe
-
11293650047 Crimp Clamp. Model-EuropeCrimp Clamp. Model-Europe
-
12293650099 Crimp ClampCrimp Clamp
-
13293650141 Oetiker Gear Clamp. Model-EuropeOetiker Gear Clamp. Model-Europe
-
15293720053 Grommet. Model-EuropeGrommet. Model-Europe
-
16293730040 Mount Dart. Model-EuropeMount Dart. Model-Europe
-
17293750002 Tie-Rap 142 mm. Model-EuropeTie-Rap 142 mm. Model-Europe
-
18293900100 Bushing. Model-EuropeBushing. Model-Europe
-
19390909100 Avex Rivet. Model-EuropeAvex Rivet. Model-Europe
-
22250200082 Flat Washer. Model-EuropeFlat Washer. Model-Europe
-
23414115200 Tie-Rap 180 mm. Model-EuropeTie-Rap 180 mm. Model-Europe
-
24414115200 Tie-Rap 180 mm. Model-EuropeTie-Rap 180 mm. Model-Europe
-
26509000162 Gear Clamp. Model-EuropeGear Clamp. Model-Europe
-
27509000180 Pressure CapPressure Cap
-
28509000372 T-FittingT-Fitting
-
29509000442 Oetiker Gear ClampOetiker Gear Clamp
-
30509000443 Aba Gear ClampAba Gear Clamp
-
31509000488 Radiator. Model-EuropeRadiator. Model-Europe
-
32509000510 T-Fitting. Model-EuropeT-Fitting. Model-Europe
-
33509000529 Oetiker Gear ClampOetiker Gear Clamp
-
36509000513 Protector Tube 32 mmProtector Tube 32 mm
-
49509000697 Radiator Return HoseRadiator Return Hose
-
51509000714 Fan Support. Model-EuropeFan Support. Model-Europe
-
56509000775 HoseHose
-
58509000800 Water Pipe. Model-EuropeWater Pipe. Model-Europe
-
59509000811 Filling HoseFilling Hose
-
61509000835 Air Inlet Deflector. Model-EuropeAir Inlet Deflector. Model-Europe
-
63509000854 Radiator Hose. Model-EuropeRadiator Hose. Model-Europe
-
64509000855 Radiator Hose. Model-EuropeRadiator Hose. Model-Europe
-
66509000859 Radiator HoseRadiator Hose
-
67509000860 Breather Hose. Model-EuropeBreather Hose. Model-Europe
-
69509000862 Radiator Hose. Model-EuropeRadiator Hose. Model-Europe
-
72509000875 Cooling Tank. Model-EuropeCooling Tank. Model-Europe
-
73509000881 Cooling Tank. Model-North AmericaCooling Tank. Model-North America
-
74509000888 Engine Outlet Hose. Model-EuropeEngine Outlet Hose. Model-Europe
-
76509000913 Engine Outlet Hose. Model-North AmericaEngine Outlet Hose. Model-North America
-
77509000921 Radiator HoseRadiator Hose
-
78509000931 Gear Clamp. Model-EuropeGear Clamp. Model-Europe
-
79509000932 Engine Outlet Hose. Model-EuropeEngine Outlet Hose. Model-Europe
-
80509000933 Support. Model-EuropeSupport. Model-Europe
-
81509000934 Support. Model-EuropeSupport. Model-Europe
-
82516005904 Warning DecalWarning Decal
-
83709200230 Fan. Model-EuropeFan. Model-Europe
