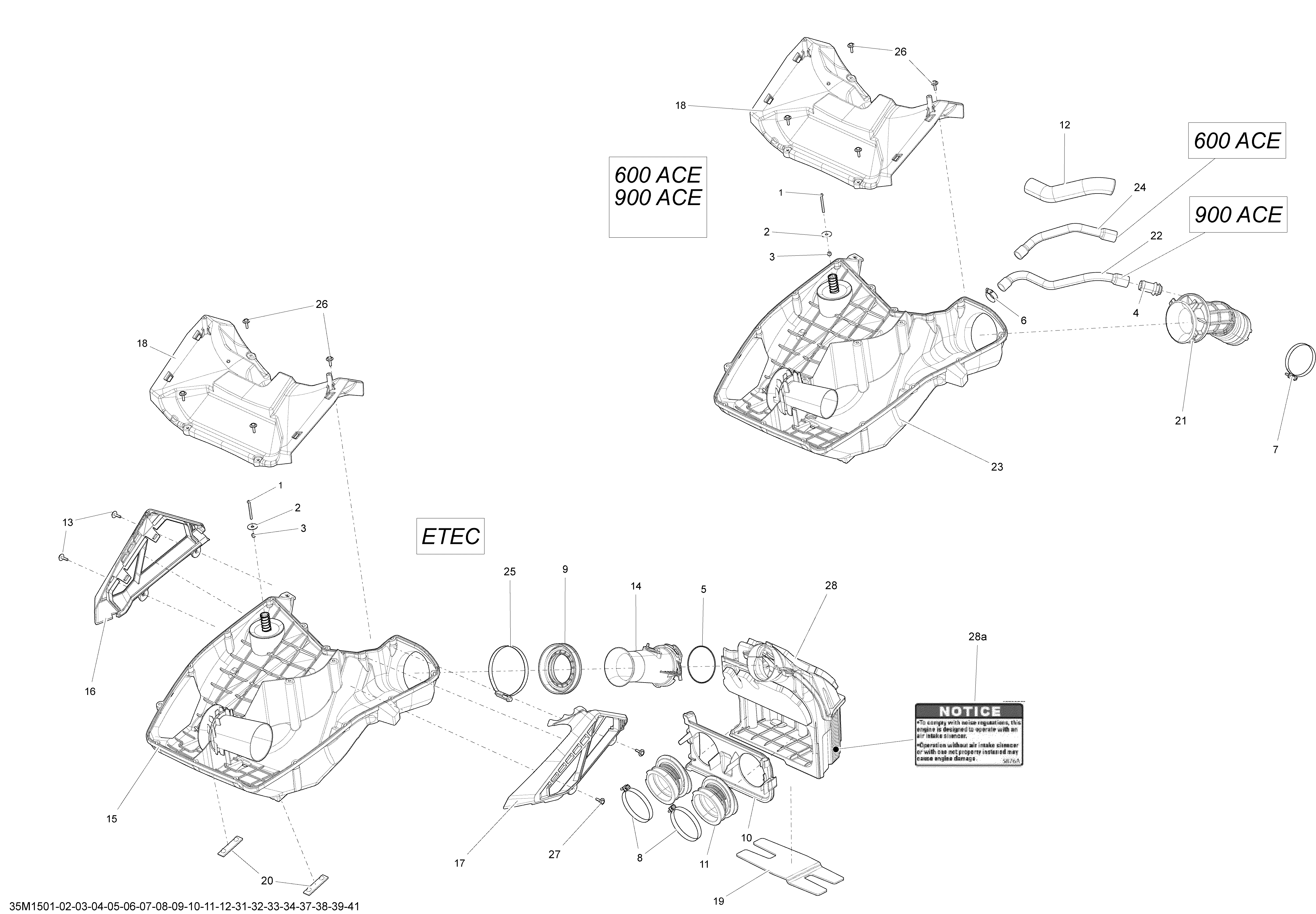

02- Air Intake System _35M1533 для BRP Ski-Doo Grand Touring Sport 600ACE XS137 - 2015
-
№АртикулНазвание
-
1205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
2224060201 Flat WasherFlat Washer
-
3232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
4273000234 BreatherBreather
-
6293650172 Tridon Gear ClampTridon Gear Clamp
-
7293650229 Gemi ClampGemi Clamp
-
12508000648 Tube IsolatorTube Isolator
-
13250000725 Screw M4 X 16Screw M4 X 16
-
16508000730 RH Air FilterRH Air Filter
-
17508000731 LH Air FilterLH Air Filter
-
18508000732 Air DuctAir Duct
-
20508000744 StopperStopper
-
21508000745 FluteFlute
-
23508000747 Secondary Chamber Ass'ySecondary Chamber Ass'y
-
24508000774 Formed Vent HoseFormed Vent Hose
-
26250000725 Screw M4 X 16Screw M4 X 16
-
27250000725 Screw M4 X 16Screw M4 X 16
